| Projection Method |
Front / rear / ceiling mount |
| Driving Method |
Epson Poly-silicon TFT Active Matrix |
| Pixel Number |
1,024,000 (1280 x 800) x 3 |
| White Light Output |
3700 lumens (ISO 21118 Standard) |
| Color Light Output |
3700 lumens |
| Aspect Ratio |
16:10 |
| Native Resolution |
1280 x 800 (WXGA) |
| Resize |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA),1152 x 864 (SXGA), 1440 x 900 (WSXGA), 1680 x 1050 (WSXGA+), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA) |
| Lamp Type |
E-TORL 275 W UHE |
| Lamp Life |
ECO Mode: Up to 4000 hours
Normal Mode: Up to 3000 hours |
| Throw Ratio Range |
1.38 - 2.24 |
| Size (projected distance) |
30" - 300" (0.84 - 8.4 m) |
| Keystone Correction |
Vertical: ±30 degrees
Horizontal: ±30 degrees |
| USB Plug 'n Play |
PC and Mac compatible |
| Contrast Ratio |
Up to 2500:1 |
| Color Reproduction |
16.77 million colors |
| F-number |
1.51 - 1.99 |
| Zoom Ratio |
Optical zoom 1.0 - 1.6 |
| Display Performance |
NTSC: 480 line
PAL: 560 line |
| Input Signal |
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |

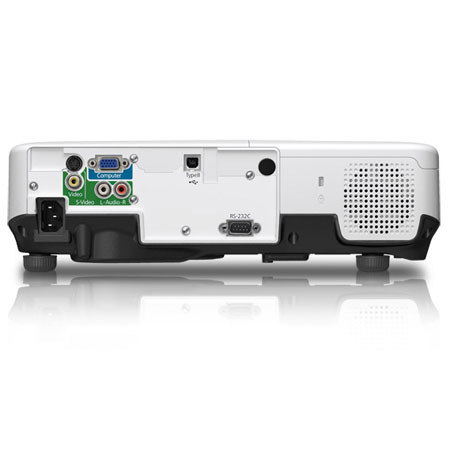

| Interfaces |
Computer / Component video: D-sub 15 pin x 1
S-video: Mini DIN x 1
Composite video: RCA x 1
USB connector: Type B x 1 (USB display, audio and mouse / keyboard control)
Serial: RS-232c x 1 |
| Speaker |
5 W (Mono) |
| Operating Temperature |
41 deg. to 95 deg. F (5 deg. to 35 deg. C) |
| Power Supply Voltage |
100 - 240 V ±10%, 50/60 Hz |
| Power Consumption |
ECO mode: 301 W
Normal mode: 373 W |
| Fan Noise |
ECO mode: 35 dB
Normal mode: 39 dB |
| Operating Angle |
Right / Left: ±30 degrees
Upper / Lower: ±30 degrees |
| Operating Distance |
20' (6 m) |
| Dimensions (W x D x H) |
Including feet: 13.6" x 10.4" x 4.2" / 34.54 x 26.41 x 10.66cm
Excluding feet: 13.6" x 10.4" x 3.7"/ 34.54 x 26.41 x 9.39cm |
| Weight |
7.25 lb / 3.28kg |
