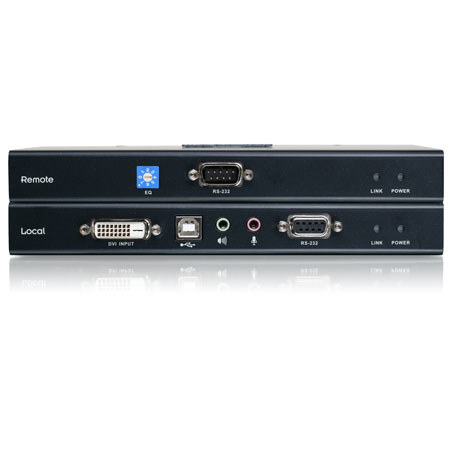

Iogear GCE616U Dual Link DVI USB Console Extender, TAA Compliance

SKU: IGCE616U MFR: GCE616U
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$619.00 $25 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the Iogear GCE616U

The Iogear GCE616U Dual Link DVI USB Console Extender (TAA Compliance) allows a user to access a DVI/USB computer system from up to 200' (60m) away and delivers excellent resolution for up to 2560 x 1600 at 60 Hz at 130' (40 m); 1920 x 1200 at 60 Hz at 100' (30 m); and 1024 x 768 at 60 Hz at 200' (60m). The number of computers to be accessed remotely can be expanded by deploying a compatible DVI KVM switch.

It is perfect for use in many types of installation where you need to have easy access to the console, but at the same time concerned about the environment such as the dust and dirt of the factory floor, or the harsh environmental a construction site, or bad whether. It uses two CAT5e cables, one dedicated to transmit the DVI signal, the other for HDCP, RS-232 and microphone signals. It also supports stereo speakers and microphone, as well as RS-232 signals.

Iogear GCE616U Includes

  • Iogear GCE616U Local Unit
  • GCE611U Remote Unit
  • 1.8m USB DVI-D Dual Link KVM Cable Set
  • 2 x Power Adapters
  • Mounting Kit
  • User Manual
  • Iogear 3 Year Warranty

Iogear GCE616U Features

  • Access a DVI computer or DVI KVM installation from up to 200' (60 m) away
  • Manual compensation control to adjust signal strength in order to compensate for distance
  • RS-232 serial ports: connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (supporting Baud Rate up to 115200 bps)
  • HDCP compliant
  • Audio Enabled: supports stereo speakers and microphone
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Supports Wide Screen formats
  • Superior video quality of up to 2560 x 1600 at 60 Hz at 130' (40 m); 1920 x 1200 at 60 Hz at 30 m; 1024 x 768 at 60 Hz at 60 m - get an excellent, crisp image on your screen over long distance transmissions
  • Hot pluggable
  • Easy to install - no software required - connecting cables to the devices is all it takes
  • Firmware upgrade

Iogear GCE616U Specifications

Maximum Video Resolution 2560x1600 at 60Hz
Graphic Mode WQXGA
Maximum Operating Distance 197ft
USB Yes
DVI Yes
Status Indicators Link activity, power
Min Operating Temperature 32 deg.F
Max Operating Temperature 122 deg.F
Humidity Range Operating 0 - 80% (non-condensing)
Number of Network (RJ-45) Ports 4
Network (RJ-45) Yes
Number of USB Ports 3
Number of DVI Ports 2
Number of Computers Supported 1
Connectivity Technology Wired
Form Factor Rack-mountable
Packaged Quantity 1
Headphone Yes
Microphone Yes
Dimensions 1x3.36x8" (2.54x8.53x20.32cm)
Weight 3.95lbs (1.79kg)
