Iogear

Iogear LCD Console Drawer and 8 Port PS/2 KVM Bundle

SKU: IGGCL138 MFR: GCL138
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,099.95 List Price

Our Price

$949.00 $38 per week
Free Shipping
Qty:
Add to Wishlist

About this item

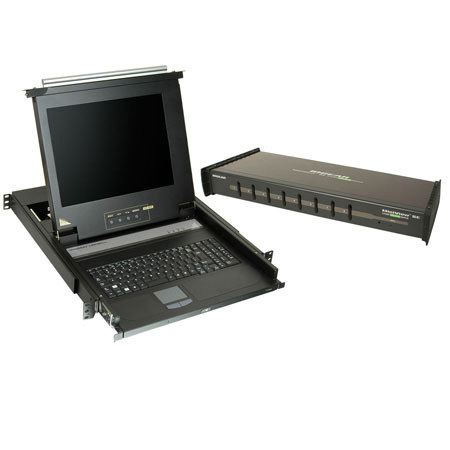

The LCD Console Drawer and 8-Port PS/2 KVM Bundle from Iogear is a hardware bundle with an 8-port PS/2 KVM switch and rackmount LCD display and control console. This is an excellent option for system administrators who would like to control up to eight servers in a single equipment rack from a single console.

The LCD Console Drawer installs in a standard equipment rack. If features a folding LCD panel as well as a keyboard with integrated trackpad. It can be used in conjunction with the bundled KVM switch to control up to eight computers. The LCD monitor is 15" with a 1024 x 768 resolution.

The rackmount KVM switch allows you to connect and control up to eight computers with VGA monitor and PS/2 interface connections. It is an ideal choice for server administrators.

What's Included With This Item

  • Iogear LCD Console Module with Standard Rack Mounting Kit
  • Custom KVM Cable
  • Power Cord
  • 2 x Rack Mounting Kit
  • User Manual
  • MiniView Ultra KVM Switch
  • Power Adapter
  • Installation Manual
  • Quick Start Guide
  • Warranty Registration Card
  • Iogear 3 Year Warranty

Key Features

  • Integrated KVM console featuring a 17" LCD monitor, keyboard and touchpad
  • 1024 x 768 resolution provides a sharp video display
  • Adjustable depth to fit different sizes of racks
  • Control up to 8 computers and expand to 512 computers by connecting multiple GCS138s together
  • On Screen Display provides a convenient method for accessing the computers
  • Connected computers can be added or removed from the setup without disturbing the other computers
  • Keyboard/mouse translation allows PS/2 peripherals to control both PS/2 and serial-based computers
  • Easy to install: No software required
  • Built in AutoScan mode
  • LEDs allow for easy status monitoring

Technical Specs

Max Computer Connections 8
PC Connectors 16x PS/2
8x VGA
Console Connectors 2x PS/2
1x VGA
Video Resolution 1024 x 768 (LCD resolution)
Scan Interval Variable (1-255 seconds)
Port Selection Hot Keys
Enclosure 1U Rackmount
System Requirements Computers with PS/2 and VGA connections
Equipment rack strongly recommended
Power Requirements AC: 120 VAC
