Iogear

Iogear 16-Port PS/2 USB Combo KVM and 17" Rack Mount LCD Bundle

SKU: IGGCL1716 MFR: GCL1716
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,499.99 List Price

Our Price

$1,269.99 $51 per week
Qty:
Add to Wishlist

About this item

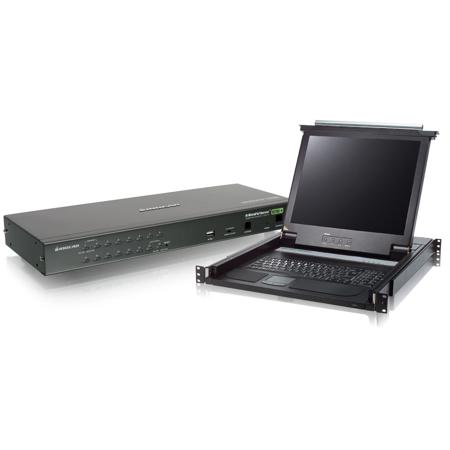

The 16-Port PS/2 USB Combo KVM and 17" Rack Mount LCD Bundle from Iogear is a hardware bundle with a 16-port PS/2 USB Combo KVM switch and rackmount LCD display and control console. This is an excellent option for system administrators who would like to control up to 16 servers in a single equipment rack from a single console.

What's Included With This Item

  • Iogear 17" Rack Mount LCD
  • 2 x Custom KVM Cable Sets (1 USB and 1 PS/2)
  • GCS1716 and 16-Port Combo KVM with Standard Rack Mounting Kit
  • Console Cable
  • Firmware Upgrade Cable
  • Grounding Wire
  • Foot Pad Set (4 Pads)
  • Power Adapter
  • User Manual
  • Warranty Card
  • Iogear 3 Year Warranty

Key Features

  • Integrated KVM console featuring a 17" LCD monitor, keyboard and touchpad
  • 1024 x 768 resolution on 17" rack mount LCD provides a sharp video display
  • Adjustable depth to fit different sizes of racks
  • Multi platform OS support - Windows, Mac, Sun Solaris and Linux
  • Easy to operate: Computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
  • Cascade up to 2 levels: Control up to 256 computers from a single console
  • Security: 2 level password protection for OSD
  • Maximum video resolution: Up to 2048 x 1536
  • Front USB Port: Fully compliant with USB 1.1 for system upgrades and shared peripherals
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully Supports DDC2B

Technical Specs

Direct Connection 16
Daisy Chain or Cascading 256 (via Cascade)
Port Selection Hotkeys, OSD, Button
Console 1 x SPHD-18 Male (Yellow)
Computer/KVM 16 x SPHD-15 Female (Yellow)
Power 1 x DC Jack
USB 1 x USB 1.1 Type A Female
Reset Switch 1 x Semi-Recessed Push Button
F/W Upgrade 1 x Slide Switch
Port Selection 16 x Push Button
Keyboard/Mouse PS/2, USB
Video Resolution VGA 2048x1536, DDC2B (for KVM); 1024x768 (for LCD)
Voltage DC 5.3V
Amps 2.4A
Scan Interval 1-255 sec
Operation Temperature 0 to 50 deg.C
Storage Temperature -20 to 60C
Humidity 0 to 80% RH, Non-condensing
Housing Case: Metal
Power Requirements AC: 120VAC
System Requirements Computers with PS/2 or USB and VGA connections
Equipment rack strongly recommended
