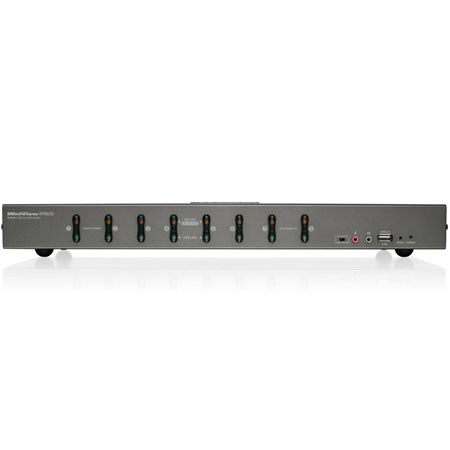

IOGEAR 8-Port DVI KVMP Switch with VGA Support, 2048 x 1536 VGA Resolution
See all Iogear items

IOGEAR 8-Port DVI KVMP Switch with VGA Support, 2048x1536 VGA Resolution

SKU: IGGCS1108
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

IOGEAR GCS1108 Specifications

  • CPU Connectors: Monitor

    8 x DVI-I ports (female)

  • CPU Connectors: Microphone

    8 x Microphone jack

  • CPU Connectors: Audio

    8 x Stereo earphone jack

  • CPU Connectors: Keyboard & Mouse

    8 x USB Type B sockets

  • Console Connectors: Mouse

    1 x USB Type A socket

  • Console Connectors: Keyboard

    1 x USB Type A socket

  • Console Connectors: Monitor

    1 x VGA port (female) / 1 x DVI-I port (female)

  • Console Connectors: Microphone

    2 x Microphone jack (1 x front panel, 1 x rear panel)

  • Console Connectors: Audio

    2 x Stereo earphone jack (1 x front panel, 1 x rear panel)

  • Selected LED

    8 x Orange

  • On Line LED

    8 x Orange

  • USB Peripherals LED

    8 x Green

  • Power On LED

    1 x Dark Green

  • Port Selection

    Front Panel Switches; Hotkey

  • Video Resolution

    DVI: 1920 x 1200; VGA: 2048 x 1536

  • Scan Interval

    1-255 secs (Default: 5 secs)

  • Emulation: Keyboard

    USB

  • Emulation: Mouse

    USB

  • Computer Connections: Direct

    8

  • Daisy Chain or Cascading

    Up to 512 (via Cascade)

  • Operating Temperature

    0 - 50 deg C

  • Storage Temperature

    -20 - 60 deg C

  • Humidity

    0 - 80% RH

  • Peripheral Sharing

    2 x USB 2.0

  • Requirements

    Console:
    1 DVI display
    VGA display (will need DVI-I cable on KVM ports to display analog signal)
    1 set of USB keyboard and mouse
    Computers: 1 DVI port
    or 1 VGA port
    USB port
    Operating Systems:
    Windows XP, Windows Vista (32-bit / 64-bit)
    7 (32-bit / 64-bit)
    Mac OS X v10.3.9 or later
    Sun Solaris
    Linux

  • Dimensions (H x D x L)

    1.75" x 6.3" x 17.2" / 44.45 x 160.02 x 436.88 mm

  • Weight

    With Accessories: 8.8 lbs / 3.99 kg
    Without Accessories: 6.4 lbs / 2.90 kg

About IOGEAR GCS1108

The Iogear 8-Port DVI KVMP Switch is a control unit that allows access and control of up to 8 computers from a single USB keyboard, USB mouse and dual-monitor (DVI-I and VGA) console. It can be cascaded to three levels - allowing up to 73 GCS1108s to control up to 512 computers - all from the original single console. In addition, GCS1108 comes with Iogear's Video DynaSync technology to optimize the display resolution. Iogear DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers.

Switching between computers can be easily accomplished either by manually pressing the front panel push buttons, entering hotkey combinations from the keyboard, or via on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

GCS1108 provides 2.1 stereo audio and microphone support, as well as multimedia keyboard support.

IOGEAR GCS1108 Features

  • One USB console controls eight DVI or VGA computers
  • Supports both digital (DVI), analog (DVI) video and analog (VGA)
  • Superior video quality: 1920 x 1200 (Single Link DVI), 2048 x 1536 (VGA); DDC2
  • Supports widescreen resolutions
  • Multiplatform support - Windows, Linux, Mac, Sun
  • Computer selection via front panel pushbuttons, hotkeys and on-screen display (OSD)
  • Includes two USB 2.0 peripheral sharing ports
  • Independent switching of KVM and USB focus
  • Two-level (Administrator/User) password authorization for enhanced security protection
  • Cascadable to three levels - control up to 512 computers
  • IOGEAR's DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
  • Audio enabled - Full bass response provides a rich experience for 2.1 channel surround sound systems
  • Complete keyboard emulation for error-free booting
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Mac/Sun keyboard support and emulation
  • Auto Scan Mode for monitoring all computers
  • Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously
  • Firmware upgradable
  • HDCP compatible
  • Console audio ports on front panel for easy access

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • IOGEAR 8-Port DVI KVMP Switch
  • 2 x Custom USB DVI KVM Cable Sets
  • 1 x Firmware Upgrade Cable
  • 1 x Power Adapter
  • 1 x Foot Pad Set (4 pcs)
  • 1 x User Manual
  • 1 x Rack Mounting Kit
  • IOGEAR 3 Year Warranty
