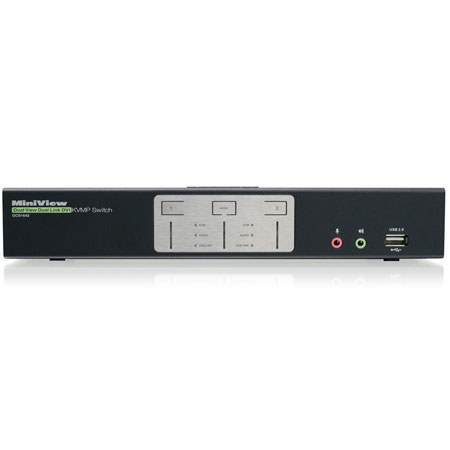

IOGEAR 2 Port DualView Dual-Link DVI KVMP Switch
See all Iogear items

IOGEAR 2 Port DualView Dual-Link DVI KVMP Switch with Audio

SKU: IGGCS1642
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

IOGEAR 2 Port DualView Dual-Link DVI KVMP Switch Specifications

  • Computer Connections

    Direct: 2

  • Port Selection

    Hotkeys or Pushbutton

  • Console Connectors

    Monitor: 2 x Dual Link DVI-I Female
    Keyboard: 1 x USB Type A Female
    Mouse: 1 x USB Type A Female
    Audio: 1 x Mini Stereo Jack Female (Green)
    Microphone: 1 x Mini Stereo Jack Female (Pink)

  • CPU Connectors

    Monitor: 4 x Dual Link DVI-I Female
    Keyboard & Mouse: 2 x USB Type B Female
    Audio: 2 x Mini Stereo Jack Female (Green)
    Microphone: 2 x Mini Stereo Jack Female (Pink)

  • Power Connections

    1 x DC Jack

  • Connectors

    USB: 2 x USB Type A Female

  • LEDs

    Mode: 1 (Orange)
    KVM: 2 (Green)
    Audio: 2 (Green)
    USB Peripherals: 2 (Green)

  • Emulation

    Keyboard: USB
    Mouse: USB

  • Video Resolution

    Single Link DVI: 1920x1200; Dual Link DVI: 2650x1600

  • Scan Interval

    1-99 seconds (5 seconds by default)

  • Power

    Voltage: DC 5.3V
    Amps: 2.4A

  • Operation Temperature

    0-50deg.C

  • Storage Temperature

    -20-60deg.C

  • Humidity

    0-80% RH, Non-condensing

  • Dimensions (W x H x D)

    10.2 x 1.7 x 2.9" (26 x 4.4 x 7.45 cm)

  • Weight

    2 lb (0.9 kg)

0 Accessories for IOGEAR 2 Port DualView Dual-Link DVI KVMP Switch with Audio

About IOGEAR 2 Port DualView Dual-Link DVI KVMP Switch

Iogear's GCS1642 2-Port DualView DVI KVMP Switch marks a leap in KVM functionality by combining IOGEAR's DynaSync with the widescreen graphics resolution of today's 30+ inch monitors, supporting DualView / Dual-Link DVI, 2560 x 1600 (higher than 1080p HD) and 3D graphics. Two DualView / Dual-Link display computers can be accessed and controlled from a single console running dual-displays.

The GCS1642 also features two USB 2.0 peripheral ports for asynchronously sharing USB devices between your computers. A powered USB hub may be attached to the peripheral ports for added functionality. Audio and microphone support makes sharing speakers and a microphone a convenience for the users which serves as an extra value.

The IOGEAR's DynaSync remembers your monitor's ideal resolution and refresh rate (EDID), making it possible to boot all your computers simultaneously, switch back and forth between computers and still maintain the ideal video settings of the monitor.

The GCS1642 offers an out-of-box solution including all cabling required for "Set-up and Go"!

IOGEAR 2 Port DualView Dual-Link DVI KVMP Switch Features

  • DualView Dual-Link DVI support - Share 2 DVI monitors with a single keyboard and mouse along 2 computers
  • High resolution - Up to 2560 x 1600
  • Supports 3D graphics and gaming
  • Multi OS platform support
  • 2-portUSB 2.0hub for peripherals sharing
  • Asynchronous hotkey switching between KVM focus, USB peripheral and Audio ports
  • IOGEAR's DynaSync reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
  • HDCP Compliant
  • Audio enabled - Microphone support and full bass response provides 2.1 stereo sound
  • Complete keyboard and mouse emulation for error free booting and real-time switching
  • Computer switching via front panel pushbuttons or hotkeys
  • Supports MAC and Sun keyboard and special keys
  • Plug & Play - No software installation required

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High resolution - Up to 2560 x 1600
  • Supports 3D graphics and gaming
  • Multi OS platform support
  • 2-portUSB 2.0hub for peripherals sharing
  • Computer switching via front panel pushbuttons or hotkeys
  • Supports MAC and Sun keyboard and special keys

What's in the box:

  • IOGEAR 2-Port Dual View Dual-Link DVI KVMP Switch
  • 2 x Dual-Link DVI-D KVM Cable
  • 2 x Dual-Link DVI-D Cable
  • 1 x PS/2 to USB Adapter
  • 1 x Power Adapter
  • 1 x Installation Guide
  • 1 x Warranty Card
  • IOGEAR Warranty
