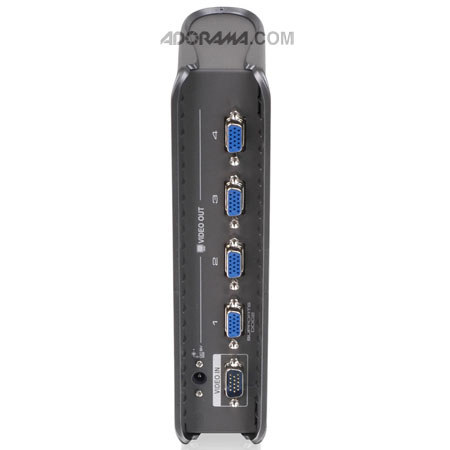

Iogear 4-Port VGA Video Splitter for use with Analog Displays

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Free Expedited Shipping On Orders Over $49
Free Shipping
Add to Wishlist In Stock

About the Iogear 4-Port Monitor Cable

The GVS74 is a 4-port VGA video splitter and a signal booster with Iogear's patented VSE (Video Signal Enhancement) Technology. It is the best choice for splitting and carrying a video signal to more that one display with the same quality as the original signal. The GVS74 VGA Video Splitter is used to take video input from a single source and direct it to four video outputs for monitors using analog signals.

The signal boost obtained by using Iogear's patented VSE (Video Signal Enhancement) Technology allows you to not only split the signal but it also amplifies the video signal to increase the transmission distance up to 215 feet away. This is no small feat, your average VGA card, over a standard VGA cable, sends a clear VGA signal approximately 25 feet.

Operating with a bandwidth of 350MHz (350 million cycles per second) that is almost 60 times greater than a simple TV signal. The high bandwidth allows for the transmission of large amounts of information at a very high rate of speed, thus allowing for the use of high resolution settings upwards of 1920 x 1440 in 24- or 32-bit true color mode.

Iogear 4-Port Monitor Cable Includes

  • Iogear 4-Port VGA Video Splitter
  • 1 x Power Adapter
  • 1 x Quick Start Guide
  • 1 x Warranty Card
  • Iogear 3Years Warranty

Iogear 4-Port Monitor Cable Features

  • Stream a single video source to4 separate VGA monitors
  • Ultra High 350MHz Bandwidth Superior video quality, maintains highest signal strength in all applications up to 1920 x 1440
  • Includes Iogear's patented VSE (Video Signal Enhancement) Technology, which amplifies video signal strength throughout your desire set-up
  • Amplifies video signals increasing transmission distance up to 215 ft
  • Cascadable; allows you to expand your video splitter set up beyond4 displays
  • Hassle free, no software to install, instant installation and use
  • Hot-Plug capability, Hot-Swappable, Plug-n-Play
  • Compact design for easy placement
  • Supports DDC, DDC2, DDC2B at Port 1

Iogear 4-Port Monitor Cable Specifications

Video connections Input: 1 x HDB-15 Male
Output: 4 x HDB-15 Female
LEDs Power On: 1
VGA Bandwidth (-3db) 350MHz
Video Resolution 1920 x 1440 at 60 Hz
Signal Type VGA, SVGA, XVGA, USXGA and Multi-sync
Cable Distance 65m (214.5ft)
Cascade 3 Level
Power Consumption 2.03W (Max)
Power Voltage: DC 9V
Environment Operation Temperature: 0 - 50C
Storage Temperature: -20 - 60C
Humidity: 0 - 80% RH; Non-condensing
Housing Case Plastic
Requirements Video source with VGA (HDB-15) connection
Displays with VGA (HDB-15) connection
Dimensions (W x H x D) 8.5" x 2" x 3.75"/ 22 x 5.08 x 10cm
Weight 0.84lbs/ 0.38kg
