IOGEAR Wireless 5x2 HD Matrix Specifications

  • Video Input

    4 x HDMI, 1 x Component

  • Video Output

    1 x HDMI Loop Through (Transmitter), 1 x HDMI (Receiver)

  • Power

    1 x Power Jack (Transmitter and Receiver)

  • Video Resolution

    480p, 576p, 720p, 1080i, 1080p (24/30/60fps) and 3D Support

  • Video Streaming

    <1ms Latency

  • Audio Output

    Digital 6Mbps AC3 and DTS, Analog 48KHz and 24-bit per sample

  • Frequency

    4.9 - 5.9GHz (Includes non-DFS and DFS Frequency Bands)

  • Antenna Type

    High Performance Internal

  • Range

    Maximum video transmission range is 100ft (30m)

  • Power Switch

    1 x Port Switching Pushbutton (Transmitter and Receiver)

  • Remote Module Connectors: Unit to Unit

    2,5mm Blaster Extender (Transmitter), Sensor Extender (Receiver)

  • LEDs: Port ID

    5 x Blue LEDs on Transmitter; 2 x Blue LEDs on Receiver

  • LEDs: Power On

    Blue/Red LED (Transmitter and Receiver)

  • LEDs: Link

    LED (Transmitter and Receiver)

  • Power Voltage

    5V DC Jack (Transmitter), 5V DC mini USB (Receiver)

  • Power Amps

    2A

  • Operating Temperature

    0 - 40C

  • Housing Case

    Plastic

  • Cable Connections: Input

    1 x Mini USB (female)

  • Cable Connections: Output

    1 x USB (Female) Type A

  • Dimensions (HxDxL)

    1.12x3.75x9.12" (2.84x9.52x23.16cm)

  • Weight

    2.05lbs (0.93kg)

About IOGEAR Wireless 5x2 HD Matrix

The Iogear Wireless 5x2 HD Matrix is the first to send Full uncompressed HD 1080p, connects up to 5 source devices and allow you to switch and independently select any source between 2 HDTVs. The wireless matrix feature is the biggest breakthrough in wireless AV solutions today. This means you can watch cable TV in the living room while the bedroom independently selects a Blu-ray movie to watch wirelessly at the same time. Its capable of streaming Full HD 1080p with support for 3D content and digital audio up to 100ft away within the home or desired set up. The Wireless 5x2 HD Matrix is setting a new standard in wireless connectivity, flexibility, convenience and decor.

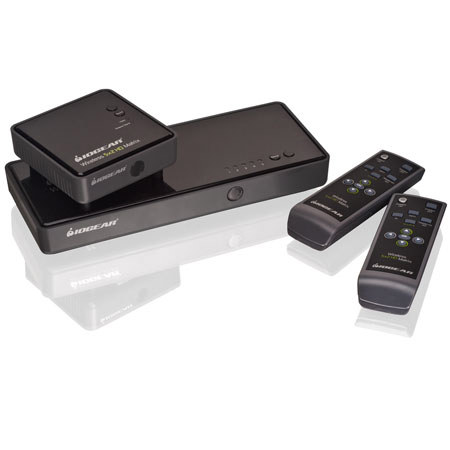

The solution consists of a Wireless Transmitter and a Wireless Receiver with connections for HDMI and Component, along with a loop through (local port) for an advanced 2 HDTV set ups. It also includes USB connectivity for the addition of a computer / laptop giving you wireless control from the second room. Infrared (IR) pass-through enables wireless control of your source devices and helps consolidate your HD A/V electronics, such as a DVD / Blu-ray players, DVR / Cable boxes, Game consoles and computers to design your own custom entertainment space. The Wireless 5x2 HD Matrix does not require a line-of-sight placement, keeping home theater devices neatly out of sight, which enables a quick, simple and flexible wireless HD or 3D audio / video solution.

IOGEAR Wireless 5x2 HD Matrix Features

  • Wireless fully uncompressed HD video up to 100 feet through standard home walls for 2 HDTV's
  • Built in 5 x 2 Matrix: Allows you to switch and independently select any of 5 sources between 2 HDTVs
  • Watch cable TV in the living room while the bedroom watches a Blu-ray movie wirelessly at the same time
  • Supports 2 HDTVs: Delivers separate content to 2 locations at the same time:
  • Living room HDTV can connect to transmitters loop-through (local) port
  • Bedroom HDTV can receive content from wireless receiver
  • Connect and wirelessly transmit content from your Blu-ray / DVD player, DVR / Cable box, Game console, Computer / laptop and VCR
  • Supports Full uncompressed HD 1080p, 3D content and 5.1 channel digital audio
  • Video Resolutions: 480p, 720p, 1080i, 1080p and 3D (24 / 30 / 60fps)
  • Easy Projector Set-up; No more running long wires
  • Keep home theater electronic devices neatly out of sight
  • Based on WHDI Technology
  • HDCP 2.0 Compliant
  • Built-in Infrared (IR) pass-though with 2 IR blaster cables allows user control over their source devices that are hidden away in a different location

Key Features

  • Supports 2 HDTVs
  • Video Resolutions
  • HDCP 2.0 Compliant

What's in the box:

  • IOGEAR Wireless Transmitter
  • Wireless Receiver
  • 2 x Remote Controls with Batteries
  • Component Adapter CableIR Blaster Cable (Transmitter)
  • IR Sensor Extender Cable (Receiver)
  • 2 x Power Adapter
  • HDMI Cable
  • User's Guide
  • IOGEAR 1 Year Warranty
