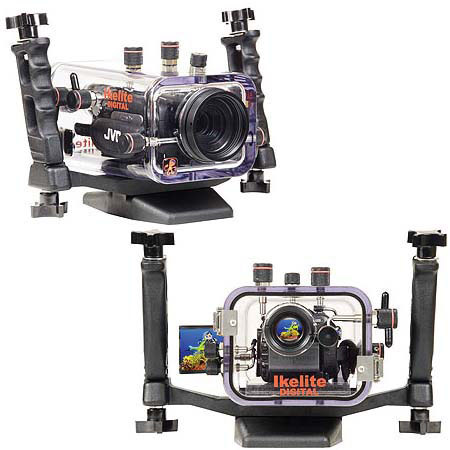

Ikelite Underwater Housing for the JVC HD-7 Camcorder

Molded of clear polycarbonate to provide seamless construction and corrosion proof performance. This "Clearly Superior" design provides full view of the camcorder, control functions, and assurance the system is safe up to 200 feet (60 meters). The housing with camera installed is very slightly negative in salt-water for stability.

The system's compact size and weight make it a breeze to travel with. A complete housing and camera combination weighs only about 8 pounds (3.6 kg). The housing with base and handle assembly measures only 11" (27cm) wide; 8" (20cm) high; and 10" (25cm) deep.

The housing port is threaded, but lens configuration prevents the effective attachment of external wide-angle conversion lenses.

Included UR/Pro Color Filter provides color correction in tropical blue water with available sunlight up to 80 feet (24 meters). An optional filter #6441.81 is also available to achieve more natural tones in green water settings.

Super Eye magnifier for the optical viewfinder is included, providing enhanced viewing while wearing a diving mask.

The camera's large viewing screen can be seen easily using the External Mirror on the side of the housing. Just open the camera's LCD monitor, rotate 180º and fold back against the side of the camera.

Actual image will be reversed when viewed through the mirror. The JVC HD-7 camera does not allow for simultaneous use of the opticalviewfinder and LCD screen. Viewing method must be chosen before installation of the camera in the housing.

The base removes instantly with a unique toggle clamp for traveling or attaching of the optional Pro Video-Lite 3 battery pack. The handle assembly detaches from the housing by removal of just two nuts for packing.

Choose a camera battery long enough for any day's diving: The housing accommodates JVC VF-808U, VF-815U, and the VF-823U batteries.

Following are the features available with this housing
• Super-Eye Viewfinder • Power on/off/mode Control • Record start/stop • Zoom control • Auto/Manual Control • Focus Assist/Focus Lock Control • Manual Focus Ring • Backlight Control • White Balance (Accessed by Function & Joystick Controls) • Lens Cover Control • Removable External UR/Pro Filter
