iKan

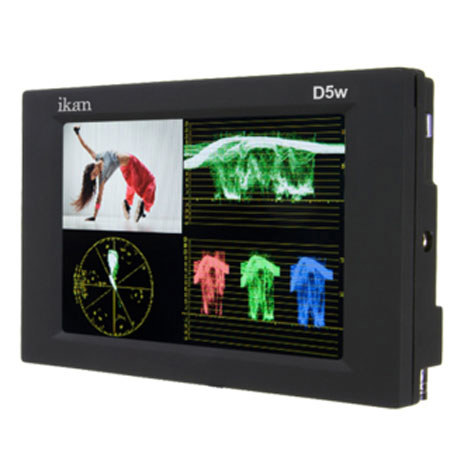

iKan 5.6" LCD Monitor with Hi-Def Panel (Waveform), Canon E-6 DV Battery Plate

SKU: IKD5WE6 MFR: D5W-E6
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,100.00 List Price

Our Price

$899.10 $36 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

The ikan 5.6" LCD Monitor with Hi-Def Panel (Waveform) comes with Canon E-6 DV Battery Plate. The D5w with waveform, vectorscope and RGB parade is now available from ikan. These keys features assist the video professional in getting the shot right the first time. The D5w 1280 x 800 high definition panel is optimal for displaying its advanced software features. The D5w is also equipped with false color and peaking, enabling the video professional to deliver precision shots in the field.

The D5w's small lightweight design makes it perfect for handheld rigs and easy to store. The D5w's HDMI input is complemented by a 3G-SDI input/output along with the feature of headphone audio out. The customized function buttons on the back of the D5w can be tailored for your workflow and optimization. Furthermore, the D5w's frame has a rubberized texture for better grip and handling making it easier to maneuver.

What's Included With This Item

  • ikan 5.6" LCD Monitor with Hi-Def Panel (Waveform)
  • AC Adapter
  • Canon E-6 DV Battery Plate
  • Camera Shoe Mount
  • Ikan 1 Year Warranty

Key Features

  • 1280 x 800 HD panel
  • Waveform, Vector Scope & RGB Parade
  • False color with adjustable under luminance and over luminance warning
  • Clip guide with adjustable threshold
  • Peaking with red outline
  • DSLR Scaling
  • Movable pixel-to-pixel
  • Audio Output: Headphone

Technical Specs

Display Type (Diagonal) 5.6"
Resolution 1280 X 800
LCD Brightness 300 NIT
Contrast Ratio 400:1
Viewing angles 160(H) 160 (V)
Video Inputs HD-SDI
HDMI
3G SDI Supported Resolutions & Frame Rates: 1920x1080p @ 50, 59.94, 60 Hz
HD SDI Supported Resolutions & Frame Rates: 1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz
SD SDI Supported Resolutions & Frame Rates: 720x480i @ 60Hz
720x576i @ 50Hz
HDMI Supported Resolutions & Frame Rates: 720x480i & 720x480p @ 59.94, 60 Hz
720x576i & 720x576p @ 50 Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
Operating Volts DC6 to 24V
Dimensions (H x W x D) 4.1 x 6.5 x 0.9" (10.4 x 16.51 x 2.28cm)
Weight 0.6lbs (0.27kg)
