Ikegami 17" HDTV/SDTV Multi-Format LCD Color Monitor, 800:1 Contrast Ratio, 1280x768 (WXGA) Resolution, 370cd/m2 Brightness

See all Ikegami items

About Ikegami

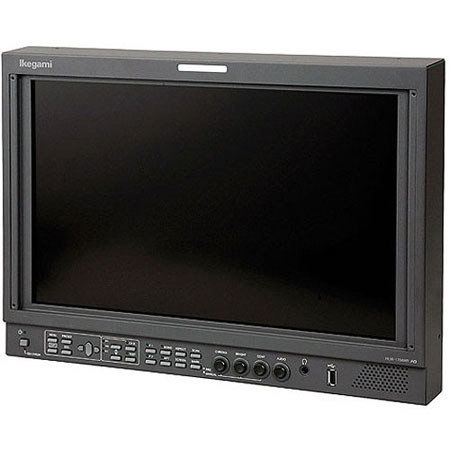

The Ikegami 17" HDTV/SDTV Multi-Format LCD Color Monitor is a high-performance HDTV/SDTV 1280 x 768 professional studio monitor that runs on both AC and DC power for maximum versatility. It includes a wide array of essential features, from DVI-D and dual HD/SD-SDI input to waveform monitor, vectorscope, user-defined screen markers, timecode display and compatibility with nearly any resolution and standard frame rate.

Its compact form factor (only 7RU) makes it easily rack mountable and perfect for sub-control rooms, editing facilities, monitor walls, transmission control desks and OB vans.

Ikegami Features

  • High-performance Liquid Crystal Panel: Employed is a liquid crystal panel with a high resolution of Wide-XGA (1280 x 768 dots) that is excellent in basic performances such as high brightness, high contrast, wide viewing angle, quick response and good color reproducibility
  • Multi-format: The monitor supports various broadcasting formats. The monitor automatically identifies various types of input signal formats
  • Diverse Input Sources: The monitor is standard equipped with two SDI signal inputs (compatible with both HD/SD 4:2:2) and one analog composite signal input. For PC signals (VGA/SVGA/XGA/WXGA), there's one DVI-D input
  • Compatibility with Embedded Audio: Standard equipped with an embedded audio feature, the embedded audio signals multiplexed with DH SDI signal or SD SDI (4:2:2) signal can be automatically recognized & the audio output heard through the built-in monaural speaker, stereo headphone or stereo line-out
  • Remote Control Functions: The monitor can be remote-controlled with the use of two remote control functions. Depending on the place of installation & type of operation, the parallel or serial mode can be used. In addition to the conventional parallel remote control
  • Built-in Markers: 4:3 (16:9 mode), 13:9, 14:9, 15:9 & 16:9 (4:3 mode) & 2.35:1 (16:9 mode) line markers can be displayed. The monitor also supports safety markers with every 1% step between 80% through 90% area & employs five-part split & ten-split crosshatch markers-useful for location alignment
  • User Marker Display Function: Up to 10 different user markers, such as line and box markers, are presettable pixel by pixel to your desired positions and sizes. The line and box drawing settings can be easily made with not just the switch but also the USB mouse
  • Shadow Function; The shadow function is used to shade area other than the 4:3 (16:9 mode), 13:9, 14:9, 15:9, 16:9 (4:3 mode) marker area on an image. The shadow contrast can be set at 0%, 20%, 40%, 60% on the MENU
  • Various Built-in Test Signals: The monitor comes equipped with a color bars signal, grayscale signal with pluge pattern and window signal, allowing for a variety of adjustments directly on the display
  • Timecode Display Signal: It is possible to display the timecode (VITC) multiplexed into the SDI signal on the screen. The display comes in two sizes, large and small and its brightness in three levels
  • Waveform Monitor/Vectorscope Display Function: A waveform monitor of the brightness signal can be displayed. The display comes in two sizes, NORMAL and SMALL and its brightness in three levels. The waveform can also be displayed in any of three selectable positions
  • 2-picture Split Display Function: A previously captured still image and a currently incoming moving image can be displayed simultaneously on a split screen, so that just one monitor is needed to compare the images from two cameras side-by-side
  • Dot-by-dot Display Function: All the picture elements of an input signal are displayed 1:1 according to the pixels of the LCD panel without scaling the incoming signal (enlarging or reducing the input signal according to the LCD pixels)
  • External Memory Function: Various data (MENU settings, PRESET data, etc.) can be saved to USB memory and copied to a PC, ready to manage. Such data may also be copied to another monitor. (Keep in mind that when copying the PRESET data to another monitor, it may be different from monitor to monitor
  • Space-saving Rack Mount Design; In mounting the monitor on the rack, the HLM-1704WR can be housed at a mere 7RU height (equivalent to Ikegami's 15"-type HTM-1517R).The screen display size of the monitor is equivalent to the screen size of a 15"-type 4:3 CRT monitor in the 4:3 display mode
  • Supports AC/DC/Battery Operation: The monitor can accept the AC/DC power as standard. Use of a battery is possible with an optional battery bracket

Ikegami Specifications

Signal System
480i/59.94 (NTSC), 575i/50 (PAL-B)
1080psF/30, 1080psF/25, 1080psF/24, 1080psF/23.98, 1080p/30, 1080p/29.97, 1080p/25, 1080p/24, 1080p/23.98, 1035i/60, 1035i/59.94, 1080i/60, 1080i/59.94, 1080i/50
720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/24, 720p/23.98, 720p/25
Monitor Type
Screen Size
1280 x 768 (WXGA)
Viewing Angle
Contrast Ratio
Response Time
Video Inputs
DVD: DVD-D (x1)
Composite: BNC (x1)
Analog Audio: 3.5mm Mini (x1)
Serial Remote: BNC (x2)
Parallel Remote: 15-pin D-Sub (x1)
Test: 9-pin D-Sub (x1)
RS-485 Remote: RJ-45 (x1)
Video Outputs
HD/SD-SDI (Monitor): BNC (x1)
Analog Audio: 3.5mm Mini (x1)
Headphone: 3.5mm Mini (x1)
RS-485 Remote: RJ-45 (x1)
Remote Control
Operating Temperature
32deg. to 104deg.F (0deg. to 40deg.C)
Power Requirements
100-120VAC/200-240VAC, 50/60Hz
Power Consumption
AC: 49W (max)
DC: 38W at 12VDC
Dimensions (WxHxD)
16.9x12x3.2" / 42.9x30.48x8.12cm
15.2lbs / 6.89kg without Stand
