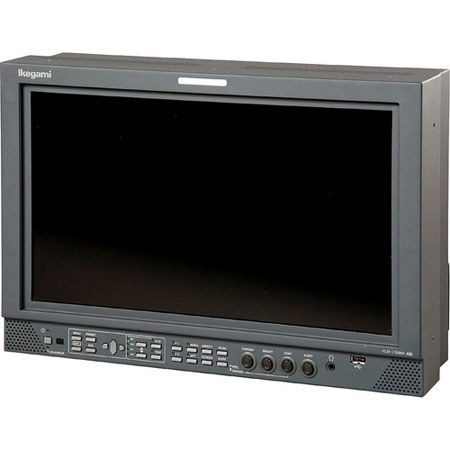

Ikegami 17" Full HD HDTV/SDTV Multi-Format LCD Color Monitor, 1000:1 Contrast Ratio, 650cd/m2 Brightness

See all Ikegami items
SKU: IKHLM1750WR MFR: HLM-1750WR
19% Off

Our Price

$3,748.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Ikegami : Picture 1 regular $3,748.95

About Ikegami

The Ikegami 17" Full HD HDTV/SDTV Multi-Format LCD Color Monitor is designed specifically for professional editing workstations and broadcast studios. The monitor has an array of features to make the process from acquisition all the way to delivery as smooth as possible. It features include a wide critical view angle, excellent brightness and contrast, fast response time and faithful color reproduction.

The monitor supports multi-format SDI input, DVI-D and VBS inputs as standard and 3G-SDI input as an option. It also has a space-saving lightweight form factor and consumes a minimal amount of power.

Ikegami Features

  • The HLM-1750WR can be used for a wide range of applications, with 3G-HD-SDI input as an option
  • Allows efficient use of space in control rooms, OB vans, or as part of a monitor wall; it has a thin body and operates in low power consumption
  • Full HD widescreen 17" (1920 x 1080) LCD panel with a wide viewing angle (170deg. H/V), high contrast ratio (1000:1), fast response time and faithful color reproduction
  • Accepts various input signals as standard, HD-SDI/SD-SDI (4:2:2), VBS (composite video NTSC/PAL), DVI-D; component (RGB/YPbPr) and analog PC inputs are optional
  • Operational Features: Markers & Shadow
  • Operational Features: Built-in test patterns
  • Operational Features: Audio monitoring via the built-in speakers or headphones
  • Operational Features: 8-channel audio level display
  • Operational Features: VITC display
  • Operational Features: WFM
  • Operational Features: Vectorscope
  • Operational Features: Split screen display
  • Operational Features: Dot-by-dot display mode
  • Operational Features: Parallel/serial wireless remote control

Ikegami Specifications

Power Supply
AC Input, 50/60Hz, 100-120/200-240V ±10%
Power Consumption
Less than 85W (standard), 90W (with full option) / Less than 75W (standard), 80W (with full option)
Operating Temperature/Humidity
Humidity 0deg.C-+40deg.C(20 -85% non condensing) -10deg.C- +50deg.C(5 -85% non condensing)
Multi-format SDI
HD-SDI/SD-SDI(4:2:2) Input x2ch(BNC)
HD-SDI/SD-SDI(4:2:2) Output x1ch(BNC)
Composite Video Inputs
NTSC/PAL-B Input x2ch(BNC/Loop-Through)
DVI-D Input
Single Link 24p(Female) Input x1ch TMDS 50ohms
Analog Audio Input
RCA pin Input x2ch 316mVp-p(-10dBV)
Embedded Audio Monitor
Auto Format Switching, Sampling Frequency 48KHz Monitoring audio for one of pair channels of ch1/2,ch3/4,ch5/6,ch, or 7/8 is possible with built-in stereo speakers
Speaker Output
Stereo(from RCA pin 2-input or de-embedded audio from HD/SD SDI input) 1W + 1W or more
Analog Component
RGB/YPbPr Input x1ch(BNC/Single-End) 0.3-4Vp-p 3 Level Positive/Negative or 2 Level Negative Polarity Input x1ch(BNC/Loop-Through)
VGA/SVGA/XGA/WXGA/SXGA/UXGA/WUXGA D-sub Input(Analog RGB) x1ch
Embedded Audio Output
Analog x2ch +4dBs 50ohm XLR-5-32(5pin) AES/EBU(for monitor) 75ohm BNC pair-channel x4ch
3G Capable Multi-format SDI
3G-SDI/HD-SDI/SD-SDI(4:2:2) Auto Switching Input x2ch(BNC) Output x1ch(BNC)
LCD Number of Pixels Dot Pitch
a-SiTFT Active Matrix RGB Stripe in Height 1920(H) x 1200(V) 0.27(W) x 0.27(H) mm
View Angle (H/V)
170 Degree (CR 10:1 or more)
Number of Colors Displayed
107 million colors (RGB - 10bits each )
Contrast Ratio
1000:1 (Typical)
Maximum Screen Luminance (Panel)
650cd/m2
Display size (16:9 / 4:3)
1920x1080 / 1440x1080
Dimensions (WxHxD)
7U, 16.8x12x4.8" / 42.67x30.48x12.19cm
Weight
Without Stand: 17.6lbs / 7.9kg
With Stand: 7.1lbs / 3.2kg
Mfr #
HLM-1750WR
SKU
IKHLM1750WR
