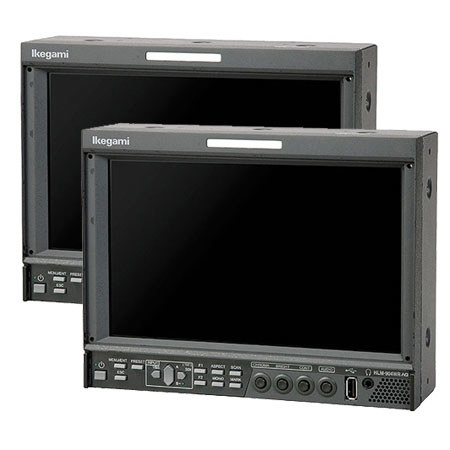

Ikegami 9" Multi-Format LCD Color Monitor, 800x480 (WVGA) Resolution, 800:1 Contrast Ratio, 2 Pack
Your card will only be charged once item ships.
Ways to Save
The Ikegami 9" Multi-Format LCD Color Monitor (2 Pack) with a liquid crystal panel and a contrast ratio of 800:1, delivers high quality images at a resolution of up to 800x400 (WVGA). A viewing angle of 170deg. (H / V) allows you to view the images clearly even from room corners or when the display is mounted at a height. With a response time of 13 ms, the LCD monitor displays clear images with less blurring effect.
Embedded audio feature allows automatic recognition of embedded audio signals multiplexed with DH SDI signal or SD SDI (4:2:2) signal. In addition, you can listen to the audio output through built-in monaural speaker, stereo headphone, or stereo line-out. The HLM-904WR LCD monitor also features an embedded audio meter and 5.1 channel surround for producing stereophonic sound at the down mix mixing ratio specified by ARIB (Association of Radio Industries and Businesses) and ISO/IEC.
Using the 2 remote control functions, the HLM-904WR LCD monitor can be remote controlled. The parallel or serial mode can be based on the place of installation and type of installation. Along with a parallel remote control, the monitor also features serial remote input interface for remote control using a single BNC coaxial cable. With an optional serial remote controller (SRC-301A/Z), up to 99 monitors can be controlled individually or concurrently.
The HLM-904WR Multi-Format LCD Color Monitor can display 4:3 (16:9mode), 13:9, 14:9, 15:9 and 16:9 (4:3mode) and 2.35:1 (16:9mode) line markers. In addition, the LCD monitor supports safety markers with every 1% step between 80% through 90% area. Using five-part split and ten-split crosshatch markers, the LCD monitor provides location alignment. With user marker display function, the HLM-904WR LCD monitor can preset pixel by pixel up to 10 different user markers to user defined locations and sizes. Featured shadow functions allows shading the area apart from 4:3 (16:9mode), 13:9, 14:9, 15:9, 16:9 (4:3mode) marker area on the images. The shadow function provides instant visualization of the image area when converting 16:9 aspect ratio images to 4:3 aspect ratio images or vice versa. In addition, the shadow function can be turned on/off using a remote control.
Equipped with color bars signal, grayscale signal with pluge pattern and window signal, the LCD monitor offers various adjustment settings. Built-in waveform monitor and vectorscope display can be used to output the input signal waveform. The display comes in Normal/Small sizes and 3 brightness levels. In addition, the output waveform can be displayed in any 3 selectable positions and in Green or White colors. 2-picture split display function offers picture comparison from 2 cameras by displaying already captured image and current image separately on the screen.
Equipped with the dot-by-dot display function, the HLM-904WR LCD monitor displays images in their native resolution by avoiding the monitor's internal scaling function. The external memory function allows monitor settings/preset data to be saved on a USB device and copied to a PC for easy management. With rack mount height of 4U, the LCD monitor accommodates 2 monitors. You can connect a USB mouse to the USB port of the monitor to control monitor settings such as Menu setting, Preset data setting, Input signal switching and the Front switch setting. In addition, you can remotely control the monitor using a wireless mouse. The LCD monitor can be powered using the built-in AC power supply and DC input. In addition, the HLM-904WR Multi-Format LCD Color Monitor can be used for applications such as studios, OB vans and fields using an optional battery adaptor with handle.
|Monitor Type||WVGA (800x480 dots) 9" Wide Screen LCD|
|Screen Size||195.0 x 117.0 (mm) (Diagonal 22.74cm)|
|Viewing Angle||H/V, L/R 170deg.|
|Response Time||13ms typ (Gray to Gray)|
|Inputs/Outputs 1||Multi-format SDI Input: 2-Line / Output: 1-Line (Active loop through for only one line selected)
Analog Composite (NTSC/PAL-B): 1-Line (Loop Through)
Analog Audio Input: 1x 3.5mmdia. STEREO Mini-Jack Type
Analog Audio Output: 1x 3.5mm dia. STEREO Mini-Jack Type
|Inputs/Outputs 2||Headphone Output: 1x 3.5mm dia. STEREO Mini-Jack Type
Built-in Speaker: 1x Monaural Type
Parallel Remote Control: 1x D-SUB 15-pin
Serial Remote Control: 1-Line (Loop Through)
RS-485 Remote Control: 2x RJ-45 (Customized)
|Power Supply||AC100-120V/200-240V 50/60Hz±10%|
|Power Consumption||AC Input: 18W (Max.) / DC Input: 16W (At12V) (Max.)|
|Operating Temperature||0 to 104deg.F (0 to +40deg.C)
Humidity: 20% to 85% (non condensing)
|Storage Temperature||14 to 122deg.F (-10 TO 50deg.C)
Humidity: 5% to 85% (non condensing)
|Dimensions (WxHxD)||8.8x6.8x3.7" / 223.52x172.7x93.98mm|
|Weight||4.41lbs / 2kg|
