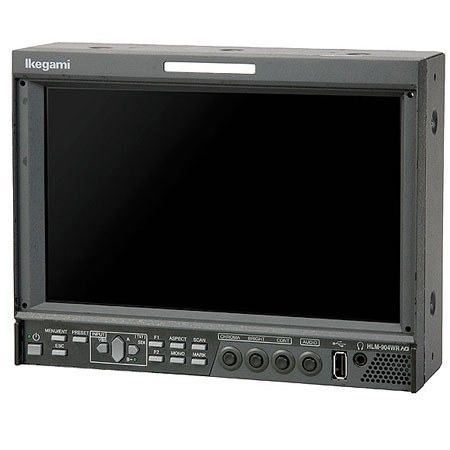

Ikegami 9" LCD HDTV/SDTV Multi-Format Color Monitor, 1280x720 Resolution with LED Backlight, 1000:1 Contrast Ratio,

See all Ikegami items

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Ikegami

The Ikegami 9" LCD HDTV/SDTV Multi-Format Color Monitor is a low-profile, lightweight and low power consumption HDTV/SDTV multi-format LCD color monitor using a 9-inch liquid crystal panel. The HLM-907WR has been designed for use in various locations such as control rooms, editing rooms, monitor shelves, transmission control tables and outside broadcast vans.

The HLM-907WR has a liquid crystal panel with a wide viewing angle of Wide-VGA and with a LED backlight. This liquid crystal panel is excellent in key properties such as high intensity, high contrast, wide field-view, fast response and accurate color reproduction.

Ikegami Features

  • Embedded Audio: It is standard equipped with an embedded audio feature, the embedded audio signals multiplexed with DH SDI signal or SD SDI(4:2:2)signal can be automatically recognized & the audio output can be heard through the built-in monaural speaker, stereo headphone or stereo line-out
  • Various Built-In Markers: 4:3 (16:9mode), 13:9, 14:9, 15:9 and 16:9 (4:3mode) and 2.35:1 (16:9mode) line markers can be displayed on the HLM-907WR for assistance in framing. The monitor also employs five-part split and ten-split crosshatch markers useful for location alignment as standard function
  • Shadow Function: The shadow function is to shade the area other than 4:3 (16:9mode), 13:9, 14:9, 15:9, 16:9 (4:3mode) marker area on images. The shadow contrast can be set at 0%, 20%, 40%, 60% on the MENU
  • 2-Picture Split Display Function: A previously captured still image and a currently incoming moving image are displayed split onscreen. Just one monitor serves to compare the pictures from two cameras at once on its screen
  • External Memory Function: Various data (MENU settings, PRESET data, etc.) can be saved on a USB memory drive and copied to a PC, on which the data is ready to manage. Such data may also be copied to another monitor

Ikegami Specifications

LCD Size
1280 x 768 WXGA
Contrast Ratio
Input and Output Connectors
1 Multi-format HD/SD-SDI, 2ch Inputs and 1ch Monitor Output
VBS 1ch Input and 1ch Output
Analog Audio Input/Output
Compatible Formats
1080psF/30, 1080psF/25, 1080psF/24, 1080psF/23.98, 1080p/30, 1080p/29.97, 1080p/25, 1080p/24, 1080p/23.98, 1035i/60, 1035i/59.94, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/24, 720p/23.98, 720p/25, 480i/59.94 (NTSC), 575i/50 (PAL-B)
Remote Control
Power Requirements
AC:18 W, DC:16 W
Dimensions (WxHxD)
8.8x6.8x2.8" / 223.5x172.7x71.12mm
4.41lbs / 2kg
