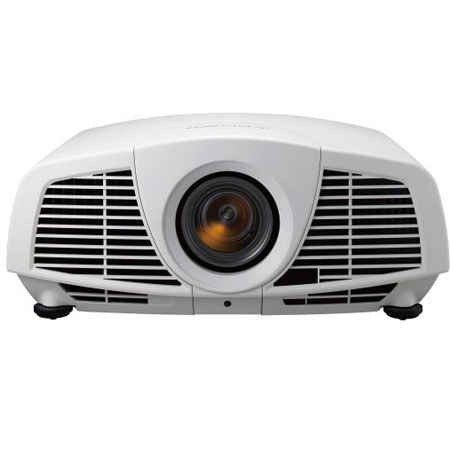

Mitsubishi XD3500U XGA DLP Projector, 5000 ANSI Lumens, 1024x768 Resolution, 0.7" 1-Chip DMD Display, 2500:1 Contrast Ratio

Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist

Protect your investment

About the Mitsubishi XD3500U

The Mitsubishi XD3500U XGA DLP Projector with 5000 lumens of projection power at a 2500:1 contrast ratio is a fully-featured, versatile and powerful unit that can light up any medium-to-large home media room, schoolroom or boardroom, even those with a lot of ambient light to contend with. The room will be filled with a crisp, vivid image thanks to the XD3500U's 0.7", 1-Chip DMD DLP imaging panel by Texas Instruments.

And it can be just about anywhere in the world. This projector has a 100-240 VAC 50/60 Hz power supply and it can accept and project NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL-60 and SECAM signals as well as 720p (750p 50/60 Hz), 1080i (1125i 50/60 Hz) and 1080p (1125p 50/60 Hz) high-definition signals. With all those international standards, it's a good thing the onscreen display (OSD) offers a choice of twelve languages. Most current projectors can project in high definition. But most have only analog composite or component video inputs.

They're not bad but they're not HDMI, the all-digital signal path that keeps your high-def picture pristine, pure and crisp from your source (Blu-ray, cable, or satellite) to your projector. Similarly, DVI-D provides a pure digital path from your computer. The XD3500U's built-in RJ45 enables you to plug the projector into your LAN for remote monitoring and control. You can even set it up to email you when the lamp is nearing the end of its life. This projector has no duty cycle limitations. (Well, almost none. You should turn it off for one hour every week.) It's filter-free and rated for 24/7 operation, saving you time and offering hours of worry-free use.

Mitsubishi XD3500U Includes

  • Mitsubishi XD3500U XGA DLP Projector
  • AC Power Cable
  • Remote Control (w/ 2 batteries)
  • RGB Cable
  • RS-232C Cable
  • Terminal-Cover
  • User Manual CD
  • Lamp Replacement Tray
  • Lens Cap (Attached to Projector)
  • Mitsubishi 3 Years Parts and Labor Limited Warranty

Mitsubishi XD3500U Features

  • Simple Lens Changes: Easy to remove and install optional lenses
  • Optional Lenses: Variety of lenses to meet your application needs
  • Motorized Lens Shift: Easily adjustable horizontal or vertical lens shift provides flexibility for installing and displaying image. Motorized focus for accurate image adjustment
  • Security: Compatible Kensington lock slot; Password lockout capability which protects the projector from unauthorized use
  • Filter-Free: No filter required, resistant to dust and dirt, no clogged filters. Reduced maintenance fees
  • Digital Inputs: DVI-D and HDMI inputs for true digital connections from both PC or video sources
  • Brilliant Color: Allows for more vivid, rich colors while increasing mid-tones and superior black levels
  • Color Enhancer: Allows the user to control the BC technology to meet the most demanding color preferences. Mitsubishi Exclusive
  • High Brightness: Able to project images in large venue or less controlled lighting environments
  • Cable Cover Clean look: Hide those straggling cables and cords
  • RJ45 LAN Management Control: Provides flexible asset management and projector control via network administration
  • Ultra Quiet Noise Level: Operates at a hushed 26dba (low mode)

Mitsubishi XD3500U Specifications

Imaging Technology DLP 0.7"
Brightness/Lumens 5000 ANSI Lumens
Native Resolution 1024 x 768
Maximum Resolution 1280 x 1024
Viewable Size 40"- 300"
Contrast Ratio 2500:1 (On/Off)
Color Wheel 5-Segment (R,G,B,W,Y) (On/Off)
Lens Throw Ratio 1.7 - 2.4
Zoom & Focus Adjustment Motorized Zoom & Focus
PC/MAC Compatibility Yes
Scanning Frequency [H] 15-100 kHz, [V] 50-95 Hz
[Dot Clock] max.162 MHz
Estimated Lamp Life Rating 4000 hrs (Low Mode)
NTSC, PAL, SECAM NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
Computer & Video Input Support RGB: Mini D-sub 15pin x 1, 5 BNC x 1, DVI-D (with HDCP) x 1, HDMI x 1
Audio: Stereo mini jack (3.5mm) x 2
Video: RCA x 1 or BNC x 1, S-VIDEO x 1 or BNC (Y, C) x 1
Audio: RCA (LR) x 2
Power Consumption 430W/4.5A
Power Requirements AC 100-240V, 50/60Hz
Decibels 26dBA (Low Mode)
33dBA (Standard Mode)
Dimensions (W x H x D) 450 x 187 x 373mm/17.7 x 7.4 x 14.7 in (excluding terminal cover)
Weight 10.3kg /22.7lbs (excluding detachable terminal cover)
