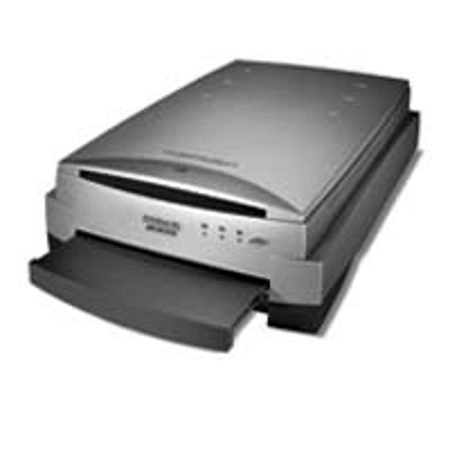

Microtek ArtixScan M1 Dual Media All-in-One Flatbed Scanner, 8.5" x 14", 4800-Dpi, USB Interface for Mac & Windows
Mfr. Part: 110803680102 SKU: IMTASM1
|
|
 |
|
|
|
Item Includes
ArtixScan® M1 scanner; one set of SnapTrans film templates for 35mm mounted slide, 35mm filmstrip, 4"x5" film, and 6cm film; main staging tray for film templates; glass tray; Hi-Speed USB 2.0 cable; power cord; Microtek® ScanWizard Pro; Kodak transmissive and reflective IT8 targets; LaserSoft Imaging SilverFast® SE Plus; Adobe® Photoshop® Elements; ABBYY FineReader Sprint; and Adobe® Acrobat® Reader
|
Description
The ArtixScan M1, a combined flatbed and film scanner for 35mm, 6cm, & 4x5" film formats that also offers additional functionality to scan reflective art or prints as large as 8.5 by 14"
Equipped with Microtek's patented Emulsion Direct Imaging Technology(E.D.I.T.), 4800-dpi optical resolution, 16-bit digital output per channel, auto focus, & new film holders with tension technology, the Microtek ArtixScanM1 offers extraordinary value to photographers, photo enthusiasts, & graphic designers in need of high-quality scans
The ArtixScan M1 is the first in a new line of flatbed scanners from Microtek that will deliver outstanding images from both film scans & reflective scans. The reflective scanning capability of flatbed scanners has been outstanding for several years, but the film scanning capabilities of flatbed scanners lagged behind the dedicated film scanners
By advancing the optical resolution to 4800 dpi with the E.D.I.T. scanning architecture, the film scanning capability of the new flatbed scanners from Microtek will surpass the film scanning capability of dedicated film scanners while maintaining outstanding reflective scanning capability. Excelling at both film & reflective scanning, these new flatbed scanners will offer greater versatility & value to photographers, photo enthusiasts, & graphic designers
Emulsion Direct Imaging Technology (E.D.I.T.)
E.D.I.T. is a unique technology exclusive to Microtek that allows the optical system to scan the film emulsion without looking through the glass plate that supports reflective materials on the flatbed scanner. With E.D.I.T, the film is supported in a tray inside the scanner below the glass plate. The glassless scanning enables clearer scans of the film because it avoids the optical distortions, aberrations, & dirt that can appear in a scan that passes through the glass plate of a typical flatbed scanner
· High-performance Scanning Capabilities
With 4800-dpi optical resolution & 48 bits per pixel, a scan of 35mm film on the Microtek ArtixScan M1 will produce an image file that is the same as an image file from a 34-megapixel digital SLR camera. The resulting detail in the scan of 35mm film will enable prints up to 16x24" while still holding 300 pixels per inch at that print size
In addition, large-format prints from 35mm scans can be made up to 24x36" while still holding 200 pixels per inch at that print size. Professional photographers & photo enthusiasts will be able to fully utilize the printable area offered by their photo printers from scans of 35mm film & larger film sizes
Software & Color Management
Continuing a strong partnership with LaserSoft Imaging, the Microtek ArtixScan M1 will include the popular SilverFast software offering an intuitive user interface & professional controls over the scanning parameters. Of the many outstanding features of the SilverFast software is fully-integrated color management based on ICC standards. |
Features
 |
ArtixScan M1 Dual Media Scanner offers Separate Scan Beds for Reflective & Transparency Scanning |
|
Microtek's patented E.D.I.T. Architecture |
|
4800-dpi optical resolution |
|
48-bits per pixel (16-bits per channel) |
|
New film holders with tension technology for 35mm slides, 35mm film, 6-cm film, and 4x5-inch film |
|
Hi-Speed USB 2.0 interface |
|
Bundled software package includes SilverFast from LaserSoft Imaging and MicrotekScanWizard Pro |
|
8.5 x 14-inch reflective scanning area |
|
8.5 x 10-inch transparency scanning with E.D.I.T. |
|
Software compatible with Mac OS 10.3 or later and Windows 2000/XP/Vista |
Specifications
| Scanner Features |
| Part Number | 1108-03-680102 ArtixScan M1 |
| Scanner Type | Single-pass, dual-platen color flatbed scanner |
| Optical Resolution | 4800 x 9600 dpi |
| Optical Density | 4.4 maximum optical density |
| Original Type & Scanning Area | Reflective originals up to 8.5" x 14"
Transparent originals up to 8.5" x 10" positive, negative, color or monochrome |
| Batch Scanning | 35mm slides up to 12 frames
35mm filmstrip up to 24 frames
4 x 5 inch film up to 2 frames
6cm (120, 220) film: 6 x 4.5 cm up to 4 frames
6 x 6 cm up to 3 frames
6 x 7 cm up to 3 frames
6 x 9 cm up to 2 frames
6 x 17 cm 1 frame |
| Focus | Auto focus (user selectable: on/off) |
| Exposure | Auto and manual exposure control |
| Photo Restoration | ColorRescue color restoration for photos and film when using ScanWizard Pro |
| Color Management | Kodak Digital Science color management built into ScanWizard Pro software Compatible with standard ICC profiles and includes over 140 profiles Apple ColorSync® and Microsoft ICM compatible |
| A/D Conversion | 16 bits per color channel |
| Output Data | 16-bits or 8-bits per channel (user selectable) |
| Multiple Sampling | 2, 4, 8, 16 times (user selectable) |
| Interface | Hi-Speed USB (2.0) |
| Driver | TWAIN |
| Warranty | Aluratek Standard one year limited warranty |
| Technical Specifications |
| Dimensions (L x W x H) | 22.3" x 15.2" x 6.12" (567mm x 385mm x 157mm) |
| Weight | 26.4 lbs (12 kg) |
| Image Sensor | Sony CCD |
| Light Source | Cold cathode fluorescent lamp |
| Optics | Proprietary, custom-designed lens with anti-reflective coating |
| Voltage | AC 100 to 240 volts, 47 to 63 HZ |
| Power Consumption | 35 Watts |
| Power Supply | Auto-switching universal power supply |
| Environment | Operating Temperature 50º to 104º F (10º to 40º C)
Relative Humidity 20% to 85% |
| Regulatory | Safety: ANSI/UL1950-1997, CAN/CSA C22 No. 950-95, CB ICE60950
Emissions: FCC Class B, CE (EN55022/1998, EN55024/1998), BSMI, VCCI
Acoustics: Operating: 55dBA max per ISO7779 |
| System Requirements |
| General Requirements | CD-ROM drive for installing software, color monitor with 24-bit color capability256 MB RAM or more |
| PC & Compatibles | Pentium IV PC or higher, with USB or Hi-Speed USB (USB 2.0) port
Windows Vista/XP/ 2000 |
| Macintosh | Mac G3 processor or later with built-in USB or Hi-Speed USB (USB 2.0) port Mac OSX 10.3 or later |
| | |
|
|
|
|
|
|
|
|
|
