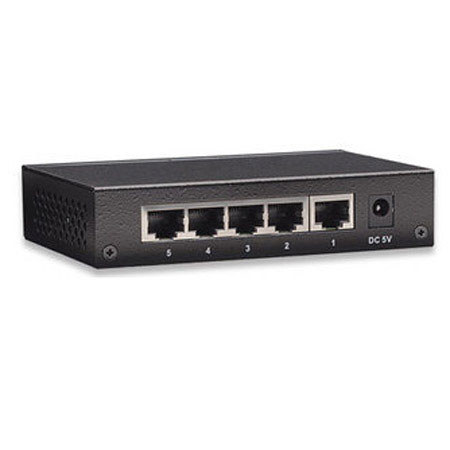

Intellinet 5-Port 10/100 Mbps Fast Ethernet Office Switch, 48 KB Buffer

SKU: INT523301 MFR: 523301
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist In Stock

About this item

The Intellinet 5-Port Fast Ethernet Office Switch is perfect for the small and medium-size business looking a durable switch that is reliable and easy to install. The metal case is more durable than a plastic enclosure and is very appropriate for locations with potentially harsh environments, such as a warehouse, factory or wiring closet.

Normally, when a computer, notebook, network printer or other network device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new energy efficient IEEE 802.3az technology, the Intellinet 10/100 Mbps switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet switch can adjust the level of power output based on the length of the network cable connected to a particular port. With the Intellinet Network Solutions Fast Ethernet Office Switch you will enjoy maximum network performance, but when things slow down it automatically scales back power usage to conserving energy and save money.

The Fast Ethernet Office Switch connects up to five computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables and works with any operating system. The auto features of this switch make installation Plug and Play and hassle free. There is no configuration required and you don't need to worry about using special cables for uplink ports, since each port is equipped with Auto MDI/MDI-X crossover.

What's Included With This Item

  • Intellinet 5-Port Fast Ethernet Office Switch
  • External Power Adapter
  • User Manual
  • Intellinet 3 Year Warranty

Key Features

  • Five 10/100 auto-sensing ports - automatically detect optimal network speeds
  • Supports any combination of 10 Mbps or 100 Mbps network devices
  • Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
  • All RJ-45 ports with Auto-MDIX (auto uplink) support
  • Supports NWAY auto-negotiation
  • Store and forward switching architecture
  • Full/half duplex operation
  • IEEE 802.3x flow control for full duplex
  • Zero packet loss back-pressure flow control for half duplex
  • Packet filtering/forwarding rates: 148.800 pps (100 Mbps), 14.880 pps (10 Mbps)
  • Supports 1024 MAC address entries
  • 48 kBytes buffer memory
  • LEDs for power, link/activity, full/half duplex
  • Compact metal case

Technical Specs

Standards IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, for full duplex mode)
IEEE 802.3az (Energy Efficient Ethernet)
Media support 10Base-T Cat3, 4, 5 UTP/STP RJ-45
100Base-TX Cat5 UTP/STP RJ-45
Packet Filter/Forwarding Rate 148.800 pps (100 Mbps)
14.880 pps (10 Mbps)
Buffer memory 48 kBytes
MAC Address Table 1024 Entries
Switch Architecture Store and Forward
LEDs Power
Full/half duplex
Construction Metal Housing
External Power Adapter 5 V, 600 mA
Certifications FCC Class B, CE Mark
Operating Temperature 0deg. to 55deg.C (32deg. to 140deg.F)
Storage Temperature -20deg. to 90deg.C (-4deg. to 194deg.F)
Operating Humidity 10% to 90% RH, non-condensing
Dimensions (L x W x H) 75 x 121 x 25mm / 2.95 x 4.76 x 0.98"
Weight 0.9lbs / 0.41kg
