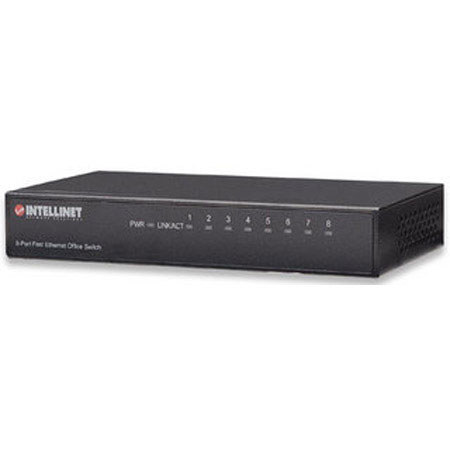

Intellinet 8-Port 10/100 Mbps Fast Ethernet Office Switch, 96KB Buffer

See all Intellinet items
Intellinet : Picture 1 thumbnail Intellinet : Picture 2 thumbnail Intellinet : Picture 3 thumbnail Intellinet : Picture 4 thumbnail Intellinet : Picture 5 thumbnail Intellinet : Picture 6 thumbnail Intellinet : Picture 7 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Intellinet

The Intellinet 8-Port Fast Ethernet Office Switch is perfect for the small and medium-size business looking a durable switch that is reliable and easy to install. The metal case is more durable than a plastic enclosure and is very appropriate for locations with potentially harsh environments, such as a warehouse, factory or wiring closet.

Normally, when a computer, notebook, network printer or other network device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new energy efficient IEEE 802.3az technology, the Intellinet 10/100 Mbps switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet switch can adjust the level of power output based on the length of the network cable connected to a particular port. With the Intellinet Network Solutions Fast Ethernet Office Switch you will enjoy maximum network performance, but when things slow down it automatically scales back power usage to conserving energy and save money.

The Fast Ethernet Office Switch connects up to five computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables and works with any operating system. The auto features of this switch make installation Plug and Play and hassle free. There is no configuration required and you don't need to worry about using special cables for uplink ports, since each port is equipped with Auto MDI/MDI-X crossover.

Intellinet Features

  • Eight 10/100 auto sensing ports - automatically detect optimal network speeds
  • Supports any combination of 10 Mbps or 100 Mbps network devices
  • Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
  • All RJ45 ports with Auto-MDIX (auto uplink) support
  • Supports NWay auto-negotiation
  • Store and forward switching architecture
  • Full/half duplex operation
  • IEEE 802.3x flow control for full duplex
  • Zero packet loss backpressure flow control for half duplex
  • Packet filtering/forwarding rates: 148.800 pps (100 Mbps), 14.880 pps (10 Mbps)
  • Supports 1024 MAC address entries
  • 96 kBytes buffer memory
  • LEDs for power, link/activity, full/half duplex
  • Compact metal case

Intellinet Specifications

IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, for full duplex mode)
Media support
10Base-T Cat3, 4, 5 UTP/STP RJ-45
100Base-TX Cat5 UTP/STP RJ-45
Packet Filter/Forwarding Rate
148.800 pps (100 Mbps)
14.880 pps (10 Mbps)
Buffer memory
96 KBytes
MAC Address Table
1024 Entries
Switch Architecture
Store and Forward
Full/half duplex
External Power Adapter
5 V, 600 mA
FCC Class B, CE
Operating Temperature
0 - 40deg.C (32 - 104deg.F)
Storage Temperature
-20 - 70deg.C (-4 - 158deg.F)
Operating Humidity
10% to 90% RH, non-condensing
Dimensions (W x L x H)
155 x 85 x 25mm / 6.10 x 3.35 x 0.98"
0.9lbs / 0.41kg
