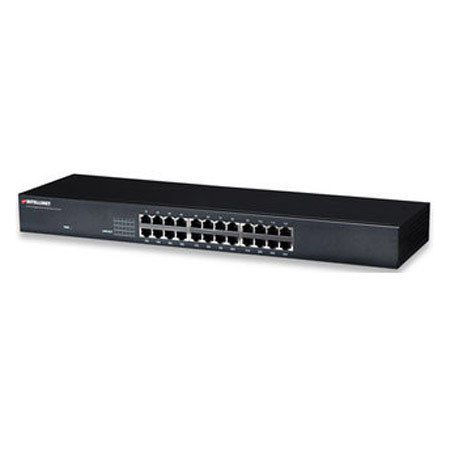

Intellinet 24-Port Gigabit Ethernet Rackmount Switch, 48Gbps Backplane Speed

See all Intellinet items
SKU: INT524162 MFR: 524162
Intellinet : Picture 1 thumbnail Intellinet : Picture 2 thumbnail Intellinet : Picture 3 thumbnail Intellinet : Picture 4 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Intellinet

The Intellinet 24-Port Gigabit Ethernet Rackmount Switch offers an array of features while providing superior network throughput. Sixteen 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds. With a backplane speed of 48 Gbps, there is plenty of performance available for your computers, servers and other networking devices.

Intellinet Features

  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • All RJ45 ports with Auto-MDIX (auto uplink) support
  • Supports NWay auto-negotiation
  • Store and forward switching architecture
  • Full/half duplex operation
  • Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
  • Supports up to 8192 MAC address entries
  • Supports MAC address auto-learning and auto-aging

Intellinet Specifications

IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
IEEE 802.3az (Energy Efficient Ethernet EEE)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, for full duplex mode)
Media support
10Base-T Cat3, 4, 5 UTP/STP RJ45
100Base-TX Cat5 UTP/STP RJ45
1000Base-T Cat5e UTP/STP RJ45
Packet Filter/Forwarding Rate
1,488,000 pps (1000 Mbps)
148,800 pps (100 Mbps)
14,880 pps (10 Mbps)
MAC address table
8192 entries
Backplane speed
48 Gbps
Switch architecture
Store and Forward
Link Speed per port: 1000 Mbps
Link/Activity per port
Housing Material
Metal Housing
Internal Power Supply
100 - 240 V AC, 50/60 Hz
Power Consumption
30 Watts (maximum)
FCC Class B, CE
Operating Temperature
0 - 40deg.C (32 - 104deg.F)
Storage Temperature
-40 - 70deg.C (-40 - 158deg.F)
Operating Humidity
10 - 90% RH, non-condensing
19" (48.26cm), 1U;
Dimensions (L x W x H)
205 x 440 x 44mm / 8.07 x 17.32 x 1.73"
8.5lbs / 3.86kg
