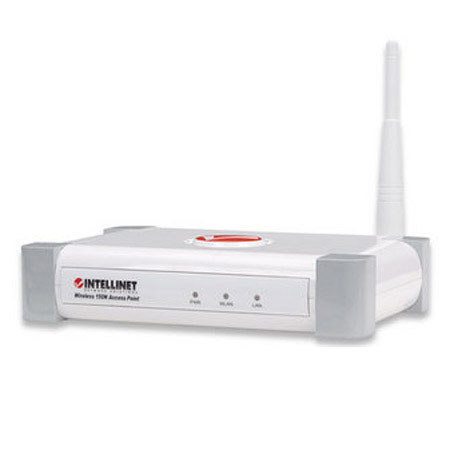

Intellinet Wireless 150N Access Point, 150 Mbps, RJ45 10/100 Mbps Data Port

See all Intellinet items
SKU: INT524704 MFR: 524704
Intellinet : Picture 1 thumbnail Intellinet : Picture 2 thumbnail Intellinet : Picture 3 thumbnail Intellinet : Picture 4 thumbnail Intellinet : Picture 5 thumbnail Intellinet : Picture 6 thumbnail Intellinet : Picture 7 thumbnail
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify when in stock

Our Price

$59.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • Access Point
  • Bridge Point-to-Point
  • Bridge Point-to-Multi-Point
  • WDS and Universal Repeater
Intellinet : Picture 1 regular $59.99

About Intellinet

The Intellinet Wireless 150N Access Point is the latest in wireless networking. Taking advantage of new technology, a wireless network can now see greatly enhanced network speeds. The Intellinet Wireless 150N Access Point serves multiple purposes - an access point for your wireless network supporting multiple SSIDs and tagged VLANs, a wireless bridge for point-to-point connections or WDS setups and a RADIUS authentication server - and brings it all together so that the devices can access a high-speed Internet connection.

This access point can be configured in any one of five modes: 1) Access Point (AP), 2) Point-to-Point (PtP), 3) Point-to-Multi-Point (PtMP), 4) Universal Repeater or 5) AP Client (Station Infrastructure). Add support for multiple ESSIDs and VLANs to that and it becomes clear that whatever your requirements are the 150N Access Point provides the solution.

The Wireless 150N Access Point provides maximum wireless security by supporting 802.1x user authentication for external RADIUS servers and, thanks to its internal RADIUS server, the access point can be used as the authentication server in smaller networks. Other security features included in this access point are MAC address filtering, disable SSID broadcast and support for the latest wireless encryption mechanisms.

Intellinet Features

  • Up to 150 Mbps network link speed
  • Complies with 2.4 GHz IEEE 802.11n standard and is backward compatible with IEEE 802.11g/b standards
  • Supports WMM function to meet the multimedia data bandwidth requirement
  • Supports Wi-Fi Protected Setup (WPS)
  • Supports WEP and WPA/WPA2 (TKIP and AES) data encryption
  • Integrated RADIUS authentication server for 16 wireless clients
  • DHCP server assigns IP addresses for all LAN users
  • Supported modes: Access Point, Bridge Point-to-Point, Bridge Point-to-Multi-Point, WDS and Universal Repeater
  • Supports multiple ESSIDs with individual security settings
  • Multiple ESSIDs support VLAN tagging
  • Easy installation through Web-based user interface
  • Firmware upgradeable
  • Use Intellinet Wireless N adapters for the best compatibility and performance

Intellinet Specifications

Standards
IEEE 802.1d (Spanning Tree Protocol)
IEEE 802.11b (11 Mbps Wireless LAN)
IEEE 802.11g (54 Mbps Wireless LAN)
IEEE 802.11n (150 Mbps Wireless LAN)
IEEE 802.1x (Network Access Control)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
LAN port
RJ45 10/100 Mbps data port
Flash
4 MB
Memory
16 MB SDRAM
Certifications
FCC Class B, CE Mark
Chipset
Ralink RT3050
Wireless frequency range
2.400 - 2.483 GHz
Modulation technologies
802.11b: Direct Sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK
802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
Data rates
IEEE 802.11b (11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
IEEE 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps)
IEEE 802.11n (MCS0-7: up to 150 Mbps)
Output power
OFDM: 14 dBm +/- 1.5 dBm (150 Mbps, 40 mW max.)
OFDM: 15 dBm +/- 1.5 dBm (54 Mbps, 40 mW max.)
CCK: 17 dBm +/- 1.5 dBm (11 Mbps, 63 mW max.)
Receiver sensitivity
11n (150 Mbps) MCS0-7: 20 MHz: -73 dBm; 40MHz: -68 dBm
11g (54 Mbps) OFDM: -78 dBm
11b (11 Mbps) CCK: -91 dBm
Wireless operation modes
Access Point
Station Infrastructure (AP Client)
Point-to-Point Bridge
Point-to-Multi-Point Bridge
WDS Bridge
Universal Repeater
Wireless security
WEP encryption (64/128 bit)
WPA TKIP
WPA2 AES
WPA2 mixed
WPA RADIUS
802.1x Authentication
Internal MD5/PEAP RADIUS server
Client access control through media access control (MAC) filter
Antennas
1 detachable dipole antenna with 3 dBi gain
LEDs
Power
WLAN Link/Act
LAN Link/Act
Power
External power adapter: 5 V DC, 1.0 A
Power consumption: 4 Watts max.
Operating temperature
0 - 40deg.C (32 - 104deg.F)
Operating humidity
10 - 90% RH, non-condensing
Storage temperature
-20 - 60deg.C (4 - 149deg.F)
Dimensions (W x L x H)
160 x 127 x 35 mm (6.3 x 5.0 x 1.4")
Weight
0.8 kg (1.7 lbs.)
Mfr #
524704
SKU
INT524704
