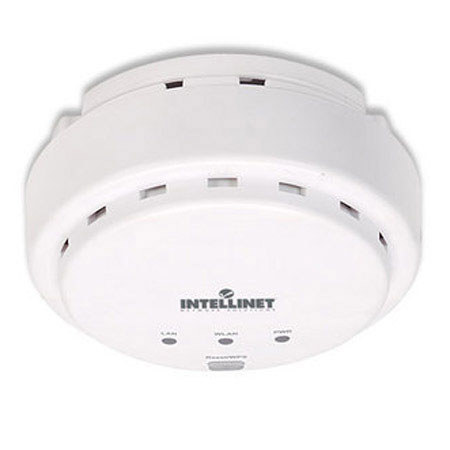

Intellinet High-Power Ceiling Mount Wireless 300N PoE Access Point, 2.400 - 2.483GHz Wireless Frequency Range, 400mW CCK Output Power

See all Intellinet items
SKU: INT525251 MFR: 525251
Intellinet : Picture 1 thumbnail Intellinet : Picture 2 thumbnail Intellinet : Picture 3 thumbnail Intellinet : Picture 4 thumbnail Intellinet : Picture 5 thumbnail Intellinet : Picture 6 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • Access Point
  • Bridge Point-to-Point
  • Bridge Point-to-Multi-Point
  • WDS and Universal Repeater

About Intellinet

The Intellinet Network Solutions High-Power Ceiling Mount Wireless 300N PoE Access Point is the latest in wireless networking. Taking advantage of new technology, a wireless network can now see greatly enhanced network speeds. The Intellinet Network Solutions High-Power Ceiling Mount Wireless 300N PoE Access Point serves multiple purposes - an access point for your wireless network supporting multiple SSIDs and tagged VLANs and a wireless bridge for point-to-point connections or WDS setups - and brings it all together so that the devices can access a high-speed Internet connection.

This access point can be configured in any one of five modes Access Point (AP), Point-to-Point (PtP), Point-to-Multi-Point (PtMP), Universal Repeater or AP Client (Station Infrastructure). Add support for multiple ESSIDs and VLANs to that and it becomes clear that whatever your requirements are the 300N Access Point provides the solution. The High-Power Ceiling Mount Wireless 300N PoE Access Point comes with a PoE PD port. This port can be used to power the device from a PoE-compliant LAN switch, which is very convenient in situations where AC power is not readily available.

Intellinet Features

  • Up to 300 Mbps network link speed
  • Super long-range indoor Wireless N range extender and universal repeater
  • Smoke detector design
  • Complies with 2.4 GHz IEEE 802.11n standard and is backward compatible with IEEE 802.11g/b standards
  • 2T2R MIMO technology for enhanced throughput and coverage
  • Supports WMM function to meet the multimedia data bandwidth requirement
  • Supports Wi-Fi Protected Setup (WPS)
  • Supports WEP and WPA/WPA2 (TKIP and AES) data encryption
  • IEEE 802.3af-compliant PoE-powered device with one PoE (PD) port
  • DHCP server assigns IP addresses for all LAN users
  • Supported modes: Access Point, Bridge Point-to-Point, Bridge Point-to-Multi-Point, WDS and Universal Repeater
  • Supports multiple ESSIDs with individual security settings
  • Multiple ESSIDs support VLAN tagging
  • Easy installation through Web-based user interface
  • Firmware upgradeable
  • Use Intellinet Network Solutions Wireless N adapters for the best compatibility and performance

Intellinet Specifications

IEEE 802.1d (Spanning Tree Protocol)
IEEE 802.11b (11 Mbps Wireless LAN)
IEEE 802.11g (54 Mbps Wireless LAN)
IEEE 802.11n (300 Mbps Wireless LAN)
IEEE 802.1x (Network Access Control)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3af (Power over Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
LAN port
1 RJ45 10/100 Mbps data and power input port (PD port)
LAN ports with Auto MDI/MDI-X
Realtek RTL8196C + RTL8192CE
FCC Class B, CE Mark, RoHS
Wireless Frequency Range
2.400 - 2.483 GHz
Modulation Technologies
802.11b: Direct Sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK
802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
Data Rates
IEEE 802.11b (11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
IEEE 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps)
IEEE 802.11n (MCS0-15: up to 300 Mbps)
Output power
OFDM: 23 dBm +/- 1.5 dBm (300 Mbps, 200 mW max.)
OFDM: 24 dBm +/- 1.5 dBm (250 Mbps, 40 mW max.)
CCK: 26 dBm +/- 1 dBm (11 Mbps, 400 mW max.)
Up to 20 dBm
Wireless operation modes
Access Point
Station Infrastructure (AP Client)
Point-to-Point Bridge
Point-to-Multi-Point Bridge
WDS Bridge
Universal Repeater
Wireless security
WEP encryption (64/128 bit)
WPA2 mixed
802.1x Authentication
Client access control through media access control (MAC) filter
2 Planar Inverted-F antennas PIFA with 3 dBi gain each
2T2R MIMO mode (2 transmitters, 2 receivers)
WLAN Link/Act
LAN Link/Act
External Power Adapter
5 V DC, 2.0 A
Power Consumption
4 Watts max
Via PoE PD port: 48 V, 0.2 A
Operating Temperature
0 - 40deg.C (32 - 104deg.F)
Storage Temperature
-20 - 60deg.C (4 - 149deg.F)
Operating Humidity
10 - 90% RH, non-condensing
Dimensions (L x W x H)
127 x 160 x 35mm / 5.0 x 6.3 x 1.38"
1.7lbs / 0.8kg
Mfr #
