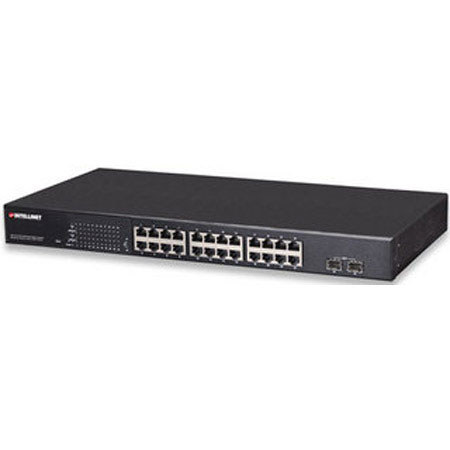

Intellinet 24-Port PoE+ Web-Managed Gigabit Ethernet Switch with 2 SFP Ports, 52Gbps Backplane Speed

See all Intellinet items
Intellinet : Picture 1 thumbnail Intellinet : Picture 2 thumbnail Intellinet : Picture 3 thumbnail Intellinet : Picture 4 thumbnail

Our Price

$751.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Intellinet

The Intellinet Network Solutions 24-Port PoE+ Web-Managed Desktop Gigabit Switch is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 24 Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch and can power Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1000 Mbps.

The Intellinet PoE+ Web-Managed Desktop Gigabit Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 Watts of power per port. IEEE802.3af or IEEE802.3at compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected.

Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 24-Port PoE Web-Managed Desktop Gigabit Switch offers plenty of performance for your computers, servers and other networking devices. In addition, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances. This PoE+ switch is equipped with an impressive array of advanced management functions that allow you to be in full control over your network. The 24-Port PoE Web-Managed Desktop Gigabit Switch supports VLAN, port aggregation, QoS, port mirroring, SNMP V1 and the popular SNMP V2c.

Intellinet Features

  • Provides power and data connection for up to 24 PoE network devices
  • Save installation cost by delivering data and power over existing network cables
  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • Two small form-factor pluggable GBIC module slots (SFP)
  • IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
  • Power output up to 30 Watts per port
  • Total power budget of 180 Watts
  • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
  • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
  • All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
  • Web-based configuration
  • Supports SNMP management
  • Supports VLAN (tag-based and port-based)
  • Provides IEEE 802.1x port-based security
  • Supports link aggregation (trunking)
  • Supports bandwidth control per port
  • Supports port mirroring
  • Supports two types of QoS: port-based and DSCP
  • Broadcast storm control with multicast packet rate settings
  • Supports jumbo frames up to 9 kBytes
  • Supports Rapid Spanning Tree/Spanning Tree protocol
  • Full/half duplex operation
  • IEEE 802.3x flow control for full duplex
  • Supports 16k MAC address entries
  • 400 kBytes buffer memory

Intellinet Specifications

Standards 1
IEEE 802.1d (Spanning Tree Protocol)
IEEE 802.1p (Traffic Prioritization)
IEEE 802.1q (VLAN Tagging)
IEEE 802.1w (Rapid Spanning Tree Protocol)
IEEE 802.3ad (Link Aggregation)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
Standards 2
IEEE 802.3ad (Link Aggregation Control Protocol LACP)
IEEE 802.3af (Power over Ethernet 802.3at Type 1)
IEEE 802.3at (Power over Ethernet 802.3at Type 2)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, for full duplex mode)
Media support
10Base-T Cat3, 4, 5 UTP/STP RJ45
100Base-TX Cat5 UTP/STP RJ45
1000Base-T Cat5e UTP/STP RJ45
Packet filter/forwarding rate
1,488,000 pps (1000 Mbps)
148,800 pps (100 Mbps)
14,880 pps (10 Mbps)
MAC address table
16K
Backplane speed
52Gbps
Switch architecture
Store and Forward
Configuration options 1
Port link speed: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation
PoE on/off per port
Flow control on/off per port
VLAN
Rate limiting (ingress rate and egress rate)
Port Mirroring
Port Aggregation/LACP: 8 groups
Broadcast Storm configuration with broadcast rate, multicast rate and flooded unicast rate
IGMP Snooping
Configuration options 2
Quality of Service (QoS): port-based or DSCP
Integrated VeriPHY cable diagnostics tool
Integrated ICMP Ping client sends ping requests to other network nodes
SNMPv1/v2c (Simple Network Management Protocol)
LAN settings (IP address, Gateway, etc.)
LEDs
PoE
Power
Link/activity
Construction
Metal housing
Power Input
90 - 260 V AC, 50 - 60 Hz
Power Consumption
180 Watts (maximum)
Certifications
FCC Class A, CE
Operating Temperature
0 - 45deg.C (32 - 113deg.F)
Storage Temperature
-20 - 90deg.C (-4 - 194deg.F)
Operating Humidity
10 - 90% RH, non-condensing
Dimensions (L x W x H)
220 x 440 x 44mm / 8.66 x 17.32 x 1.73"
Weight
6.8lbs / 3.08kg
