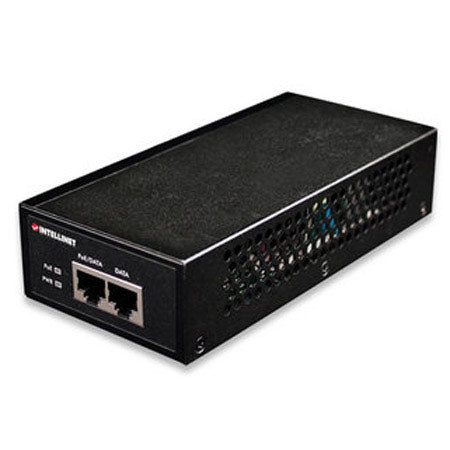

Intellinet Single Port Gigabit High Power PoE+ Injector, 30 Watts Power Output

See all Intellinet items
SKU: INT560566 MFR: 560566
Intellinet : Picture 1 thumbnail Intellinet : Picture 2 thumbnail Intellinet : Picture 3 thumbnail Intellinet : Picture 4 thumbnail Intellinet : Picture 5 thumbnail Intellinet : Picture 6 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • Protection functions

About Intellinet

The Intellinet 1-Port Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts. That's enough for even power-hungry PoE devices. No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port and use the existing Cat5 cabling to deliver DC power as well as transfer data. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads and high voltages.

Intellinet Features

  • Save time and money by delivering data and power via existing network cables
  • Power output of up to 30 watts
  • Supports all IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (Wireless LAN access points and bridges, VoIP [Voice over Internet Protocol] telephones, IP surveillance cameras)
  • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
  • Protection functions: Short circuit protection for short GND
  • Protection functions: Overload protection for currents over 1.8 A
  • Protection functions: High-voltage protection for output voltage exceeding 58 V

Intellinet Specifications

IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High-Power PoE+ Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
Media support
100Base-TX Cat5 UTP/STP RJ45, 8 pin
1000Base-T Cat5e UTP/STP RJ45, 8 pin
1 RJ45 1000 Mbps input port
1 RJ45 1000 Mbps data and power output port
1 power input connector for external power adapter
All IEEE 802.3at- and IEEE 802.3af-compliant PoE devices
RJ45 Input Connector Pinout
Pin 1: Rx+ (data receive)
Pin 2: Rx- (data receive)
Pin 3: Tx+ (data transmit)
Pin 4: NC (not connected)
Pin 5: NC (not connected)
Pin 6: Tx- (data transmit)
Pin 7: NC (not connected)
Pin 8: NC (not connected)
RJ45 Output Connector Pinout(Data+Power)
Pin 1: Rx+ (data receive) and feeding power [+]
Pin 2: Rx- (data receive) and feeding power [+]
Pin 3: Tx+ (data transmit) and feeding power [-]
Pin 4: NC (not connected)
Pin 5: NC (not connected)
Pin 6: Tx- (data transmit) and feeding power [-]
Pin 7: NC (not connected)
Pin 8: NC (not connected)
PoE, Power
FCC Class B Part 15, CE 89/336/EEC
Metal housing
100 - 240 V AC, 50 - 60 Hz
Power consumption
42 watts (maximum)
Operating Temperature
5 - 45deg.C (41 - 113deg.F)
Storage Temperature
-20 - 55deg.C (-4 - 131deg.F)
Operating Humidity
10 - 90% RH, non-condensing
Dimensions (L x W x H)
154 x 72 x 35mm / 6.06 x 2.83 x 1.38"
1.73lbs / 0.78kg
