Intellinet

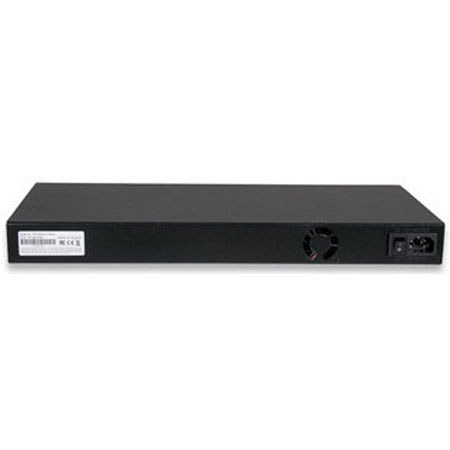

Intellinet 16-Port Fast Ethernet PoE+ Switch, 8 x PoE IEEE 802.3at/af (PoE+/PoE) Ports, 8 x Standard RJ45 Ports

SKU: INT560771 MFR: 560771
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$227.99
Free Shipping
Qty:

Add to Wishlist In Stock

About this item

The Intellinet PoE+ Office Switch is equipped with 16 10/100Base-TX Fast Ethernet ports, eight of which support 802.3af/at Power over Ethernet (PoE/PoE+). Besides being a versatile network LAN switch, it also provides a Power over Ethernet option that supplies power injection to 802.3af/at-compliant devices, such as IP phones, wireless access points and network cameras.

The Intellinet 16-Port Fast Ethernet Rackmount PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), Intellinet suggest the use of an Intellinet PoE/PoE+ Splitter.

Besides providing Power over Ethernet functionality, the PoE Office Switch has some very impressive features as a switch. For starters, the auto features of this switch make installation Plug and Play and hassle free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables for connection to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (either 10 or 100) and intelligently adjusts for compatibility and optimal performance.

What's Included With This Item

  • Intellinet 16-Port Fast Ethernet PoE+ Switch
  • 19" Rackmount Brackets
  • Power Cable
  • User Manual
  • Intellinet 3 Year Warranty

Key Features

  • Save time and money by delivering data and power via existing network cables
  • IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
  • 8 integrated PoE ports (Ports 9 to 16) with a power output of up to 30 watts per port*
  • Total power budget of 65 watts
  • All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
  • 10/100 auto-sensing ports automatically detect optimal network speeds
  • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
  • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
  • Store and forward switching architecture
  • Full/half duplex operation
  • IEEE 802.3x flow control for full duplex
  • Zero packet loss backpressure flow control for half duplex
  • Packet filtering/forwarding rates: 148,800 pps (100 Mbps), 14,880 pps (10 Mbps)
  • Supports 4096 MAC address entries
  • 156 kBytes buffer memory
  • LEDs for power, link/activity and PoE

Technical Specs

Standards IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3af (Power over Ethernet 802.3at Type 1)
IEEE 802.3at (Power over Ethernet 802.3at Type 2)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, full duplex mode)
Media support 10Base-T Cat3, 4, 5 UTP/STP RJ-45
100Base-TX Cat5 UTP/STP RJ-45
Ports 16 RJ45 10/100 Mbps (8 PoE ports)
Packet filter/forwarding rate 148,800 pps (100 Mbps)
14,880 pps (10 Mbps)
Certifications FCC Class A, CE
LEDs Power
Link/activity for 10 and 100 Mbps
PoE (Port 9 to 16)
Power Input: 100 - 240 V AC, 50 - 60 Hz
Power consumption: 65 watts (maximum)
Operating temperature 0 - 40deg.C (32 - 104deg.F)
Operating humidity 10 - 90% RH, non-condensing
Storage temperature -20 - 90deg.C (-4 - 194deg.F)
Housing Metal
Dimensions (W x L x H) 440 x 220 x 44 mm (17.3 x 8.6 x 1.7")
Weight 3.65 kg / 8.0 lbs
