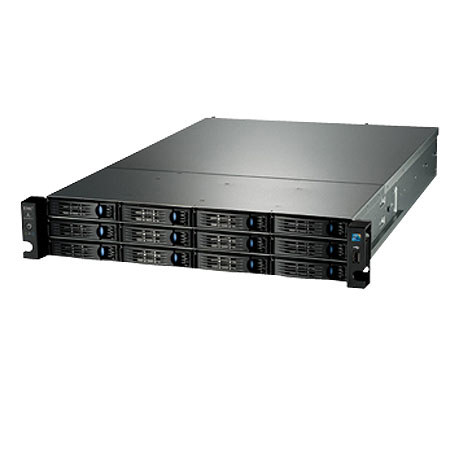

Iomega StorCenter px12-400r Network Storage Array, Server Class 12TB (4 x 3TB) Storage Capacity, 4GB DDR3 Memory, 300 MBps Data Transfer Speed

Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Iomega px12-400r

The Iomega StorCenter px12-400r 12TB Network Storage Array offers high end, enterprise-class network storage features at price points suited for smaller businesses. Powered by enterprise-class EMC storage technology, the StorCenter px12-400r is ideal for production data stores, server virtualization, backup-to-disk target and video surveillance. The px12-400r provides the superior features and reliability that you need for your mission critical data and with built-in McAfee VirusScan Enterprise, your data is safe from viruses and other malicious threats.

The StorCenter px12-400r includes many enterprise-class features, such as the EMC Atmos Cloud Connector, EMC Avamar data deduplication as well as device-to-device data replication to ensure data integrity at both the source and the replication target. Businesses will appreciate extremely high throughput with quad-Gigabit Ethernet connectivity and an Intel Core i3 Processor plus link aggregation (port bonding), Server Class hard drives and the option of solid state drives.

Iomega px12-400r Features

  • Power and Reliability: Built around the Intel Core i3 processor to support demanding workloads like virtualization, deduplication, database management and video surveillance
  • Capacity: Starting at 0TB (diskless), with a capacity of 12TB (4 x 3TB SATA HDDs)
  • Expandability: Add storage capacity by simply adding drives in the unpopulated drive bays. Added drives can be brought into an existing Storage Pool or made into a new Storage Pool. The StorCenter px12 supports read & write on Fat32, NTFS or ext2/ext3 formatted hard disks; read only of external HFS+
  • RAID Support: RAID 1, 10, 5, 6 hot spare, automatic RAID rebuild and hot swap. RAID 0 and JBOD mode also available
  • SSD Support: For I/O intensive applications, the px12-400r can be fitted with solid state drives to boost performance. SSD drives are sold separately
  • Redundant Power Supply: Ships with dual hot swappable power supplies for 1+1 redundancy
  • Storage Pools: Storage Pools group drives of like size and RAID protection together to simplify management. Optimize block storage performance with dedicated iSCSI storage pools
  • Network File Protocols Supported: CIFS/SMB/Rally (Microsoft), NFS (Linux/UNIX), AFP/Bonjour (Apple), FTP, SFTP, TFTP, HTTP, HTTPS, WebDAV, Windows DFS, SNMP
  • iSCSI Target: Provides block-level access for the most efficient storage utilization, especially for backup, database and email application performance. It can be used in parallel with file-level storage access via CIFS/NFS
  • Flexible Configuration: Storage pools with RAID expansion, migration and hot spares. Advanced RAID levels including Hot Spare
  • Server-Class Pedigree: Server class drives compatible with VMware vSphere 5.0, Citrix XenServer, Windows Server 2003, Windows Server 2008 and Windows Server 2008 R2
  • Business-Class Features: Windows Active Directory Trusted Domains, Microsoft Cluster Server and Hyper-V Live Migration support
  • Advanced Networking Capabilities: NIC bonding for failover and load balancing including 802.3ad link aggregation. Jumbo frame support for 4000 and 9000 byte payloads. VLAN Tagging capability to IEEE 802.1Q standard. iSCSI persistent reservations for clustered Microsoft environments
  • Data Replication / Device to Device Data Copy Jobs: Easily copy files to and from attached USB drives or any network share - including Iomega Personal Cloud locations - using the secure rsync or CIFS protocol. Schedule jobs to run on a predetermined schedule
  • Application Manager: Third party applications can be installed using the embedded application manager
  • Data Organization and Access: Windows DFS organizes folders and files on a network, such that they appear to be all in one directory tree on a single Iomega StorCenter system, even if the folders reside on many devices in many different locations
  • Power Savings: Automatic hard drive spin-down assure the most efficient (minimal) power consumption. Scheduled Power: Automatically power on or turn off your Iomega StorCenter at a pre-selected time schedule
  • Uninterruptible Power Supply (UPS) Support: Enables unattended system shutdown via the USB port without data loss in the case of power failure
  • Simple Management: Fast, three step setup with an intuitive web-based interface. Web interface can be accessed locally or remotely
  • Configuration Backup and Restore: Allows you to back up and restore system configuration information. Backing up a configuration saves various system properties, including users, groups, device identification and Share names and permissions
  • System Status: Consolidated resource on space utilization, device information and status. In addition, you can manage controls such as device restart from here
  • SMART Hard Drive Monitor: Continually monitors and reports on the health of all drives in the Iomega StorCenter system
  • Built-in McAfee VirusScan Enterprise: McAfee VirusScan Enterprise with px12-400r gives small businesses the ability to safely deploy network storage in places where previously there was the possibility of virus and/or malware vulnerability
  • Iomega Personal Cloud: Iomega Personal Cloud is a web-based computing architecture that connects your Iomega StorCenter Network Storage Array devices to other individuals and/or devices via the Internet
  • Software Compatibility: Compatible with today's most common backup software, web browsers, media devices and computers

Iomega px12-400r Specifications

Device Type
NAS server
Enclosure Type
Rack-mountable - 2U
Host Connectivity
Gigabit Ethernet
Installed Devices / Modules Qty
4 (installed) / 12 (max)
Total Storage Capacity
Expansion Bays
12 (total) / 0 (free) x hot-swap - 3.5"
Expansion Slot(s)
4 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
3 x Hi-Speed USB - 4 pin USB Type A
Data Transfer Rate
300 MBps
Interface Type
Serial ATA-300
Hard Drive Type
Hot-swap - 3.5"
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ad (LACP), UPnP
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol
FTP, Bonjour, SMB
Network Services Compatibility
Microsoft Active Directory (AD), Apple Bonjour Protocol, DFS, Microsoft CIFS, Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV)
Remote Management Protocol
Networking Type
Network adapter
Power Device
2 ( 2 ) x power supply - hot-plug - plug-in module
Power Redundancy
Power Redundancy Scheme
Voltage Required
AC 120/230 V ( 50/60 Hz )
Processor Installed
Intel Core i3 3.3 GHz
RAM Installed
4GB - DDR3
OS Required
Microsoft Windows XP, Microsoft Windows 7, Red Hat Enterprise Linux 4, Microsoft Windows Vista, Red Hat Fedora Core 5, Red Hat Enterprise Linux 5, Red Hat Fedora Core 6, openSUSE 10.3, Red Hat Fedora Core 7, Red Hat Fedora Core 8, openSUSE 11.3, Debian Linux 4.x, Apple MacOS X 10.5 - 10.7, Ubuntu 7.10 or later
Controller Interface Type
Serial ATA-300
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare
Ambient Temp: Operating
10 to 35 degrees C
Ambient Temp: Non-Operating
-40 to -60 degrees C
Temp Gradient: Operating
12 degrees C per hour
Humidity (non-condensing): Operating
8% to 85% R.H
Humidity (non-condensing): Non-Operating
5% to 95% R.H
Max Wet Bulb: Operating
26.6 degrees C
Max Wet Bulb: Non-Operating
29.4 degrees C
Altitude: Operating
7500 ft
Altitude: Non-Operating
40,000 ft
Dimensions (LxWxD)
21.375x19x3.5" / 54.29x48.26x8.89cm
36.6lbs / 16.60kg
