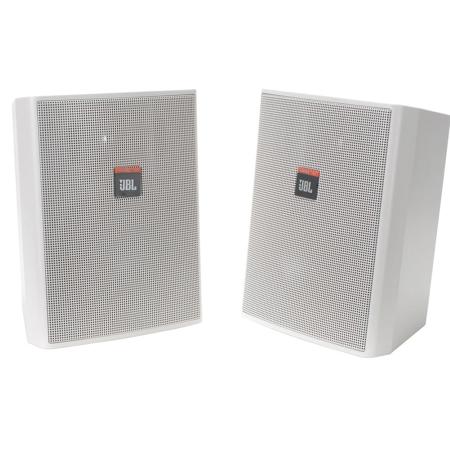

JBL Control 25T Two Way Indoor/Outdoor Speaker with Built-in Transformer, 5.25" Woofer, Pair, White

JBL
SKU: JBLC25TWH MFR: CONTROL 25T-WH

About JBL

The JBL Control 25T (White) is perhaps the most versatile of JBL Professional's Control Contractor Series indoor/outdoor loudspeaker. Its robust nature makes the Control 25T a perfect choice for restaurants, health clubs, outdoor theme and water parks or other applications where foreground/background music and paging are required. The Control 25T can be used in either 70.7V or 100V distributed line sound systems. Taps are provided at 30W, 15W and 7.5W (plus a 3.7W tap for use on 70.7V systems only).

The unique and global patent pending InvisiBall mounting hardware is included in each system and makes short work of permanent installation. The InvisiBall mounting method adds the benefit of vertical rotation of up to 37Deg. off-axis and horizontal rotation of up to 44Deg. off-axis. Because InvisiBall adjustments are made through a hidden access behind the logo badge, the grill never needs to be removed and there exists a high degree of theft deterrence as well.

The Control 25T readily accepts a variety of paints and finishes to match any decor. Weather resistance is maximized by coating the woofer cone in polypropylene and terminating its circumference in JBL's WeatherEdge, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance against sun, salt and moisture. Zinc plated grilles resist rusting in the harshest conditions.

JBL Features

  • 150 watts power capability
  • Isolation transformer for 70.7V/100V distributed-line sound systems
  • Weather resistant enclosure and transducers
  • Built-in InvisiBall mounting hardware
  • 5.25" Polypropylene coated woofer, 0.75" Titanium coated horn
  • 90Deg. x 90Deg. high frequency horn
  • Overload Protection Circuitry
  • Readily paintable

JBL Specifications

Frequency Range (-10 dB)
80 Hz to 15 kHz
Power Capacity
Components and Network: 150 Watts Continuous Program
Transformer: Per each listed tap rating (IEC pink noise, 100 hrs)
Transformer Taps
70V taps: 3.7W, 7.5W, 15W, 30W 100V taps: 7.5V, 15W, 30W
Nominal Sensitivity
70.7V Input/100V Input (dB-SPL@1m)=: Tap 1: 94dB/97dB, Tap 2: 97dB/100dB, Tap 3: 100dB/102dB: Tap #4 102dB/(do not use)
Directivity Factor (Q)
5.3
Directivity Index (DI)
7.2
Crossover Frequency:
3.0 kHz
LF Driver
135 mm (5.25 in) Polypropylene coated paper with WeatherEdge
HF Driver
19 mm (.75 in) Titanium coated polycarbonate
Enclosure Material
HIPS (High Impact Polystyrene)
Overload Protection
Full-Range power limiting to protect network and transducers
Termination
Spring terminals, accepts banana plug
Environmental
Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
Dimensions
9.3 x 7.4 x 5.8 in. (236 x 188 x 149 mm)
Weight
5 lbs. (2.3 kg) each
