JBL

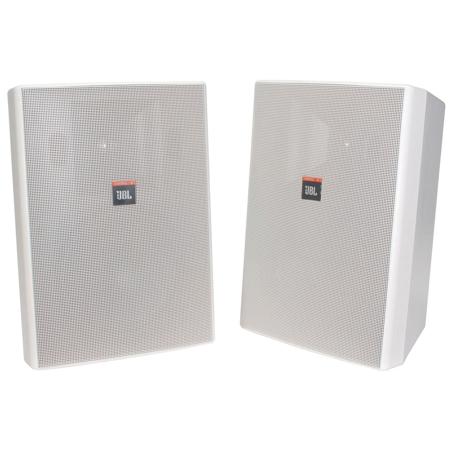

JBL Control 28T-60 Two Way Indoor/Outdoor Paintable Weather Resistant Speaker with Built-in Transformer, 8" Woofer, Pair, White

SKU: JBLC28T60WH MFR: CONTROL 28T-60-WH
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$634.00 List Price

Our Price

$514.00 $21 per week
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About this item

The JBL Control 28T-60 Two Way Indoor/Outdoor Speaker offers a rich sonic character making it a perfect choice for restaurants, health clubs, under balcony, outdoor theme & water parks, or other applications where foreground/ background music and paging are required. The Control 28T-60 can be used in either 70.7V or 100V distributed-line sound systems. Taps are provided at 60W, 30W and 15W (plus a 7.5W tap for use on 70.7V systems only).

The unique InvisiBall mounting hardware is included in each system and makes short work of permanent installation. The InvisiBall mounting method adds the benefit of vertical rotation of up to ±37Deg. and horizontal rotation of up to ±44deg.. Because InvisiBall adjustments are made through a hidden access behind the logo badge, the grill never needs to be removed, while providing a high degree of theft deterrence as well.

Weather resistance is maximized by coating the woofer cone in polypropylene and terminating its circumference in JBL's WeatherEdge, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance against sun, salt and moisture. Zinc plated grilles resist rusting in the harshest conditions.

What's Included With This Item

  • JBL Control 28T-60 Two Way Paintable Speaker
  • InvisiBall Assembly
  • 6 mm x 180 mm Hex Key
  • JBL 5 Years Limited Warranty

Key Features

  • Isolation transformer for 70.7V/100V distributed-line sound systems
  • 175 Watts power capability
  • Weather resistant enclosure and transducers
  • Built-in InvisiBall mounting hardware
  • 8 in. Polypropylene coated woofer, 1 in. Titanium coated horn loaded tweeter
  • Readily paintable
  • 90Deg. x 90Deg. high frequency horn
  • Overload protection circuitry

Technical Specs

Frequency Range (-10 dB) 55Hz to 15kHz
Power Capacity Components and Network: 175 Watts Continuous Program
Transformer: Per each listed tap rating (IEC pink noise, 100 hrs)
Transformer Taps 70V taps: 7.5W, 15W, 30W, 60W
100V taps: 15W, 30W, 60W
Nominal Sensitivity 70.7V Input/100V Input (dB-SPL@1m)=: Tap 1: 99dB/102dB, Tap 2: 102dB/105dB, Tap 3: 105dB/107dB, Tap 4: 107dB/(do not use)
Nominal Coverage 90deg. x 90deg.
Directivity Factor (Q) 7.5
Directivity Index (DI) 8.8
Crossover Frequency 2.8kHz
LF Driver 200mm (8 in) Polypropylene cone with WeatherEdge
HF Driver 25mm (1 in) Titanium coated polycarbonate
Enclosure Material HIPS (High Impact Polystyrene)
Overload Protection Full-Range power limiting to protect network and transducers
Termination Spring terminals, accepts banana plug
Environmental Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
Dimensions 15.0 x 11.0 x 8.6 in. (380 x 280 x 220 mm)
Weight 14.3 lbs. (6.5kg) each
