JBL

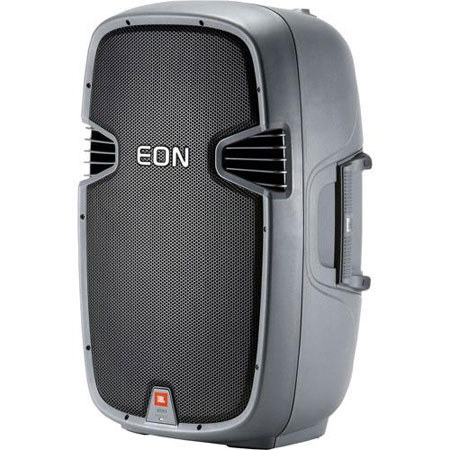

JBL EON 315 Portable Self-Powered 15" Two-Way Bass-Reflex Design PA Speaker System with 280W Total Power, XLR/TRS Combo Input

SKU: JBLEON315 MFR: EON315
Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$679.00 List Price

Our Price

$399.99 $16 per week
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About the JBL EON 315 Portable

The JBL EON315 is a 15-inch, two-way, powered, portable speaker system. It is a complete self contained sound reinforcement system, capable of full-bandwidth reproduction at high levels with the added benefit of a microphone pre-amp enabling the direct connection of a dynamic microphone. The EON315 is comprised of a 380 mm (15") JBL woofer, a 25.4 mm (1") neodymium high frequency compression driver coupled to a 100Deg.H by 60Deg.V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection and system EQ functionality.

JBL EON 315 Portable Includes

  • JBL EON 315 Self-Powered 15" Two-Way Speaker System
  • AC Cable
  • JBL 5 Years Limited Warranty

JBL EON 315 Portable Features

  • 280 watt Powered Speaker System
  • Light Weight. True portability weighing only 15.9 kg (35 lb)
  • Multiple handles for easy transport
  • 15" JBL low-frequency driver
  • 1" throat diameter next generation JBL neodymium compression driver
  • Efficient Class-D digital amplifier technology
  • 100Deg. H x 60Deg. V asymmetrical wave guide for uniform audience coverage
  • Line level and direct microphone input capability
  • Selectable Pre-engineered EQ settings
  • Loop thru signal flow for extended system application and easy "daisy-chain" connections
  • Integrated M10 suspension points for easy rigging
  • Multi angle enclosure for main or monitor applications
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Highly designed composite enclosures for durability, lightweight and acoustic performance

JBL EON 315 Portable Specifications

Frequency Range (-10 dB) 38 Hz - 20 kHz (EQ in 'Flat' position)
Coverage Pattern 100Deg. H x 60Deg. V nominal
Crossover Frequency 1.8 kHz
System Power Rating 280 W continuous, 560 W peak
Maximum SPL 127 dB
Boost EQ LF +3 dB Shelving Filter @ 150 Hz
HF +2.5 dB Shelving Filter @ 4 kHz
LF Driver 1 x M115-2 380 mm (15 in)
HF Driver 1 x JBL 2414H-1 25.4 mm (1 in) polymer diaphragm, neodymium compression driver
Input connector Balanced XLR / 1/4 inch TRS combo jack
Output connector Balanced male XLR, +20 dBu (peak) o/p level
Suspension / Mounting 36 mm pole socket with stabilizing screw, 4 x M10 suspension points, 1 x M10 pull-back point
AC input 120 - 240 V, 50/60 Hz
Dimensions (H x W x D) 685 mm x 438 mm x 366 mm (27 in x 17.3 in x 14.4 in)
Weight 15.9 kg (35 lb)
