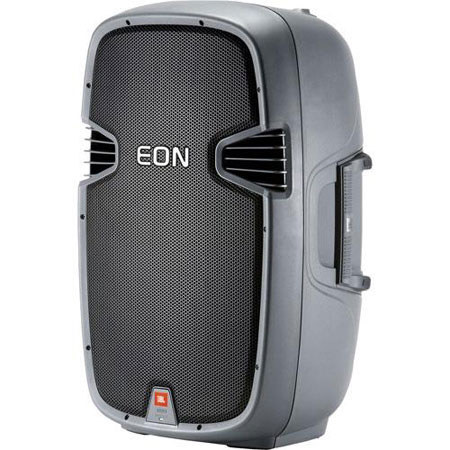

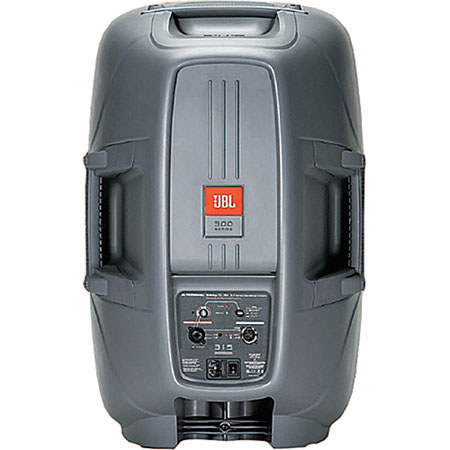

The JBL EON315 is a 15-inch, two-way, powered, portable speaker system. It is a complete self contained sound reinforcement system, capable of full-bandwidth reproduction at high levels with the added benefit of a microphone pre-amp enabling the direct connection of a dynamic microphone.
The EON315 is comprised of a 380 mm (15 in) JBL woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100deg. H by 60deg. V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection and system EQ functionality. The input panel offers XLR or 1/4-inch TRS phone jack compatibility. Selectable input sensitivities allow a broad range of devices to be properly matched, from the output of a mixer to an MP3 player or a dynamic microphone.
A balanced XLR loop through output connector enables the simple 'daisy chaining' of additional EON systems if more coverage and level is required. Pre-engineered system EQs allow for matching the settings to the actual source material. In the "cut" position, maximum level can be achieved for speech reproduction by reducing need to reinforce the lower frequencies. This is also a typical setting when using the system as a floor monitor, reducing low frequency build-up which occurs naturally when placed on a floor.
The "flat" setting is ideal for live music and the "boost" for reproducing low level pre-recorded music, delivering extra low and high frequency energy. The signal present and limit lights indicate performance status. In addition to acoustic performance, the EON315 features three full size deep-well handles, light weight and balanced ergonomics.
The generation of EON products offers true portability and ease of handling. Five standard M10 rigging points and integrated pole mount socket increase the system's utility. The extremely rugged copolymer enclosure has been designed for main and 45deg. monitor orientation in the left and right hand configuration. A full screen-backed steel grille offers additional protection for both the woofer and compression driver components.
|Frequency Range (-10 dB)||38 Hz - 20 kHz (EQ in 'Flat' position)|
|Frequency Response (±3 dB)||50 Hz - 18 kHz (EQ in 'Flat' position)|
|Coverage Pattern||100deg. H x 60deg. V nominal|
|Directivity Index (DI)||9 dB|
|Directivity Factor (Q)||8|
|Crossover Frequency||1.8 kHz|
|System Power Rating||280 W continuous, 560 W peak|
|LF Power amp||220 W continuous at driver impedance|
|HF Power amp||60 W continuous at driver impedance|
|Distortion||Less than 0.1% at rated power|
|Maximum SPL||127 dB|
|Signal indicators||Limit: Red LED indicates input overload condition
Signal: Green LED indicates signal present
Mic/Line: Red LED indicator
|Input Gain||Mic position: -Infinity to +40 dB
Line position: -Infinity to +4 dB (+20 dBu Max signal input)
|Input Impedance||64 K Ohms (balanced), 32 K Ohms (unbalanced)|
|Boost EQ||LF +3 dB Shelving Filter @ 150 Hz
HF +2.5 dB Shelving Filter @ 4 kHz
|Low Cut Filter||Preset high pass @ 120 Hz|
|LF Driver||1 x M115-2 380 mm (15 in)|
|HF Driver||1 x JBL 2414H-1 25.4 mm (1 in) polymer diaphragm, neodymium compression driver|
|Input connector||Balanced XLR / ¼ inch TRS combo jack|
|Output connector||Balanced male XLR, +20 dBu (peak) o/p level|
|XLR Pin Assignments||Pin 2 (+), Pin 3 (-), Pin 1 (GND)|
|Enclosure||PP impact copolymer, multi-purpose main & monitor orientation|
|Handles||One left/right side, one on top|
|Suspension / Mounting||36 mm pole socket with stabilizing screw, 4 x M10 suspension points, 1 x M10 pull-back point|
|Grille||Powder coated perforated steel with acoustically transparent black screen backing|
|AC input||120 - 240 V, 50/60 Hz|
|Dimensions (H x W x D)||685 mm x 438 mm x 366 mm (27 in x 17.3 in x 14.4 in)|
|Weight||15.9 kg (35 lb)|
