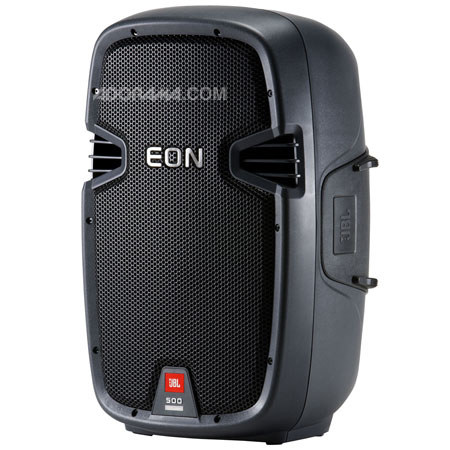

JBL EON 510 Bi-Amplified 10" PA Speaker System

SKU: JBLEON510 MFR: EON510
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$779.00 List Price

Our Price

$299.99
Qty:

Add to Wishlist

Protect your investment

About the JBL EON 510 Bi-Amplified

The EON510 is a 10-inch, two-way, powered, portable speaker system. Capable of reproducing full bandwidth sound at high levels it offers the additional utility of a 3 channel built-in mixer. The EON510 is comprised of a 254 mm (10 in)Differential Drive woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100 deg. H by 60 deg. V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection and mixer functionality.

The mixer offers XLR or 1/4-inch TRS phone jack compatibility. Selectable input sensitivities allow a broad range of devices to be properly matched. A unique mix/loop signal flow router provides opportunities for daisy chaining or gigging with the built-in mixer only. Pre-engineered system EQs allow for matching the settings to the actual source material.

In the "cut" position maximum level can be achieved for speech reproduction by reducing need to reinforce the lower frequencies. This is also a typical setting when using the system as a floor monitor, reducing low frequency build-up which occurs naturally when placed on a floor. The "flat" setting is ideal for live music and the "boost" for reproducing low level pre-recorded music, delivering extra low and high frequency energy. The signal present and limit lights indicate performance status. An additional switch is provided to defeat the illuminated logo in theatre applications.

JBL EON 510 Bi-Amplified Includes

  • JBL EON 510 Bi-Amplified 10 inch Speaker System
  • AC Cable
  • JBL Warranty

JBL EON 510 Bi-Amplified Features

  • 280 watt High-Performance Powered Speaker System
  • Ultra Light Weight and Extremely Compact
  • Soft touch top grip for easy handling
  • 10" Differential Drive low-frequency driver with neodymium magnet for low-distortion and light weight
  • 1" throat diameter next generation JBL neodymium compression driver
  • Efficient Class-D digital amplifier technology
  • Built-in 3 Channel Mixer
  • 100 x 60 deg. (H x V) asymmetrical waveguide for uniform audience coverage
  • Line level and direct microphone input capability
  • Selectable Pre-engineered EQ settings
  • Unique Mix/Loop signal flow function for extended system application
  • Easy "daisy-chain" connections for extending the system
  • Integrated M10 suspension points for easy rigging
  • Multi angle enclosure for main or monitor applications
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Highly designed composite enclosures for durability, lightweight and acoustic performance

JBL EON 510 Bi-Amplified Specifications

System Type Self powered 10", two-way, bass-reflex design
Frequency Range (-10 dB): 58 Hz - 18.5 kHz (EQ in 'Flat' position)
Frequency Response (±3 dB): 70 Hz - 17 kHz (EQ in 'Flat' position)
Coverage Pattern: 100 deg. x 60 deg. (H x V) nominal
Directivity Index (DI) 9 dB
Directivity Factor (Q) 8
Crossover Frequency: 1.8 kHz
System Power Rating 280 W continuous, 560 W peak
LF Power amp: 220 W continuous at driver impedance
HF Power amp 60 W continuous at driver impedance
Distortion Less than 0.1% at rated power
Maximum SPL 121 dB
Signal indicators Limit: Red LED indicates input overload condition
Signal: Green LED indicates signal present
Mic/Line: Red LED indicator
Input Gain (input 3) Mic position: -Infinity to +40 dB
Line position: -Infinity to +4 dB (+20 dBu Max signal input)
Input Gain (input 1 & 2) -Infinity to +4 dB (+20 dBu Max signal input)
Input Impedance 64 K Ohms (balanced), 32 K Ohms (unbalanced)
Boost EQ LF +3 dB Shelving Filter at 150 Hz
HF +2.5 dB Shelving Filter at 4 kHz
Low Cut Filter Preset high pass at 120 Hz
LF Driver 1 x JBL 261F 254 mm (10 in) Differential Drive integrated woofer with dual 1.5" voice coils
HF Driver 1 x JBL 2414H-1 25.4 mm (1 in) neodymium compression driver
Input Connections XLR/TRS Combo x 1
1/4" TRS x 2
Output (Loop/Mix switch) Balanced male XLR, +20 dBu (peak) o/p level in MIX position
XLR Pin Assignments Pin 2 (+), Pin 3 (-), Pin 1 (GND)
Limiting/Protection Dynamic Limiter
Enclosure: PP impact copolymer, multi-purpose main & monitor orientation
Handles One on top with rubber grip
Suspension / Mounting 36 mm pole socket with stabilizing screw, 3 x M10 suspension points, 1 x M10 pull-back point
Grille Powder coated perforated steel with acoustically transparent black screen backing
AC input 120 - 240 V, 50/60 Hz
Dimensions (H x W x D) 490 x 313 x 262mm / 19.3 x 12.3 x 10.3in
Weight 7.7kg / 17lbs
