JBL EON 515XT Self-Powered 15" Two Way Bass-Reflex Design Speaker System with 3-Channel Mixer, 625 Watts Power Rating

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$899.00 List Price

Our Price

$499.00 $20 per week
Free Expedited Shipping
Add to Wishlist

Protect your investment

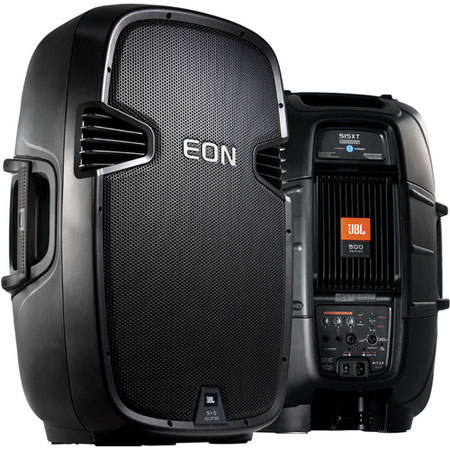

About the JBL 515XT AC System

The JBL EON 515XT Powered Bi-Amped Speaker System delivers 625 watts of power, features a 3-channel mixer and a lightweight enclosure due to its 15" neodymium driver. The EON 515XT improves on a tested design with an improved sensitivity, noise floor and user selectable EQ control. The entire system has been re-voiced for enhanced performance and even greater sound quality. The enclosure features multiple handles, a 36mm pole mount socket and multiple angles for PA and floor monitoring applications.

JBL 515XT AC System Includes

  • JBL EON 515XT Self Powered 15" Two Way Speaker System
  • Power Cord
  • User Guide
  • JBL 5 Years Limited Warranty

JBL 515XT AC System Features

  • Highly designed composite enclosures for durability, lightweight and precise acoustic performance
  • True portability weighing only 14.8 kg (32.5 lb)
  • Multiple handles with comfort rubber grips for easy transport
  • Multi angle enclosure for main PA or floor monitor applications
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Integrated M10 suspension points for easy fixed installation
  • 100deg. H x 60deg. V asymmetrical wave guide for uniform audience coverage
  • 15" Differential Drive low-frequency driver with neodymium magnet for low-distortion and light weight
  • 1" throat diameter next generation JBL neodymium compression driver
  • Efficient Crown Hybrid Class-D amplifier technology
  • 625 watt high-performance powered speaker system
  • Intuitive onboard 3-Channel Mixer
  • Line level and direct microphone input capability
  • User adjustable Bass and Treble controls
  • Unique Mix/Loop signal flow function for extended system application
  • Easy "Daisy-Chain" connections for extending the system

JBL 515XT AC System Specifications

Maximum SPL Output 132 dB
Frequency Range (-10 dB) 39 Hz - 20 kHz
Frequency Response (±3 dB) 42 Hz - 18 kHz
EQ Individual Bass and Treble controls, center detent, +/-6 dB cut and boost
Amplifier Design Crown Class-D
System Power Rating 625 Watts (525 + 100)
LF Driver 1 x JBL 265F-1 380 mm (15" ) Differential Drive integrated woofer with dual 2" voice coils
HF Driver 1 x JBL 2414H 37.5 mm (1.5" ) annular polymer diaphragm, neodymium compression driver
Coverage Pattern 100deg. x 60deg. nominal
Crossover Frequency 1.7 kHz
Enclosure Material Polypropylene, multi-purpose main & monitor
Suspension / Mounting 36 mm pole socket with stabilizing screw, 5 x M10 suspension points
Handles One left / right side, one on top with rubber grip
Grille Powder coated perforated steel with acoustically transparent cloth backing
Dimension (H x W x D) 673 mm x 406 mm x 368 mm (26.5" x 16" x 14.5")
Weight 14.8 kg (32.5 lbs.)
