JBL

JBL EON 518S Portable Self-Powered 18" Bass-Reflex Design Subwoofer System, 1000W Peak Power, 120 Hz Crossover Frequency

SKU: JBLEON518S MFR: EON518S
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,129.00 List Price

Our Price

$699.99 $28 per week
Free Shipping
Qty:
Add to Wishlist

Protect your investment

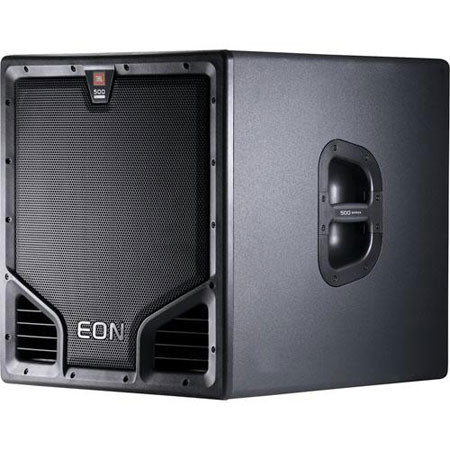

About the JBL EON 518S Portable

The JBL EON 518S is a professional-quality front-firing subwoofer ideal for live sound reinforcement, music playback in educational or institutional venues and more. The compact enclosure houses an 18" neodymium driver, powered by a Class-D 500W digital amplifier to provide strong, clear bass without distortion.

The subwoofer has XLR inputs and loop-thru connectors, as well as a 1/4" speaker input. A polarity switch is provided to address phasing issues and a high-pass filter is available on the loop-thru outputs. An integrated pole mount socket lets you easily mount a loudspeaker on top of the subwoofer, while built-in handles with rubber grips provide a comfortable way to transport the unit.

JBL EON 518S Portable Includes

  • JBL EON 518S Self-Powered 18" Subwoofer System
  • Power Cord
  • JBL 5 Years Limited Warranty

JBL EON 518S Portable Features

  • 500 watt High-Performance Powered Subwoofer System
  • True portability weighing only 29.5 kg (65 lb)
  • Compact enclosure
  • Designed handles with comfort rubber grips for easy transport
  • 18" Differential Drive low-frequency driver with neodymium magnet for low-distortion and light weight
  • Efficient Class-D digital amplifier technology
  • Stereo balanced loop-through outputs
  • Integrated and switchable High Pass Filter on loop-through outputs
  • Easy "daisy-chain" connections for extending the system
  • Polarity reverse selector
  • Integrated 36 mm pole mount socket for sub/satellite applications
  • Rugged DuraFlex finish

JBL EON 518S Portable Specifications

Frequency Range (-10) dB 36 Hz -130 Hz
Crossover Frequency 120 Hz (HPF selectable on outputs)
System Power Rating 500 W continuous, 1000 W peak
Maximum SPL 129 dB
LF Driver 1 x JBL 268G 460 mm (18") Differential Drive integrated woofer with dual voice coils, 4 ohm impedance
Enclosure 18 mm plywood
Suspension / Mounting 36 mm pole socket on top
Grille Powder coated perforated steel with acoustically transparent black screen backing
Input Connectors Balanced XLRs with loop through (stereo) to balanced XLR satellite outputs. 1/4 inch speaker level input
AC input 120 - 230 V, 50/60 Hz
Dimensions (H x W x D) 595 mm x 569 mm x 652 mm (23.4 in x 22.4 in x 25.7 in)
Weight 29.5 kg (65 lb)
