JBL

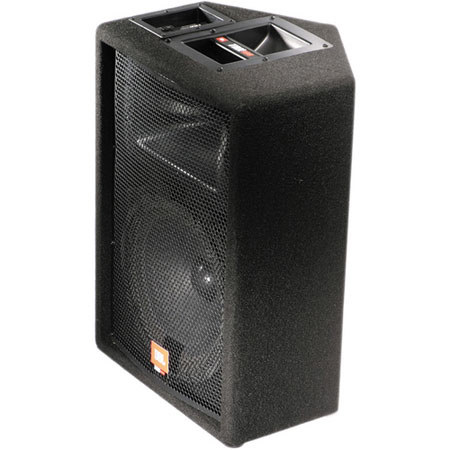

JBL JRX112M 12" Two-Way Stage Monitor Loudspeaker System, 70 Hz - 12 kHz Frequency Response

SKU: JBLJRX112M MFR: JRX112M
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$289.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the JBL JRX112M

The JBL JRX112M is a portable 12" 250-watt Two-Way Stage Monitor designed to handle power more efficiently and reliably, producing a smoother, cleaner sound than other monitors in its class. It features the roadworthy construction, flexible mounting capabilities and component protection and performance required for gigging musicians, house of worship and institutional installs.

JBL JRX112M Features

  • JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edge wound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling
  • Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability
  • The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating
  • Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion and smoother frequency response
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance
  • SonicGuard protects the high frequency driver from excess power without interrupting the performance
  • Non-resonant, all-steel handles are used
  • Attractive 18-gauge hexagon perforated, steel grille protects components from damage
  • Dual-angle pole-mount socket allows the speaker to tilt 10deg.for more uniform audience coverage

JBL JRX112M Specifications

Power Capacity 250-Watts Continuous
1000-Watts Peak
Frequency Range 60 Hz - 16 kHz (-10 dB)
Frequency Response 70 Hz - 12 kHz (±3 dB)
Nominal Impedance 8 ohms
Sensitivity 99 dB SPL (1w/1m)
Recommended Amplifier Power 250 W to 500 W into 8 ohms
Maximum SPL 129 dB
Nominal Dispersion 90deg. x 50deg.
Crossover Frequency 1.8 kHz
High Frequency Driver 1" Horn
Low Frequency Driver 12" Woofer
Input Connectors Neutrik Speakon NL-4 (x1); .25 in TS phone jack (x1); parallel
Dimensions (H x W x D) 572 mm x 394 mm x 318 mm (22.5 in x 15.5 in x 12.5 in)
Weight 19.5 kg (43 lb)
