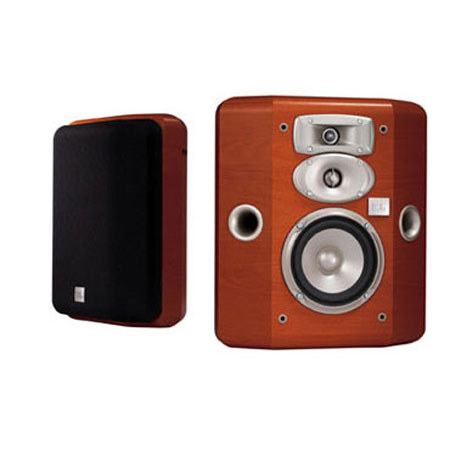

JBL L810 3-Way 5-1/4" (130mm) Pair of Bookshelf/Wall-Mount Satellite Speaker, Cherry
What's Included With This Item:
- JBL 4 x Self-Adhesive Rubber Mounting Pads
- Owner's Guide
- JBL 5 Years Warranty
The JBL L810 features dual front-facing FreeFlow bass ports for outstanding bass performance with minimum distortion, even at high listening levels. The Studio L series was designed for both professional and entertainment enthusiasts with the capability to deliver crystal clear dialog and tight sound response. It features a 5-1/4" Polyplas woofer cone with an oversized Kapton voice coil and HeatScape motor.
In addition, it offers a 1" pure-titanium dome tweeter mounted in Elliptical Oblate Spheroidal (EOS) waveguides and a 3/4" Mylar dome mounted in a Bi-Radial horn with a cast aluminum chassis. It features 75W RMS/300W peak power, Low-diffraction, IsoPower baffle, Straight-Line Signal Path (SSP) crossover network, magnetic shielding and heavy-duty (gold-plated) binding posts.
With dual front-facing FreeFlow bass ports, it provides superior bass quality with minimum distortion, even at high listening levels. Its stylish design, slender profile and wood-like craftsmanship will complement any room's decor. If you want a quality, well-constructed bookshelf speaker, look no further than the JBL L810.
|Maximum Recommended Amplifier Power||150W|
|Power Handling (Continuous/Peak)||75W/300W|
|Nominal Impedance||8 Ohms|
|Frequency Response (±3dB)||60Hz - 40kHz|
|Crossover Frequencies||3.5kHz, 20kHz|
|Ultrahigh-Frequency Driver||3/4" (19mm) Mylar dome, cast-aluminum chassis, mounted in a Bi-Radial horn|
|High-Frequency Transducer||1" (25mm) Pure-titanium dome in JBL EOS waveguide, cast-aluminum chassis|
|Low-Frequency Transducer||5-1/4" (130mm) PolyPlas cone with rubber surround, cast-aluminum chassis, HeatScape motor structure, Symmetrical Field Geometry (SFG), oversized Kapton voice coil, magnetic shorting ring|
|Baffle||Low-diffraction, IsoPower baffle|
|Port||Dual FreeFlow, on front|
|Network||Straight-Line Signal Path (SSP)|
|Terminals||Gold-plated, 5-way binding posts, bi-wirable|
|Dimensions (H x W x D)||14-1/4" x 12-1/4" x 5" (362mm x 311mm x 127mm)|
|Weight per Speaker||14 lb (6.4kg)|
|Warranty||JBL 5 years warranty|
