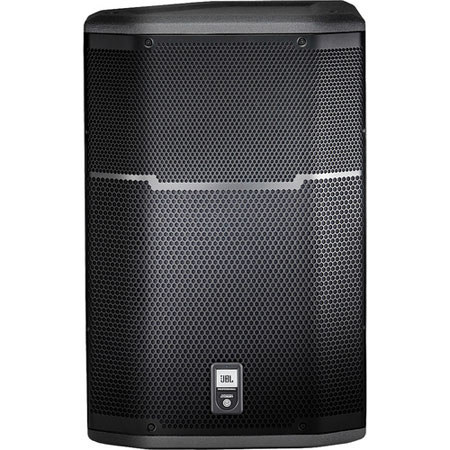

JBL PRX615M 15" Two-Way Self-Powered Bass-Reflex Loudspeaker, 54Hz-18kHz Frequency Response, 230V (Europe)

SKU: JBLPRX615M23 MFR: PRX615M/230
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,449.00 List Price

Our Price

$899.00 $36 per week
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About the JBL PRX615M

The JBL PRX615M 15" two-way Self-Powered Bass-Reflex Loudspeaker is the most recognizable form of portable PA loudspeaker and offers the perfect balance between size and performance. The PRX615M truly is an exception; it is small, light weight, versatile and powerful. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJs when portability is key or when hung by the suspension points, an exceptional light-duty installation speaker. The JBL PRX615M speaker is designed to excel in the real world of sound reinforcement where challenging audio environments, high ambient noise levels and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, using only a pair of speakers, the PRX615M delivers the optimum balance. For live music, recorded music playback and speech, the user has the option of tailoring the EQ, 'flat' for speech intelligibility and 'boost' for enhanced bass and crisp highs in recorded music playback. A microphone can be directly connected to the speaker input for quick on-the-fly PA applications. Coupled with a PRX600 sub-woofer, the system becomes an incredibly efficient, loud, full-range sound system.

The PRX615M is comprised of a 380 mm (15 in) 265F-1 Differential Drive dual voice-coil and magnetic gap, neodymium woofer, a 2408H-1 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90deg. x 50deg. horn, all driven by 1000 watt (dual 500 watt) Crown Class-D power amplifier. A proprietary DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

The amplifier input panel offers XLR or ¼" jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.

The PRX615M cabinet is built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, lightweight poplar plywood made structurally sound with tongue and groove joints. JBL PRX615M cabinet is protected by JBL's tour proven DuraFlex finish. Grilles are made from dent-resistant, 16-gauge steel and handles are made from lightweight, glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14-gauge steel and have been tested with a yield-strength of 1000 lbs each.

JBL PRX615M Includes

  • JBL PRX615M 15" Two-Way Self-Powered Bass-Reflex Loudspeaker
  • Power Cable
  • JBL 5 Years Limited Warranty

JBL PRX615M Features

  • Maximum SPL Output 135db peak
  • 380 mm (15 in) Differential Drive dual voice-coil and magnetic gap, neodymium woofer
  • 37.5mm (1.5 in) annular polymer diaphragm, neodymium magnet compression driver
  • 1000 Watt (dual 500 watt) Class-D, Crown digital amplifier
  • DSP input section with dbx Type IV limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
  • Professional XLR line and ¼" Mic/Instrument inputs, with loop through
  • Integrated 36mm dual-angle pole mount socket
  • Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
  • 8 M10 Suspension points and 1 pullback point

JBL PRX615M Specifications

Maximum SPL Output 135 dB (Full Range) peak, 134 dB (Monitor) peak
Frequency Range (-10 dB) Full Range: 45 Hz - 19 kHz
Monitor (vertical orientation): 55 Hz - 19 kHz
Monitor (monitor orientation): 48 Hz - 20 kHz
Frequency Response (±3 dB) Full Range: 54 Hz - 18 kHz
Monitor (vertical orientation): 75 Hz - 18.5 kHz
Monitor (monitor orientation): 60 Hz - 18 kHz
Input Connectors Balanced XLR / 1/4" combo jack with XLR loop-through
Input Impedance 20K ohms (balanced), 10K ohms (unbalanced)
Signal indicators Limit: Red LED indicates limiter active condition
Signal: Green LED indicates signal present
EQ Presets for use in Main and Monitor position
Dynamic Control (Input) dbx Type IV limiter circuit
Crossover Modes DSP controlled. LF: 48 dB/Oct filter slope High & Low Pass; HF: 36 dB/Oct High Pass
Crossover Frequency 1.8 kHz
Amplifier Design Crown Class D
Power Rating 1000 W (2 x 500)
LF Driver 1 x JBL 265F-1 380 mm (15") Differential Drive dual voicecoil and magnetic gap, neodymium woofer
HF Driver 1 x JBL 2408H-1 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver
Coverage Pattern 90deg. x 50deg. nominal
Directivity Index (DI) 10.0 dB
Directivity Factor (Q) 10.0
Enclosure Asymmetrical, 18 mm, plywood
Suspension/ Mounting Dual 36 mm pole socket, 8 x M10 Suspension Points and 1 x M10 Pull-Back Point
Transport Integrated handle with backing cup
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustically transparent black cloth backing
Speaker: Input Connectors Balanced XLR / 1/4" combo jack with XLR loop-through
Dimensions (H x W x D) 660 mm x 429 mm x 414 mm (26" x 16.9" x 16.3")
Weight 19.7 kg (43.4 lb)
