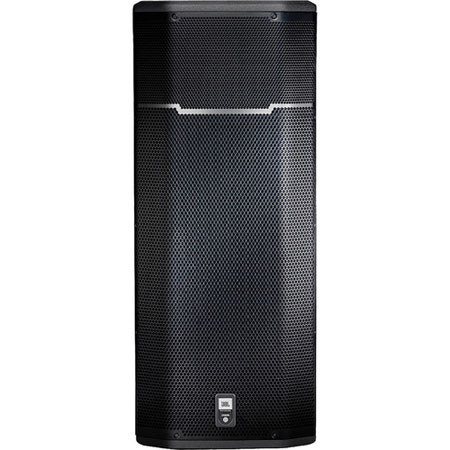

JBL PRX625 15" Two-Way Self-Powered Bass-Reflex Speaker, 55Hz-17.5kHz Flat Frequency Response, 230V (Europe)

JBL
SKU: JBLPRX625230 MFR: PRX625/230

List Price: $1,749.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $54.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $79.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $222.95
31% Off

Our Price

$1,199.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About JBL PRX625

The JBL PRX625 is a self-powered, lightweight two way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth. The PRX625 is comprised of two 380 mm (15 in) 265F-1 Differential Drive woofers, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90deg. by 50deg. horn, all driven by a multi-channel Crown Class-D power amplifier. A proprietary DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

The amplifier input panel offers XLR or ¼ in jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.

The JBL PRX625 cabinet is built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, lightweight poplar plywood made structurally sound with tongue and groove joints. The JBL PRX625 cabinet is protected by JBL's tour proven DuraFlex finish. Grilles are made from dent-resistant 16-gauge steel and handles are made from lightweight, glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14-gauge steel and have been tested with a yield-strength of 1000 lbs each.

JBL PRX625 Features

  • Maximum SPL Output 135db peak
  • 2 x 380 mm (15 in) Differential Drive dual voice-coil and magnetic gap, neodymium woofers
  • 37.5mm (1.5 in) annular polymer diaphragm, neodymium compression driver
  • 1500 Watt (3 x 500 watt) Class-D, Crown digital amplifier
  • DSP input section with dbx Type IV limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
  • Professional XLR line and ¼" Mic/Instrument inputs, with loop through
  • Obsidian DuraFlex coated plywood construction
  • Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
  • 8 M10 Suspension points and 1 pullback point

JBL PRX625 Specifications

Maximum SPL Output
139 dB peak
Frequency Range (-10 dB)
Flat: 40 Hz-19.5 kHz
Boost: 39 Hz-19.5 kHz
Frequency Response (±3 dB)
Flat: 55 Hz-17.5 kHz
Boost: 50 Hz-18 kHz
Input Connectors
Balanced XLR / ¼" combo jack with XLR loop through
Input Impedance
20K ohms (balanced), 10K ohms (unbalanced)
Signal indicators
Limit: Red LED indicates limiter active condition
Signal: Green LED indicates signal present
EQ
Presets for use in Main and Boost position
Dynamic Control (Input)
dbx Type IV limiter circuit
Crossover Modes
DSP controlled. LF: 48 dB/Oct filter slope High & Low Pass; HF: 36 dB/Oct High Pass
Crossover Frequency
1.8 kHz
Amplifier Design
Crown Class D
Power Rating
1500 W (3 x 500)
LF Driver
2 x JBL 265F-1 380 mm (15") Differential Drive dual voicecoil and magnetic gap, neodymium woofer
HF Driver
1 x JBL 280H-1 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver
Coverage Pattern
90deg. x 50deg. nominal
Directivity Index (DI)
10.2 dB
Directivity Factor (Q)
10.1
Enclosure
Trapezoidal, 18 mm, plywood
Suspension/ Mounting
8 x M10 Suspension Points and 1 x M10 Pull-Back Point
Transport
Integrated handle with backing cup
Grille
Powder coated, Obsidian, 16 gauge perforated steel with acoustically transparent black cloth backing
Speaker Input Connectors
Balanced XLR / ¼" combo jack with XLR loop through
Dimensions (H x W x D)
1,053 mm x 430 mm x 413 mm (41.47" x 16.9" x 16.27")
Weight
27.2 kg (60 lb)
