Jobu Design Panoramic Gimbal Head

See all Jobu Design items
Jobu Design : Picture 1 thumbnail Jobu Design : Picture 2 thumbnail

Our Price

$575.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Jobu Design

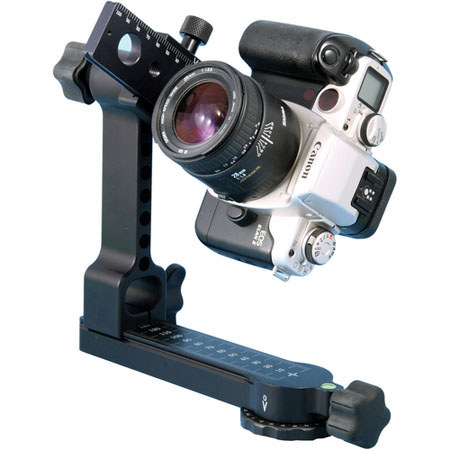

The Jobu Design PGH-1 Panoramic Gimbal Head is constructed of CNC-machined billet aluminum to serve as a sturdy, precise device for executing panoramic or VR photography. Every pivot and adjustment point features laser-engraved, permanent scale markings in millimeters or degrees. This aids tremendously in capturing images that will later be stitched together. The anodized-black head features a gimbal-style design and premium knobs for strong, lockout securing of moving parts.

The horizontal arm of the Panoramic Gimbal Head rotates around the connection point to a tripod. The position of this panning arm is marked out every 7.5 degree for a full 360 degree of precise pan adjustment. A soft, rubberized control knob locks out the horizontal arm's position and a nearby bubble level ensures that the head is flush with the horizon.

The vertical arm slides along a marked scale for adjusting the offset from the camera base to the center of the horizontal arm. The premium wing knob provides reliably strong locking of the vertical element's lateral position. There's another soft-touch control knob with roller bearings at the top of the vertical arm that allows you to adjust the camera's vertical tilt. Markings at this point are in 5 degree increments.

Attaching to the vertical arm via an Arca-style clamp, the included SF-CP1 Sure foot clamping plate features a 0-100 mm scale for effecting nodal point (forward & backward) adjustments for standard-size lenses (from fisheye to moderate telephoto). Photographers with longer lenses - those that employ tripod collars - should use a lens foot or a sufficiently long lens plate to find the nodal point of their lens.

Jobu Design Features

  • Disassembles and clamps together for a compact footprint when traveling
  • Includes SF-BP1 camera mounting plate for smaller SLR and point & shoot cameras; a larger Arca-style plate is recommended for pro-size DSLRs to prevent twisting

Jobu Design Specifications

Quick Release
Yes, Arca-style clamping with included plates
Spirit Level
Yes
Tension Control
No
Separate Panning Lock
Yes
Dimensions (H x W)
8 x 9" (20.3 x 22.9 cm)
Weight
2.3 lb (1020 g)
