JuicedLink

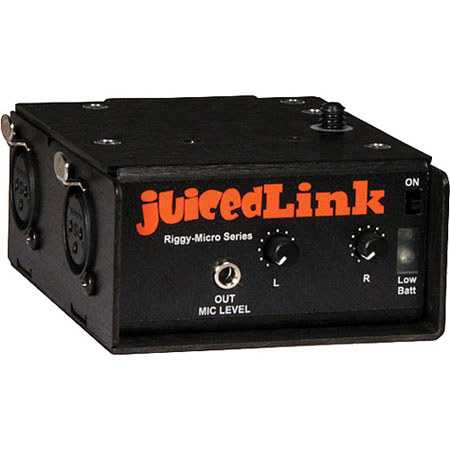

JuicedLink RM222 Riggy-Micro Dual-XLR Preamplifier with Phantom Power

SKU: JDRM222 MFR: RM222
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$329.00 $13 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the JuicedLink RM222

The JuicedLink RM222 Riggy-Micro Dual-XLR Preamplifier with Phantom Power is designed for cameras which already have audio meters, manual gain control and a headphone output. The RM222 features efficient operation, small size and a lightweight design for mounting flexibility. It can even be mounted in the hot-shoe on top of your camera.

The RM222 features 2 locking XLR inputs with low-noise microphone preamplifiers. Each channel includes a Mic/Line level switch, a Hi/Lo gain switch and a Phantom power switch. The onboard Phantom power voltage is selectable between 48V/12V. The inputs can also be summed mono, copying each input to both sides. The right channel can be completely powered down to conserve battery power if not needed.

When engaged, the Audio Output Bracketing feature of the RM222 ensures that your audio inputs won't clip or distort. By placing the RM222's performance in mono and enabling the 16dB pad on the right channel, you end up with two signals with identical content, yet the right is recorded 16dB lower. This way if a sudden loud noise or a boomy portion of audio is recorded, you'll have a backup track with headroom in case the 0dB output clips.

The RM222 Riggy-Micro uses a 9V battery. High capacity lithium-polymer rechargeable batteries can be used as well as alkaline. The low-battery indicator can be switched between alkaline or lithium-polymer threshold, so you can use either chemistry without leaving unnecessary capacity in the battery.

JuicedLink RM222 Includes

  • JuicedLink RM222 Riggy-Micro Dual-XLR Preamplifier
  • 9" (23cm) 1/8" (3.5mm) TRS Stereo Audio Cable
  • 1/8" Hex Key
  • Black Nylon 1/4"-20 Nut
  • Cork Strip
  • JuicedLink Warranty

JuicedLink RM222 Features

  • Two Locking XLR Input Connectors
  • Low-Noise Microphone Preamplifiers
  • Switchable 12V / 48V Phantom Power
  • Audio Output Bracketing Feature
  • Mic/Line Signal Level Switches
  • Hi/Lo Gain Level Switches
  • Optional Mono Summing
  • Selective Power-Down
  • 1/8" Output for DSLR Compatibility
  • Powered by a 9V Battery

JuicedLink RM222 Specifications

Input Connectors 2 x XLR balanced
Phantom Power 12V or 48V, switchable
Gain Up to 30 dB maximum available gain
Switches 2 x Mic/Line level (1 per channel)
2 x Hi/Lo gain (1 per channel)
1 x Phantom Off/12V/48V (global)
1 x L Phantom On/Off
1 x R Phantom On/Off
1 x Stereo/Mono
1 x R Channel Power Off/On
1 x R Channel -16 dB Pad
1 x ENC Ground Norm/Lift
1 x LiPoly/Alkaline
Output Connector 1 x 1/8" (3.5 mm) TRS stereo
Frequency Response 20 Hz to 20 kHz, +0 /-1.5 dB
Battery Life (approx.) 16 hrs (2 XLR inputs active, fresh Alkaline battery)
40 hrs (1 XLR input active, fresh Alkaline battery)
Battery life with Phantom is non-linear, depends on microphones
Dimensions (WxDxH) 3x3.5x1.5" / 76x89x38mm
Weight 8 oz (227 g)
