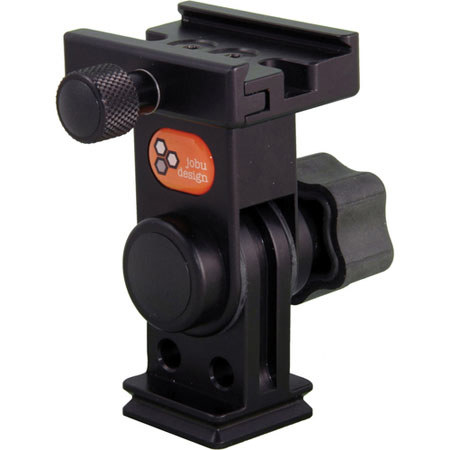

Jobu Design Wide Angle Adaptor Bracket 2

See all Jobu Design items

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Jobu Design

The Jobu Design Wide Angle Adaptor Bracket 2 allows you to mount a camera-body to a gimbal in both portrait and landscape orientations. It is compatible with swing-arm style gimbals and side-mount gimbal quick-release systems and the square base of the bracket can be easily attached to any Arca-Swiss quick release plate. You can also use it as a monopod tilt-head with the help of integrated 3/8"-16 threaded base.

By locking down the soft-touch rubber knob, you can extend the load-bearing capacity of the bracket from 5 lbs (2.26 kg) to 20 lbs (9.07 kg). The Wide Angle Adaptor Bracket 2 comes with a 2.5" integrated quick-release for easy mounting onto the camera. You can also use the included SF-BP1 body plate to attach the bracket to the camera-body. The bracket has an aluminum and stainless steel construction.

Jobu Design Features

  • Mounts into any Arca-Swiss compatible quick release. The square base may be mounted left-right or front-rear
  • The WAA2 is pre-tensioned to 5 lbs capacity, which means it is positionable in both portrait and landscape formats (and all angles in between) without needing to tighten any knobs
  • Locking down the soft-touch rubber knob will hold over 20 lbs of weight
  • Useable on either swing-arm style gimbals or side-mount gimbal Quick-Release systems
  • Includes a 2.5" Integrated Quick-Release for mounting to your equipment
  • Includes the SF-BP1 body plate to get your started, in case you do not have a custom Arca-Swiss plate to mount to your camera bodies. Custom plates are recommended for heavy Pro-DSLR cameras to prevent twisting
  • All aircraft aluminum and stainless steel construction

Jobu Design Specifications

Swing-arm Style Gimbals and Side-mount Gimbal Quick-release Systems
Any 3/8"-16 threaded monopod or tripod
Aluminum and Stainless Steel
Load Capacity
Bracket: 5 to 20 lbs (2.26 to 9.07 kg)
