JVC

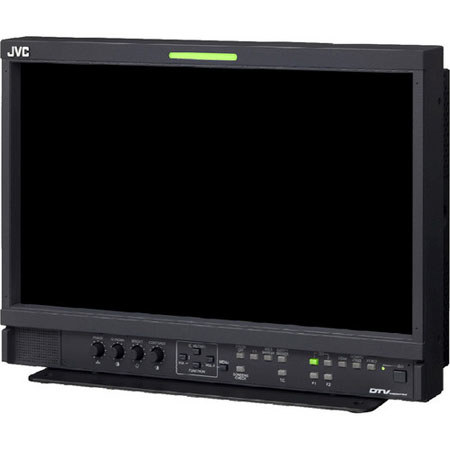

JVC DT-E15L4U 15" Multi Format Professional LCD Studio Monitor, 1366x768 Resolution, 10-Bit LED Backlit TN Panel

SKU: JVDTE15L4U MFR: DT-E15L4U
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,795.00 $70 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the JVC DT-E15L4U

The JVC DT-E15L4U 15" Multi Format Professional LCD Studio Monitor is a 10-bit LED backlit TN panel with a non-gloss coating, a 16-channel audio level meter, an in-monitor display function and a comprehensive set of connections including SDI, HDMI, BNC Composite, D-sub Component and RCA audio.

The audio level meter displays eight channels on each side of the monitor and features multiple indicators, such as peak, over level and reference level. The in-monitor display function tracks the monitor's status and displays it with text and tally lamps.

JVC DT-E15L4U Includes

  • JVC DT-E15L4U 15" Multi Format Professional LCD Studio Monitor
  • Power Supply
  • 3 Way Stand
  • JVC Warranty

JVC DT-E15L4U Features

  • 1366x768 resolution
  • Non-glare TN LCD panel with an LED backlight
  • 10-bit image processor
  • Low latency of less than one frame (in field mode)
  • Connections: HD/SD-SDI, HDMI, BNC Composite, D-sub Component, RCA audio, RS-232C, RS-485
  • 16:9 aspect ratio
  • Functions assignable to F1 and F2 front panel buttons
  • In-Monitor Display function (IMD) shows status in text and with on-screen tally lamps
  • Multi-color / multi-function tally lamp for Make/Trigger system
  • 16-channel audio level meter with multiple indicators such as peak and graduation levels
  • Built-in speaker
  • Area Center / Safety markers
  • LTC, VITC and D-VITC timecode support
  • Compatible with ITU-709 color gamut

JVC DT-E15L4U Specifications

Display Size 15" diagonally (38 cm)
Effective Screen Size 13.5x7.6x15.5" (34.4x19.4x39.5cm)
Aspect Ratio 16:9
Inputs 2x HD/SD-SDI
Auto-detecting
1x BNC Composite
1 V (p-p), 75 ohm
1x HDMI
1x 15-pin mini D-sub analog Component RGB
Y: 1 V (p-p), 75 Ohm (with sync);
G, B/PB/B-Y, R/PR/R-Y: 0.7 V (p-p), 75 Ohm (HS, VS: 03 V (p-p) to 5 V (p-p)
1x L/R RCA audio
500 mV (RMS), highimpedance
Outputs 1x HD/SD-SDI, switched out
1x BNC Composite loop output, 1 V (p-p), 75 ohm
External Controls 1x RJ45 Make/Trigger 8-pin
1x RJ45 RS-485 8-pin for In
1x RJ45 RS-485 8-pin for Out
1x D-sub RS-232C 9-pin
Resolution 1366 x 768
Colors 16.7M
Coating Non-gloss
Viewing Angle 170deg./160deg.
Brightness 300 nit
Contrast Ratio 500:1
Backlight LED
Frequency Horizontal: 31.469 - 75 kHz
Vertical: 49.990 Hz - 75.062 Hz
Format HD-SDI -- BTA S-004C, SMPTE 292M
SD-SDI -- ITU-R BT.656: 525/625, SMPTE 259M: 525
Embedded Audio -- SMPTE 299M, 272M
Operating Temperature 41 to 95deg.F (5 to 35deg.C)
Humidity 20 - 80% (non-condensing)
Power Requirements 120 / 220-240 VAC, 50/60 Hz
Rated Current 0.6A (120 VAC)
0.35A (220-240 VAC)
VESA Standard 100x100mm
Dimensions With stand: 14.7x10.6x7" (37.3x27x18.1cm)
Without stand: 14.7x10.4x3.9" (37.3x26.5x9.9cm)
Weight With stand: 13lbs (5.9kg)
Without stand: 9.5lbs (4.3kg)
