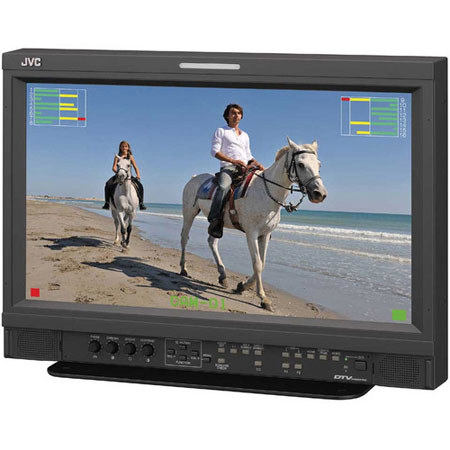

JVC DT-E17L4G 17" Multi-Format HD LCD Monitor, 1920 x 1080 Resolution, 600:1 Contrast, LED Backlight

JVC
SKU: JVDTE17L4G MFR: DT-E17L4GU

List Price: $2,750.00

Our Price

$2,395.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About JVC DT-E17L4G

The JVC DT-E17L4G 17" Multi-Format HD LCD Monitor is JVC's cost-effective alternative to its industry-standard DT-V high-end studio monitors. The monitor consumes 20-30% less power than conventional CCFL monitors do. Other than cost and environmental efficiency, reduced consumption also makes possible for 12VDC support to be added for field use.

Inputs and outputs include HD/SD-SDI and HDMI. Resolution is full HD at 1920 x 1080, contrast ratio is 600:1 and color processing is at 10 bit. LED backlighting provides improved contrast and black level. The monitor has built-in speakers and 16-channel embedded audio with a level indicator.

Additional features consist of low latency, area / center / safety markers, LTC and VITC time code support and an In-Monitor Display function (IMD) based on TSL's UMD protocol version 4. A 3-way stand comes included for versatile installation.

JVC DT-E17L4G Features

  • Consumes 20-30% less power than CCFLs
  • 1920 x 1080 resolution and a 600:1 contrast ratio
  • 16.7 million display colors and 10-bit color processing
  • LED backlight provides improved contrast and black level
  • Comprehensive set of connectors include HD/SD-SDI / HDMI
  • Low latency of less than one frame in field mode
  • Built-in speakers / 16-ch embedded audio with level meter
  • Area, center, safety markers and LTC / VITC time code support
  • In-Monitor Display function shows status with text and color tally lamps
  • Features panel buttons and controls. Functions can be assigned to F1 / F2
  • An AC adapter as well as a DC power input connector comes included with the monitor

JVC DT-E17L4G Specifications

Display
17" LCD display (43.2 cm)
Aspect Ratio
16:9
Resolution
1920 x 1080 total pixels
Inputs
(2) HD/SD-SDI on BNC
(1) HDMI
(1) Composite on BNC
(1) Component analog RGB on Mini D-Sub 15-pin
(1) L/R 3.5mm RCA audio
(1) RS-485 on 8-pin RJ-45
(1) RS-232C on 9-pin D-sub
Make/Trigger: 8-pin RJ-45
Outputs
(1) HD/SD-SDI on BNC (switched / reclocked out)
(1) Composite loop-through on BNC
(1) L/R 3.5mm RCA audio
(1) Monitor audio out
(1) RS-485 on 8-pin RJ-45
Panel Surface
Glare
Viewing Angle
160 deg. x 140 deg.
Contrast Ratio
600:1
Display Colors
16.7M
Backlight
Mercury-free LED backlight
Power Requirement
AC 120, 220-240V 50/60Hz
DC 12-17V
Speaker Output
1W x 2
VESA Standard
3.93x3.93" / M4 x4 (10x10 cm)
Dimensions
16.9x12.3x7.1" (43x31.4x18.1 cm)
Weight
15.6 lbs (7.1 kg)
12.3 lbs without stand (5.6 kg)
