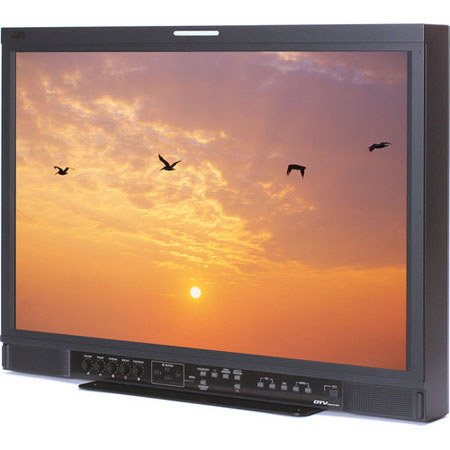

The JVC DT-R24L41DU 24" Studio LCD Monitor with a 10-bit 4:4:4 real time processor and 16.7 million colors, delivers high-quality images at a resolution of up to 1920 x 1200. It offers a contrast ratio of 1000:1, brightness of 400 cd/m2 and a wide viewing angle of 178x178 deg. (H x V) that allows you to view the images clearly even from room corners or when the display is mounted at a height. In addition, the monitor includes dual HD/SD SDI inputs with a switched output.
With an aspect ratio of 16:10, the DT-R24L41DU LCD Monitor can automatically adapt to the input resolution of the incoming video signal. De-interlace (IP mode) circuitry converts interlaced video, such as common analog television signals or 1080i format HDTV signals, into a non-interlaced form. For IP conversion, you can choose from the Normal (frame complement and vertical filter), Field (field complement) and Cinema (for 24p) modes.
Built-in low latency circuitry ensures accurate monitoring by minimizing the time difference between the input signal and monitor image to less than 1 frame. The desired color temperature can be set with the 3-temperature memory that comes in 9300K and 6500K modes as well as a user-specified mode. The DT-R24L41DU Studio LCD Monitor features a wide color gamut (subset of colors) and offers a chromatic range equivalent to EBU 100%. Being gamma calibrated, the DT-R24L41DU Studio LCD Monitor produces correct video images.
An audio level meter, which displays the channel number in each level bar, allows you to monitor the audio signals for reference level/over level, 0 dB, 3 set levels and peak hold function. Two internally mounted speakers allow you to monitor 2 audio channels out of the available 12 HD/SD SDI embedded audio channels. In addition, the volume level can be adjusted with the help of a rotary knob. Status information is displayed in the vacant area above or below the active picture area. You can assign the monitor name (up to 10 characters) using the on-screen menu or through the RS-232C connector. In addition, the monitor also offers features such as time code (SDI-embedded), an audio level meter (12 channels) and CRC error status.
With a 1:1 scan function, you can view input signals in the actual format without any scaling. The 4:3 vertical display function can be selected with a simple menu setting and it allows for full utilization of the vertical screen area (1200 pixels). The studio monitor features various video production functions like area markers and a 100%-80% adjustable safety marker (to display the area outside the image). Using the aspect switch feature, you can precisely monitor different aspect ratios in 16:9 and 4:3 modes, while the screen check feature enables correct image-checking by switching between R, G and B signals.
Time code mode allows you to view HD-SDI / SDI embedded time code on the screen. The monitor supports LTC (linear time code) or VITC (vertical interval time code) types of time codes. When there is no input signal or during power-saving mode, the monitor can be set to No Sync Action by choosing from Suspend, Gray Back and Off. The DT-R24L41DU monitor incorporates a 4-way remote control system that can be selected from Make contact system, Trigger Pulse system, RS-485 and RS-232C. The cascade signal output can be achieved by converting the RS-232C system to RS-485.
Using the standard 100mm VESA mount, the DT-R24L41DU Studio LCD Monitor can be rack or shelf mounted. A rugged metal base with a 4-hole pattern provides secure installation. With the 3-way stand, the monitor can be mounted in tabletop configuration or flush upfront. In addition, it features a rugged metal cabinet for added durability. A speaker grill and enforced edge design protects the protruding volume controls and switches from accidental operation, while the concave rear design safeguards the connectors.
• 24" Studio LCD Monitor
• HD/SDI Input/Output
• 1920 x 1200 Resolution
• 400 cd/m2 Brightness
• 1000:1 Contrast Ratio, 16:10 Aspect Ratio
• 4-Way remote control system
