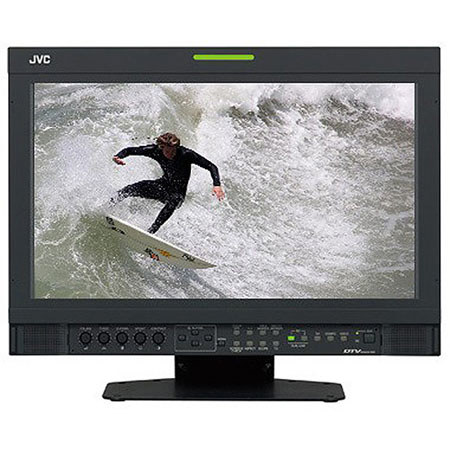

The JVC DT-V17G15Z 17" 10-bit Production LCD Monitor is a widescreen 1080p/60/50 broadcast monitor designed with a focus on gamma, color gamut and grayscale. Four gamma modes -- 2.2, 2.35, 2.45 and 2.6 -- are preset to accommodate varying contrast needs and two color gamut modes -- Wide and the standard ITU-709 -- are selectable between so you can test your footage in high and low color variations. In NTSC mode, Wide covers 110% of the panel's color space.
Both color resolution and processing are at 10 bit. The monitor features an IPS panel with a 178deg. viewing angle and with low chromatic variation, which combined with 10-bit processing helps increase the shades of gray for smooth gradation.
A comprehensive set of connections includes two SDI inputs that each support up to 3G but that are also linked to support Dual Link input from sources not capable of 3G output.
Selectable gamma preset modes: 2.2, 2.35, 2.45 and 2.6
ITU-709 and Wide color gamut modes
10-bit color resolution and 10-bit processing
IPS panel with 178deg. viewing angle
800:1 contrast ratio
300 Nit brightness
Features circuits that deliver low latency of less than one frame
16-channel audio level meter
The monitor features two SDI inputs each capable of 3G transfer rates and the two are also linked to support Dual Link input from sources not capable of 3G output
2x 3G-SDI inputs and 1x 3G-SDI output
The SDI inputs also function as linked Dual Link inputs
Gold-plated SDI BNCs
HDCP-compatible DVI-D input
Component and Composite input and output
RS-485 and RS-232C serial control
Built-in audio speaker with 1W + 1W L/R output
Source ID input by ASCII code: Red / Green / White color linked with tally
Front LED dimmer function
Information position selectable
Meets both SMPTE and EBU requirements
Full metal chassis
JVC DT-V17G15Z Specifications
17.3" diagonally (44 cm) Active matrix TFT LCD
Effective Screen Size
178 / 178deg.
H/V Frequency (PC Signals)
Horizontal: 31.469 to 75 kHz Vertical: 48 to 65 Hz
2x 3G/HD/SD-SDI on BNC 1x DVI-D HDCP compatible 1x Component on 3 BNCs 1x Composite on 2 BNCs 1 V (p-p), 75 ohms 1x Analog audio on 2 RCAs 500 mV (rms) High impedance
1x 3G/HD/SD-SDI BNC Switched and re-clocked SD (YPbPr), HD (YPbPr): SMPTE 292M HD/3G (YPbPr, RGB): SMPTE 424M/425M with embedded audio 1x Component on 3 BNCs SD (YPbPr), HD (PbPr) 1x Composite on 2 BNCs Shared with Composite input by bridge connection with auto termination 1 V (p-p), 75 ohms 1x Analog audio on 2 RCAs 500 mV (rms) Internal output: 1.0 W + 1.0 W (L/R)
3G-SDI (Ready): SMPTE424M/SMPTE425M Dual Link HD-SDI (Ready): SMPTE372M HD-SDI: BTA S-004C, SMPTE292M SD-SDI: ITU-R BT.656: 525/625, SMPTE259M: 525 Embedded Audio: SMPTE299M, SMPTE272M Displayable 3G-SDI signals: 3G A-1 to A-4 -- Level A mapping structure 1 to 4 3G B-DS1 & B-DS2 -- Level B data stream 1 and 2 3G B-DUAL -- Level B Dual Link
