JVC

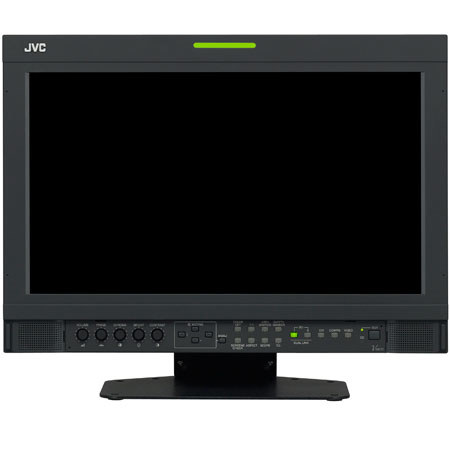

JVC Verite DT-V17G1Z 17" 3G HD-SDI/SDI Studio Monitor, 1366 x 768 Resolution, 900:1 Contrast Ratio, 350cd/m2 Brightness

SKU: JVDTV17G1Z MFR: DT-V17G1Z
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,695.00 Regular Price
- $300.00 Instant Rebate
Your Final Price $2,395.00
Qty:

Add to Wishlist In Stock

About the JVC DT-V17G1Z

The JVC DT-V17G1Z Verite 17" 3G HD-SDI/SDI Studio Monitor brings an impressive set of professional features to a 1366 x 768 monitor that won't bust your budget. Its 3G and dual-link HD/SD-SDI inputs allow use of the full 4:4:4 color space while monitoring 1080/60p video. Meanwhile, the 10-bit processing and non-glossy LCD panel combine to provide highly accurate color reproduction.

This is key when grading or matching footage in critical monitoring applications such as broadcast, studio, mobile and location work. Another professional touch is the inclusion of a built-in waveform monitor, scalable vectorscope, time code support, tally lamp, safety markers and advanced audio level metering. Any way you look at it, the DT-V17G1Z has you covered.

JVC DT-V17G1Z Includes

  • JVC Verite DT-V17G1Z 17-inch Studio Monitor
  • Adjustable Support Stand
  • AC Power Cord with Holder
  • 2 x Screw
  • Ferrite Core
  • JVC 1 Year Parts and Labor Warranty

JVC DT-V17G1Z Features

  • 3G/Dual Link Ready: 1080p uncompressed digital video data transmitted at a maximum rate of 60 frames per second at 3 GB/second can be input with one HD-SDI input. Dual Link is available through two HD-SDI inputs
  • IPS LCD Panel: IPS (In-Plane Switching) panels provide wide viewing angles and excellent color reproduction. The crystal molecules move parallel to the panel plane instead of perpendicular to it, reducing the amount of light scattering in the matrix
  • Gamma Mode Preset: Various pre-set gamma modes (2.2, 2.35, 2.45, 2.6) are offered to meet your application needs
  • Vectorscope: High-quality vectorscope allows simple checking of hue and saturation of digital video signals. Hue and saturation of color signal are detected and displayed as a vector with resolution of 254 x 254
  • Waveform Monitor: Detects video, component (excepting RGB), SDI, DVI brightness signals and displays them with resolution of 360 x 254 for SD signals or 480 x 254 for HD signals. It is also possible to perform checks at the color signal level of each color per screen for R/G/B, Y/PB/PR, Y/CB/CR
  • Advanced Audio Level Meter: The channel number is displayed in each level bar. Plus you can check the status of the audio signal at a glance for Reference Level/Over Level 0 dB, three set levels and peak hold function
  • Digital & Analog Closed Captioning: EIA-608/708 DTV Closed Captioning is supported via HD-SDI inputs. Analog closed captions can also be monitored when signals are input via composite video connection

JVC DT-V17G1Z Specifications

Signal System NTSC/PAL
Monitor Type LCD
Screen Size 17"
Resolution 1366 x 768
Viewing Angle 178 deg.
Brightness 350cd/m2
Contrast Ratio 900:1
Inputs/Outputs HD/SD-SDI: BNC (x2 Input, x2 Output)
DVI: DVI-D (x1 Input)
Component: BNC (x1 Input, x1 Output)
Composite: BNC (x1 Input, x1 Output)
Analog Audio: RCA L/R (x1 Input)
Audio Monitor: RCA L/R (x1 Output)
External Control: 8-pin RJ-45
RS-485: 8-pin RJ-45 (x2 Input, x2 Output)
RS-232C: 9-pin D-sub
Remote Control Optional (RS-232C, RS-485)
Power Requirements 120VAC, 60Hz / 12-17VDC
Power Consumption 1.2A (120VAC)
0.8A (220-240VAC)
5A (12-17VDC)
Dimensions With Stand: 17x13.8x7.9" (43.2x35x20 cm)
Without Stand: 17x12.3x4.1" (43.2x30.9x10.2 cm)
Weight With Stand: 18.9 lbs (8.6kg)
without Stand: 15 lbs (6.8kg)
