JVC

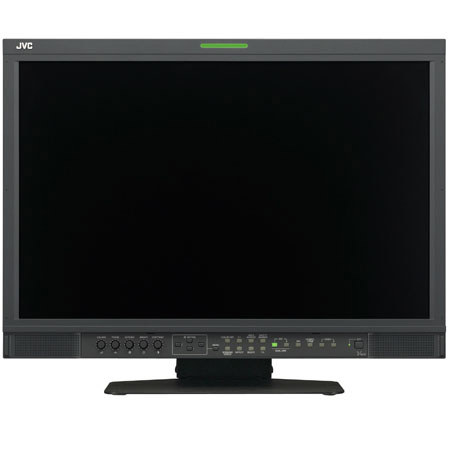

JVC Verite DT-V24G1Z 24" 3G HD-SDI/SDI Studio Monitor, 1920 x 1200 Resolution, 1000:1 Contrast Ratio, 400cd/m2 Brightness

SKU: JVDTV24G1Z MFR: DT-V24G1Z
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,795.00 Regular Price
- $300.00 Instant Rebate
Your Final Price $3,495.00
Free Shipping
Qty:
Add to Wishlist

About the JVC DT-V24G1Z

The JVC DT-V24G1Z Verite 24" 3G HD-SDI/SDI Studio Monitor brings an impressive set of professional features to a 1920 x 1200 monitor that sets new standards for picture quality at an affordable price. Its 3G and dual-link HD/SD-SDI inputs allow use of the full 4:4:4 color space while monitoring 1080/60p video.

Meanwhile, the 10-bit processing and non-glossy LCD panel combine to provide highly accurate color reproduction. This is key when grading or matching footage in critical monitoring applications such as broadcast, studio, mobile and location work. Another professional touch is the inclusion of a built-in waveform monitor, scalable vectorscope, time code support, tally lamp, safety markers and advanced audio level metering. The DT-V24G1Z will be equally useful in OB vans, TV studios and production and post facilities.

JVC DT-V24G1Z Includes

  • JVC Verite DT-V24G1Z 24-inch Studio Monitor
  • AC Power Cord with Holder
  • 2 x Screw
  • Ferrite Core
  • JVC 1 Year Parts and Labor Warranty

JVC DT-V24G1Z Features

  • 3G/Dual Link Ready: 1080p uncompressed digital video data transmitted at a maximum rate of 60 frames per second at 3 GB/second can be input with one HD-SDI input. Dual Link is available through two HD-SDI inputs
  • IPS LCD Panel: IPS (In-Plane Switching) panels provide wide viewing angles and excellent color reproduction. The crystal molecules move parallel to the panel plane instead of perpendicular to it, reducing the amount of light scattering in the matrix
  • Gamma Mode Preset: Various pre-set gamma modes (2.2, 2.35, 2.45, 2.6) are offered to meet your application needs
  • Vectorscope: High-quality vectorscope allows simple checking of hue and saturation of digital video signals. Hue and saturation of color signal are detected and displayed as a vector with resolution of 254 x 254
  • Waveform Monitor: Detects video, component (excepting RGB), SDI, DVI (except PC) brightness signals and displays them with resolution of 360 x 254 for SD signals or 480 x 254 for HD signals
  • Advanced Audio Level Meter: The channel number is displayed in each level bar. Plus you can check the status of the audio signal at a glance for Reference Level/Over Level 0 dB, three set levels and peak hold function
  • Digital & Analog Closed Captioning: EIA-608/708 DTV Closed Captioning is supported via HD-SDI inputs. Analog closed captions can also be monitored when signals are input via composite video connection
  • Color Temperature: Color temperature can be set as required with a 3-temperature memory that includes a 9300K mode, 6500K mode and user-specified mode
  • Advanced Status display and metering: Status information can be displayed in the blank area above or below the active picture area. Up to 10 characters can be used for monitor name (user defined). The monitor name can be assigned with the on-screen menu, or through the RS-232C connector
  • 1:1 scan: This useful function enables pixel-by-pixel display. Input signals are displayed in their original format without scaling. Precise image quality evaluation is available during editing
  • SD 4:3 Full Vertical Display: A menu setting allows 4:3 images to use the full 1200 vertical pixel screen area, providing larger standard definition display
  • Various video production functions: Functions that support video production include various area markers and a 100%-80% adjustable safety marker that shows the area outside the image
  • No sync action: The screen mode activated when no signal is input or when the power-saving mode is engaged can be selected from Suspend/Gray Back/Off
  • Time code on/off function: HD-SDI / SDI embedded time code display can be switched on and off as required
  • 4-way remote control system: The remote control system can be selected from MAKE contact system / TRIGGER PULSE system / RS-485 / RS-232C. The RS-232C system can be converted to RS-485 on the monitor for cascade signal output
  • Compact, all-in-one design: This slim, space-saving, all-in-one design enables easy installation on a shelf or in a rack. For added convenience, a VESA standard mounting (100 mm x 100 mm) is provided
  • Adjustable Stand: The provided metal tabletop stand can be tilted up (6deg.) or down (6deg.) for easy viewing and more flexible positioning. You can also install the monitor directly on a platform - useful when you need to install in a location with a height limit
  • Metal chassis design: A metal cabinet provides rugged durability for use in a variety of professional applications
  • Connector guard construction: With a speaker grill and enforced edge design, protruding volume controls and switches are sheltered to prevent mis-operation and damage. On the back of the monitor, the concave design helps protect the connectors

JVC DT-V24G1Z Specifications

Signal System NTSC/PAL
Monitor Type LCD
Screen Size 24"
Resolution 1920 x 1200
Viewing Angle 178deg.
Brightness 400cd/m2
Contrast Ratio 1000:1
Inputs/Outputs HD/SD-SDI: BNC (x2 Input, x1 Output)
DVI: DVI-D (x1 Input)
Component: BNC (x1 Input, x1 Output)
Composite: BNC (x2 Input, x2 Output)
Analog Audio: RCA L/R (x2 Input)
Audio Monitor: RCA L/R (x1 Output)
External Control: 8-pin RJ-45
RS-485: 8-pin RJ-45 (x2 Input, x2 Output)
RS-232C: 9-pin D-sub
Remote Control Optional (RS-232C, RS-485)
Power Requirements 120/220-240VAC, 50/60Hz
Power Consumption 1.15A (120VAC)
0.67A (220-240VAC)
Dimensions With Stand: 22.2x17.7x9.6" (56.4x44.9x24.3 cm)
Without Stand: 22.2x16.1x4.1" (56.4x40.8x9.9 cm)
Weight With Stand: 25.5 lbs (11.6kg)
Without Stand: 19.1 lbs (8.7kg)
