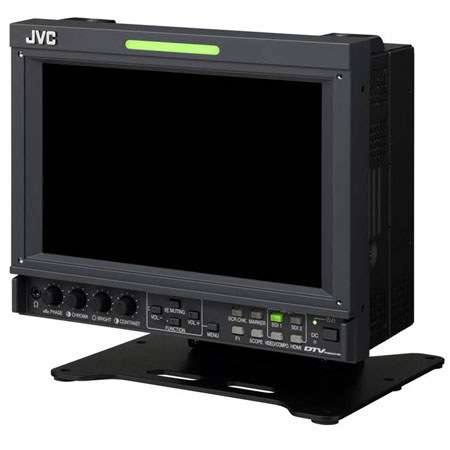

JVC DT-V9L5U 8.25" Professional LCD Studio/Field Monitor, 16:10 Aspect Ratio, 360 cd/m 2 Brightness, 800:1 Contrast Ratio

SKU: JVDTV9L5U MFR: DT-V9L5U
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,795.00 Regular Price
- $300.00 Instant Rebate
Your Final Price $1,495.00
Qty:

Add to Wishlist In Stock

About the JVC DT-V9L5U

The JVC DT-V9L5U is an 8.25" affordable high quality professional LCD studio/field monitor designed for demanding field and studio applications.

JVC DT-V9L5U Includes

  • JVC DT-V9L5U 8.25" Professional LCD Studio/Field Monitor
  • AC Power Cord
  • Power Cord Holder
  • 2 x Screw
  • Protective Filter
  • 4 x Screw (for Protective Filter)
  • JVC Warranty

JVC DT-V9L5U Features

  • 8.2" IPS LED LCD panel with 1280 x 800 pixel array
  • Wide 178deg. x 178deg. viewing angle
  • HD-SDI, HDMI, Analog Component, Composite video inputs
  • 16 Ch Audio Level Display
  • Area/Center/Aspect marker
  • MAKE/TRIGGER, RS-232C and RS-485 remote
  • LTC, VITC and D-VITC time code support
  • AC/DC 12V power operation
  • Waveform and vectorscope display
  • Built-in mono speaker
  • Front panel headphone jack

JVC DT-V9L5U Specifications

Type Multi format LCD monitor
Screen size Type 8.2 wide format
Aspect ratio 16:10
Format HD SDI: SMPTE292M
SD SDI: ITU-R BT.656, SMPTE259M
EMBEDDED AUDIO 16CH: SMPTE299M, SMPTE272M
Audio output Internal speaker: 1.0 W
LCD Panel 8.2" wide, active matrix TFT
LCD Panel: Number of pixels displayed 1280 x 800
LCD Panel: Number of colors displayed 16.70 million
LCD Panel: Viewing angle 80deg. (Horizontally), 80deg. (Vertically)
LCD Panel: Brightness 360 cd/m 2
LCD Panel: Contrast ratio 800:1
Screen size Width: 176.4 mm (7")
Height: 110.4 mm (4 .37")
Diagonal: 208.3 mm (8.25")
Input/Output: Video Input/output of composite signal: 1 line, BNC connector x 2, 1 V (p-p), 75 Ohm
Input/Output: HDMI HDMI signal input (compatible with HDCP): HDMI connector x 1
Input/Output: Compo (Y, Pb/B-Y, Pr/R-Y) Analog Component signal input: 1 Line, BNC connector x3
Y: 1 V(p-p), 75 Ohm(with sync)
PB/B-Y, PR/R-Y: 0.7 V (p-p), 75 Ohm
Input/Output: E. Audio HD/SD SDI (In 2) Digital signal input (compatible with EMBEDDED AUDIO signals):
auto detection, 2 line, BNC connector x 2
Input/Output: E. Audio HD/SD SDI Digital signal output (compatible with EMBEDDED AUDIO signals): 1 line switched out, BNC connector x 1
Input/Output: Audio (In) Analog audio signal input: 1 line, RCA connector x 1, 500 mV (rms), high impedance
Input/Output: Audio (Monitor Out) Analog audio signal output: 2 line, RCA connector x 2, 500 mV (rms)
Input/Output: Remote (Make/Trigger) RJ-45, Make contact or momentary pulse to corresponding terminal
Input/Output: Remote (Rs-232C) D-SUB9, Serial communication
Operating Temperature 5deg.C - 35deg.C (41deg.F - 95deg.F)
Operating Humidity 20% - 80% (non-condensing)
Power Requirements AC 120 V / AC 220 V - 240 V, 50 Hz/60 Hz or DC 12 V - 17 V
Rated Current 0.5 A (AC 120 V)
0.25 A (AC 220 V- 240 V)
1.3 A (DC 12 V - 17 V)
External Dimensions (WxHxD) 217x218x185mm / 8.54x8.58x7.28"
Weight With the stand: 3.2 kg (7.0 lbs)
Without the stand: 2.3 kg (5.1 lbs)
