JVC

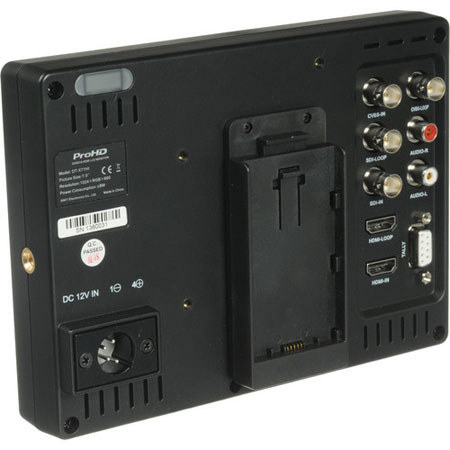

JVC DT-X71CI 7" On-Camera Field Monitor, 1024x600 Resolution, 400cd/m2 Brightness, HDMI, Composite BNC Input with Loop-Out

SKU: JVDTX71CI MFR: DT-X71CI
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$650.00 List Price

Our Price

$550.00 $22 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the JVC DT-X71CI

The JVC DT-X71CI 7" On-Camera Field Monitor is the most basic of the three DT-X71 models but nevertheless featuring the same 1024 x 600 resolution, 400 nit brightness and high 900:1 contrast ratio, all affording crisp monitoring. You also get the software features and functionality shared among the three models. You get 1:1 Pixel-to-Pixel Zoom In, Image Rotate and Flip, 16:9 and 4:3 adjustable aspect ratios, internal color bars, editable video title, an Underscan / Overscan switch and front and rear 3-color TALLY lights accessible by an RJ-45 connector on the rear. This "CI" model has two assignable function buttons for programming the above software features into.

Connections consist of an HDMI input, a Composite BNC input with a loop-output and an RCA L/R audio input. Included are a 1/4"-20 swivel mount, a sun hood and an XLR AC adapter. For battery power, the monitor accepts an optional 7.4V IDX SSL-JVC50 battery, which snaps onto the back without a battery plate.

JVC DT-X71CI Includes

  • JVC DT-X71CI 7" On-Camera Field Monitor
  • AC Adapter
  • 1/4"-20 Swivel Mount
  • Hood
  • JVC Warranty

JVC DT-X71CI Features

  • HDMI input
  • Composite BNC input with loop-output
  • RCA L/R audio input
  • 1024 x 600 resolution
  • 400 nit brightness
  • 900:1 contrast ratio
  • 160deg. viewing angle
  • Front and rear 3-color TALLY lights (RJ-45 on the rear)
  • 2 assignable function buttons

JVC DT-X71CI Specifications

Screen Size 7" LCD (17.78cm)
Resolution 1024 x 600
Brightness 400 nit
Contrast 900:1
Viewing Angle 160deg./160deg.
Aspect Ratio 16:9 / 4:3
Colors 16.7M
Input 1x HDMI
1X Composite on BNC
1x RCA L/R audio
1x Headphone jack
Output 1x Composite BNC loop-output
Signal Format HDMI: 1080p60/50/30/25, 1080p24, 1080i60/50, 720p60/50, 576p/i, 480p/i
Composite: PAL/NTSC/SECAM
Power Input XLR-4P
Working Voltage DC 12 V / 2 A or 6.5 - 17 V battery
Rated Power 15 W max
Dimensions 7.55x5.47x1.85" (19.17x13.89x4.69cm)
Weight 1.3lbs (0.58kg)
