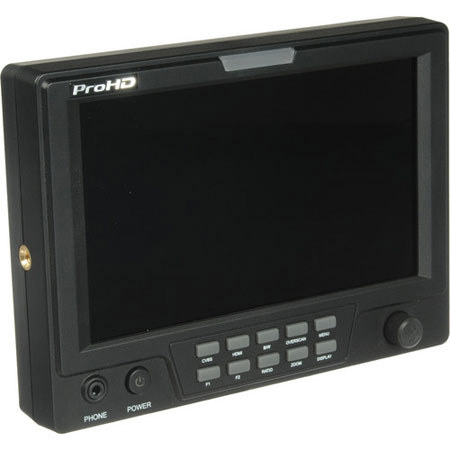

JVC DT-X71FI 7" Full Featured On-Camera Field Monitor, 1024x600 Resolution, 2 HD/SD-SDI Input, 1 HDMI, Waveform, Vectorscope, RGB Histogram

JVC
SKU: JVDTX71FI MFR: DT-X71FI
JVC DT-X71FI: Picture 1 thumbnail JVC DT-X71FI: Picture 2 thumbnail

List Price: $1,750.00

Our Price

$1,510.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

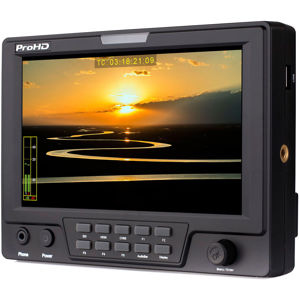

JVC DT-X71FI: Picture 1 regular $1,510.00

About JVC DT-X71FI

The JVC DT-X71FI 7" On-Camera Field Monitor provides an affordable high quality solution for field and studio applications. The DT-X71FI is the most feature-rich model in the series. It is a 7" HDSDI/HDMI LCD monitor, with a high resolution 1024 x 600 panel, dual TALLY lights, image rotate and flip. It integrates a wide range of professional functions including waveform, vector scope, RGB histogram, red/blue switchable peaking, focus assist, false color, blue only, zebra, rotate and flip, 16-ch HDSDI audio meter, time code and internal color bars.

The DT-X71FI accepts 2 HD/SD-SDI, 1 HDMI and 1 Composite video and has 2 HD/SD-SDI loop through outputs and 1 HDMI converted to SDI output. It's powered via a 4-pin XLR 12V DC connector or a snap-on 7.4V IDX SSL-JVC50 battery (optional)-the same battery used with the GY-HM600/650 cameras.

JVC DT-X71FI Features

  • 1024x600 Resolution
  • 16:9 / 4:3 adjustable
  • HD/SD-SDI, HDMI, Composite video inputs
  • HDMI converted to SDI output by a Build-in Converter
  • Waveform (Y/Cb/Cr/R/G/B), with full scale
  • Vector scope
  • R G B Histogram
  • Peaking focus assist (red/blue switch)
  • False color, Blue only, Zebra
  • Underscan / Overscan switch
  • Canon DLSR scale zoom-in
  • Customer editable video TITLE
  • Audio meter (SDI 16-ch, HDMI 2-ch)

JVC DT-X71FI Specifications

Screen Size
7" LCD (17.78 cm)
Resolution
1024 x 600
Brightness
400 nit
Contrast
900:1
Viewing Angle
160deg./160deg.
Aspect Ratio
16:9 / 4:3
Colors
16.7M
Input
2x HD/SD-SDI
1x HDMI
1X Composite on BNC
1x Headphone jack
Output
2x HD/SD-SDI loop-output
1x HD/SD-SDI (only outputs signal converted from HDMI input)
Signal Format
HD-SDI: 1.485 Gbps (supports 1080i60/50, 720p60/50, 1080p30/25/24
SD-SDI: 270 Mbps (supports 576i / 480i)
HDMI: 1080p60/50/30/25, 1080p24, 1080i60/50, 720p60/50, 576p/i, 480p/i
Composite: PAL/NTSC/SECAM
Power Input
XLR-4P
Working Voltage
DC 12 V / 2 A or 6.5 - 17 V battery
Rated Power
15W max
Dimensions
7.55x5.47x1.85" (19.17x13.89x4.69cm)
Weight
1.3lbs (0.58kg)
Mfr #
DT-X71FI
SKU
JVDTX71FI
