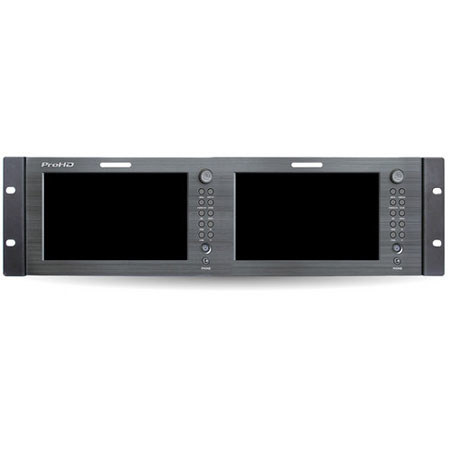

JVC DT-X71HX2 7" Rack Display Monitor with HDMI, 3G/HD/SD-SDI Input, Picture Rotate and Flip

SKU: JVDTX71HX2

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What resolution does the DT-X71HX2 7" Rack Display Monitor offer?

The DT-X71HX2 7" Rack Display Monitor offers a high resolution of 1024 x 768 for clear and detailed images.

What types of input does the DT-X71HX2 monitor support?

The DT-X71HX2 monitor supports a wide range of connectivity options including HDMI and 3G/HD/SD-SDI input.

Can I adjust the viewing angle on the DT-X71HX2 monitor?

Yes, the DT-X71HX2 monitor features an innovative picture rotate and flip function that allows for versatile viewing and the perfect viewing angle every time.

Is the DT-X71HX2 monitor suitable for a studio or control room setup?

Absolutely! The DT-X71HX2 monitor is designed with a rack mount design for easy installation and organization, making it ideal for a studio or control room setting.

Does the DT-X71HX2 monitor compromise on quality due to its compact size?

No, despite its compact size, the DT-X71HX2 monitor does not compromise on quality or functionality. It's designed to offer a space-saving solution while still delivering high-quality visuals and performance.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JVC DT-X71HX2 Specifications

  • Display

    Two 7-inch LCD Panels (1024 x 768 pixels)

  • Aspect Ratio

    16x9 (4:3 adjustable)

  • Viewing Angle

    160deg.H
    160deg.V

  • Brightness

    400cd/m2

  • Contrast Ratio

    900:1

  • Inputs

    G/HD/SD-SDI w/ loop through, HDMI, Composite w/ loop through, L/R Audio
    Front panel 3.5mm earphone jack (for each display)

  • Power consumption

    Less than 15 watts

  • Power Requirement

    12VDC power supply via 4-pin XLR connector
    120VAC adapter provided

  • Dimensions

    483x132x80 mm / 19.01x5.19x3.14"

  • Weight

    2.5 kg / 5.51 lbs

0 Accessories for JVC DT-X71HX2 7" Rack Display Monitor with HDMI, 3G/HD/SD-SDI Input, Picture Rotate and Flip

About JVC DT-X71HX2

Let the DT-X71HX2 7" Rack Display Monitor revolutionize your video display experience. This high-quality, durable monitor is more than just a device; it's an innovative solution for all your broadcasting needs. With its wide connectivity options including HDMI and 3G/HD/SD-SDI input, this reliable monitor ensures seamless integration with your existing equipment.

Designed with a high resolution of 1024 x 768, the DT-X71HX2 delivers clear, detailed images that enhance your viewing experience. Its 7" LCD display is not only user-friendly but also provides a crisp, vibrant display that brings your visuals to life.

One of the standout features of this monitor is its ability to rotate and flip the image. This innovative feature allows for versatile viewing, ensuring you get the perfect angle every time.

The DT-X71HX2 is not just a monitor; it's a rack-mountable solution designed for easy installation and organization in a studio or control room setting. Its compact size and rack mount design make it an ideal choice for professionals seeking a space-saving solution without compromising on quality or functionality.

In summary, the DT-X71HX2 7" Rack Display Monitor is a reliable, high-quality device that offers wide connectivity options, high-resolution display, and innovative features like picture rotate and flip. It's the perfect tool for any control room or studio setup, designed to enhance your broadcasting experience.

JVC DT-X71HX2 Features

  • Fits standard 19-inch EIA rack (3RU), +30deg. tiltable
  • Underscan / overscan, safe area marker
  • Zoom-in functionality (pix to pix)
  • Image flip
  • Front Tally lights (via RJ-45 connectors)
  • Easy menu-driven setup

Key Features

  • High-resolution 7" LCD display for clear, detailed visuals
  • Wide connectivity options including HDMI and 3G/HD/SD-SDI input
  • Innovative picture rotate and flip feature for versatile viewing
  • Durable, reliable design ideal for broadcasting environments
  • Rack-mountable for easy installation and organization in studios or control rooms
  • Compact design offering a space-saving solution without compromising on quality or functionality
