The ProHD DT-X91C is an economical professional HDMI LCD monitor developed for field and studio applications. It utilizes an 8.9-inch LCD panel with native 1280x768 resolution and an 800:1 contrast ratio. The monitor features a wide 160° H/V viewing angle, HDMI and CVBS inputs with loop through.

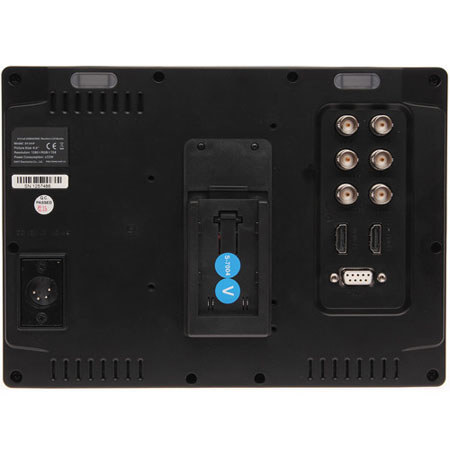

The DT-X91C features a 3.5mm earphone jack, image zoom-in, rotate and flip, user editable video title, and front and rear TALLY lights. It's powered via a 4-pin XLR 12V DC connector or V-mount/Gold-mount.
|Aspect Ratio||16:9 / 4:3|
|Color||16.77 million colors|
|Video Format HDMI||480I / 576I / 480P / 576P
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
|Working Voltage||DC12V, or Battery 6.5V-17V|
|Environment||Operating Temperature: 32~104°F (0~+40°C)
Storage Temperature: 5~140°F (-15~+60°)
|Dimensions||7.6 x 5.5 x 1.9" (192 x 139 x 47mm)|
|Weight||1.2 lbs (550g)|
